Summary of Contents for DJ-Tech MIX FREE
-

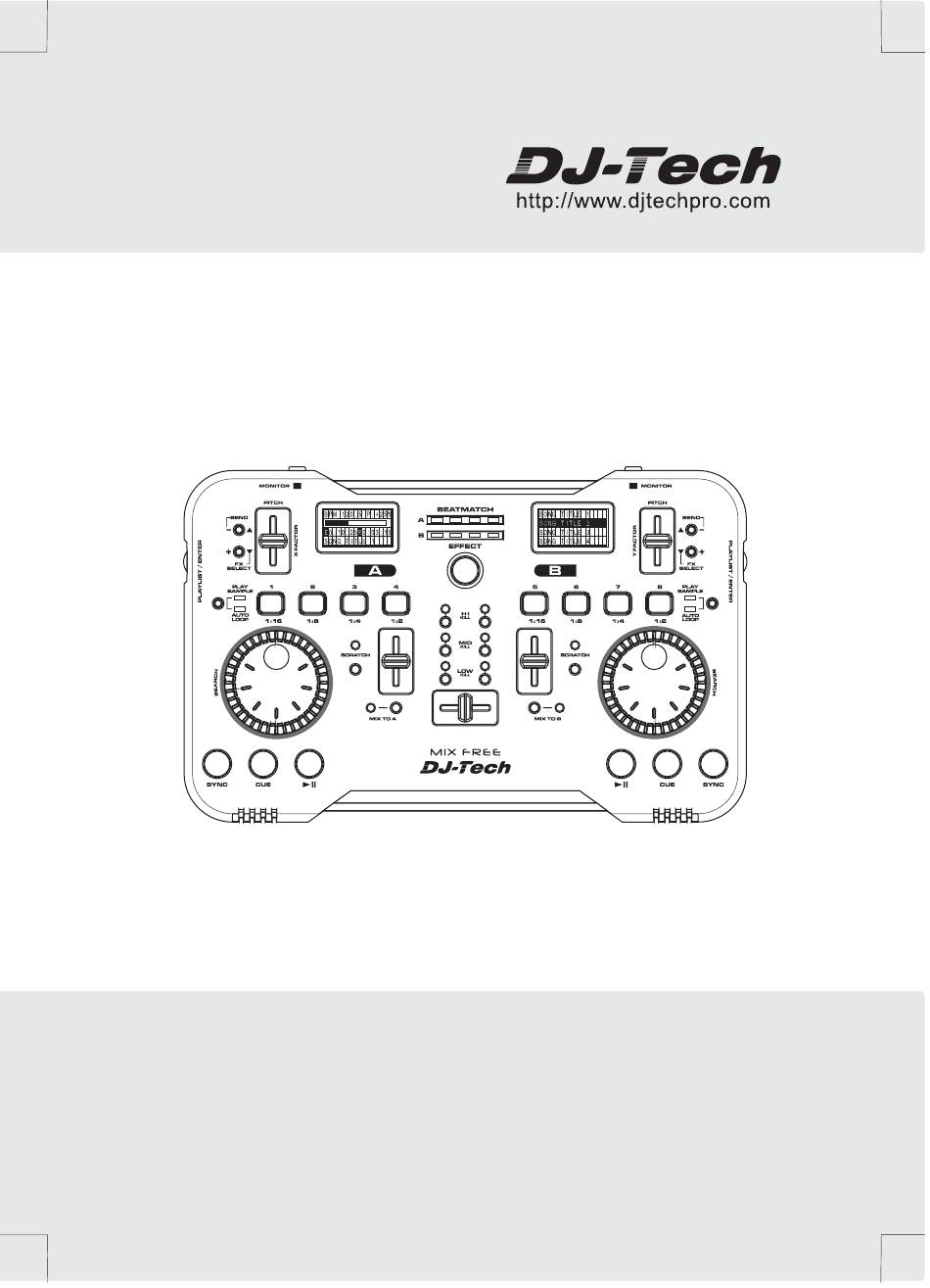

Page 1: User Manual
MIX FREE PC MEDIA CONTROLLER USER MANUAL... - Page 2 MIX FREE MAP CHANNEL 1 (LEFT DECK) Note-on message MIDI Command IN MIDI Command IN BUTTONs (Pushed) (Release) MONITOR 09 90 10 7F 09 90 10 00 BEND - / FX 09 90 11 7F 09 90 11 00 SELECT UP...
- Page 3 MIX FREE MAP CHANNEL 1 (LEFT DECK) Control change message CTRL MIDI Command MIDI Command PITCH / X FACTOR 0B B0 30 7F(Maximal) 0B B0 30 00(Minimal) VOLUME FADER 0B B0 31 7F(Maximal) 0B B0 31 00(Minimal) PLAYLIST 0B B0 40 41(Forward)
- Page 4 MIX FREE MAP CHANNEL 2 (RIGHT DECK) Note-on message MIDI Command IN MIDI Command IN MIDI Command OUT MIDI Command OUT BUTTONs LEDs (Pushed) (Release) (LED ON) (LED OFF) MONITOR 09 91 10 7F 09 91 10 00 PLAY SAMPLE...
- Page 5 MIX FREE MAP CHANNEL 2 (RIGHT DECK) Control change message CTRL MIDI Command MIDI Command PITCH / Y FACTOR 0B B1 30 7F(Maximal) 0B B1 30 00(Minimal) VOLUME FADER 0B B1 31 7F(Maximal) 0B B1 31 00(Minimal) PLAYLIST 0B B1 40 41(Forward)
- Page 6 MIX FREE MAP CHANNEL 3 (CENTER DECK) Note-on message Button MIDI Command (Pushed) MIDI Command (Release) EFFECT 09 92 10 7F 09 92 10 00 Control change message CTRL MIDI Command MIDI Command CROSS FADER 0B B2 30 7F(Maximal) 0B B2 30 00(Minimal)
-
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use the apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 8: Product Description

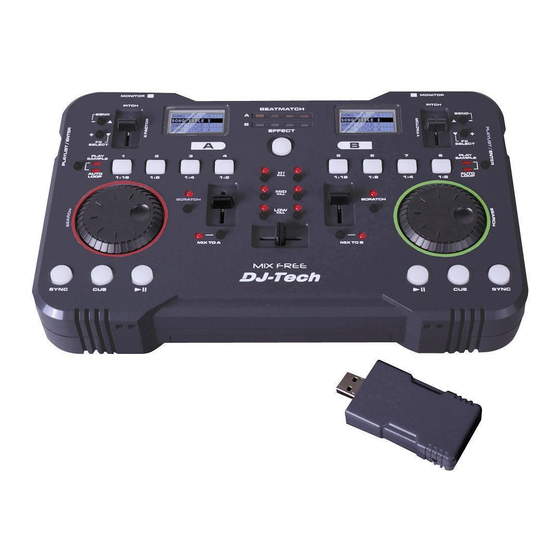

PRODUCT DESCRIPTION Mix-Free is a DJ software controller for DJs who yearn for the control they left behind when they switched from a traditional mixer to the multi–processing power of laptop DJing. Mix-Free is a fully class–compliant USB MIDI device and is the ultimate tool for any performing computer DJ seeking total control of their software. -
Page 9: Specification
8. The MIDI data created with functions can be manually set with the software, if the software does not support the MIDI LEARN function. Please refer to the software's manual for further instructions. SPECIFICATION MODEL MIX FREE PRODUCT PC MEDIA CONTROLLER POWER SOURCE Battery powered－C size, 1.5V×2 DIMENSIONS 256.5(W) x 161.65(D) x 44(H) mm...
