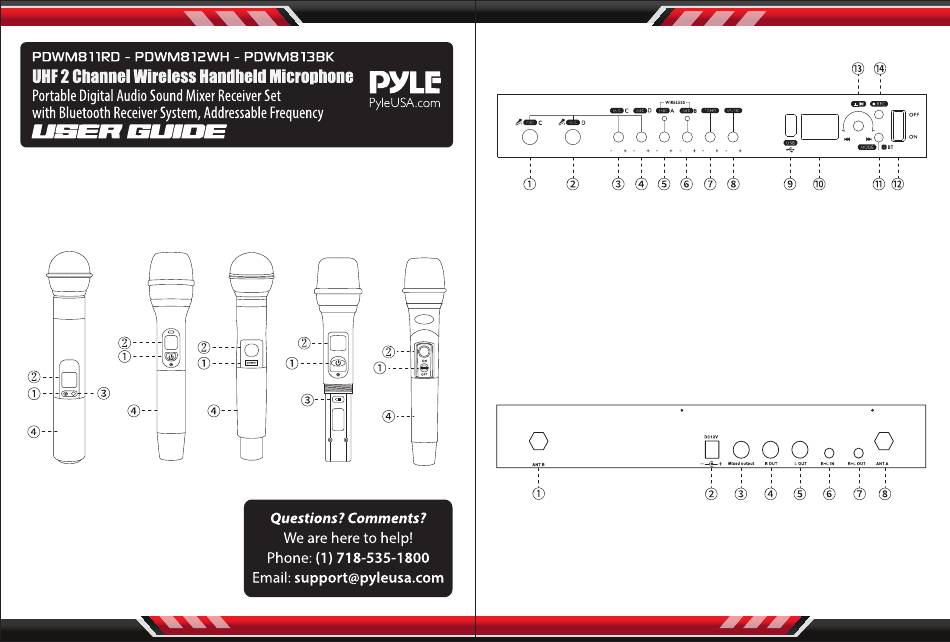

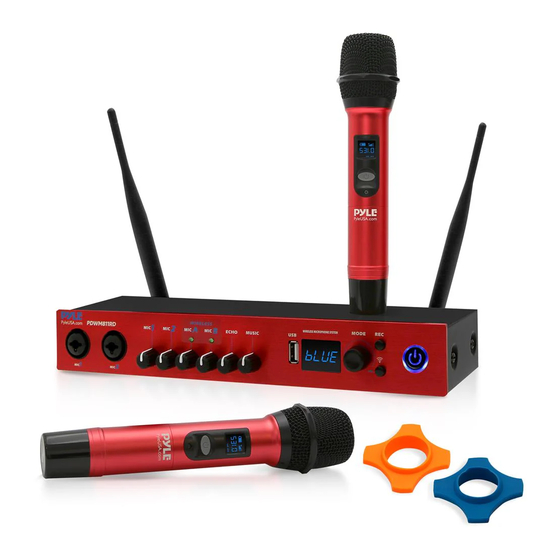

WIRELESS HANDHELD MICROPHONE SYSTEM SPECIFICATION

Please read carefully before use and keep for future reference.

TRANSMITTER

1. Power switch
2. Display screen
3. Frequency selective buttons
4. Battery case
1
www.PyleUSA.com

RECEIVER

Front Panel
1. C/6.35 Audio line input port
2. D/6.35 Audio line input port
3. Volume adjustment for channel C
4. Volume adjustment for channel D
5. Volume adjustment for channel A
6. Volume adjustment for channel B
7. Echo adjustment
8. Music Volume adjustment
Back Panel
1. Antenna for B channel
2. DC12V Power supply
3. 6.35 Mixed output port
4. The right track 6.35 input port
9. USB 2.1 input port
10. MP3 module display
11. Switch button (Bluetooth/MP3)
12. Power switch
13. Multi function button
(Pause/Play/Next/Last)
14. Recording Button
5. The left track 6.35 input port
6. Stereo 3.5 output port
7. 3.5 Audio input port
8. Antenna for A channel
www.PyleUSA.com
2
