Pyle PDWMU105 User Manual

PDWMU105
Professional UHF Handheld Microphone
Pro Audio Wireless Mic Transmitter System
with Adapter Receiver, Selectable Frequency

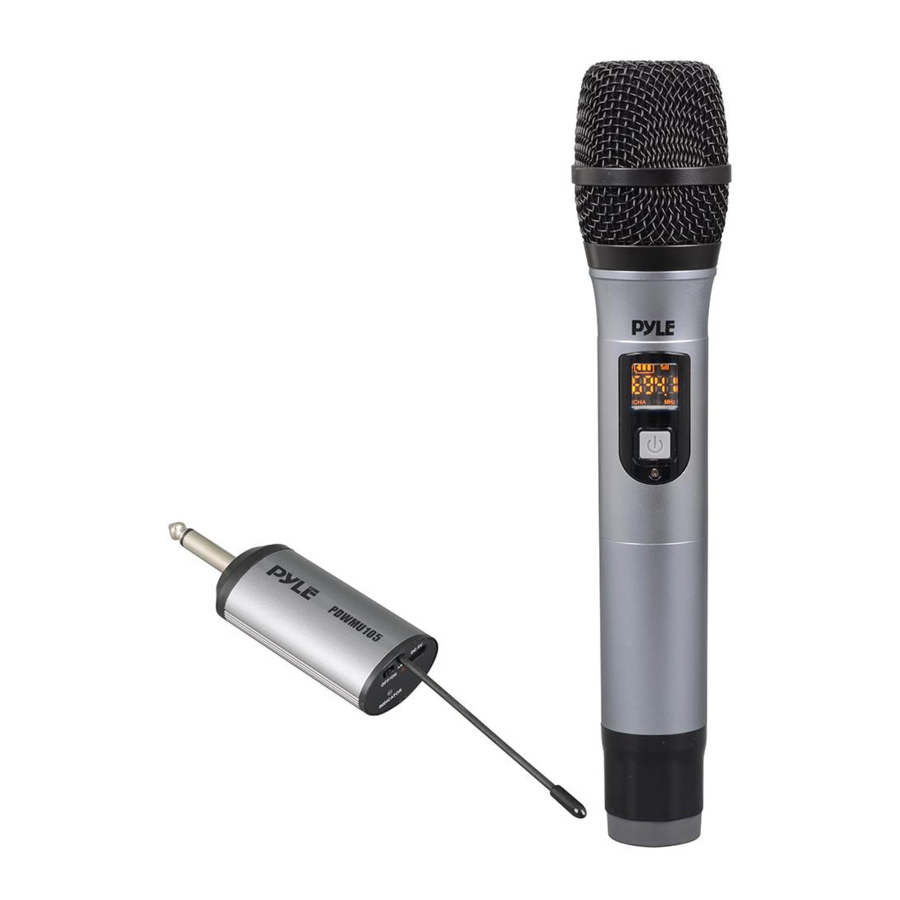

RECEIVER AND TRANSMITTER INTRODUCTION

1
1

HOW TO USE?

1. Turn ON/OFF switch to ON, the LED indicator is lit. Then insert the 1/4"(6.3mm) Input Jack into audio input
socket.
2. Install 2PCS AA batteries in battery compartment. Make sure the polar is correct.
3. Turn ON the transmitter, the Frequency Display is bright. Then you could use this system.
4. When the receiver is out o battery, please use the rechargeable cable to charge the built-in battery of the
receiver.
Notice:
1. If there is any noise, distortion, dead points when using this system, it may be caused by low battery, please
replace with new battery.
2. After stop using it, please turn the switch to "OFF".
3. If you don't use this system for long time, please take out the batteries.

FREQUENCY MATCHING:

If there are multiple sets of products in the same environment, crosstalk may occur (same frequency and ID).
It can be completely solved after matching operation according to the following steps.
1. Turn OFF the transmitter and receiver at the same time.
2. Transmitter: Press and hold ON/OFF switch and Frequency Selection Button at the same time for about 4
seconds, then the Frequency Display will ash
3. Receiver: Turn ON the power switch of the receiver, then the RF LED indicator ashes four times.
4. Transmitter: Shortly press the Frequency Selectable Button to exit the matching operation.
www.PyleUSA.com
2
4
3
2

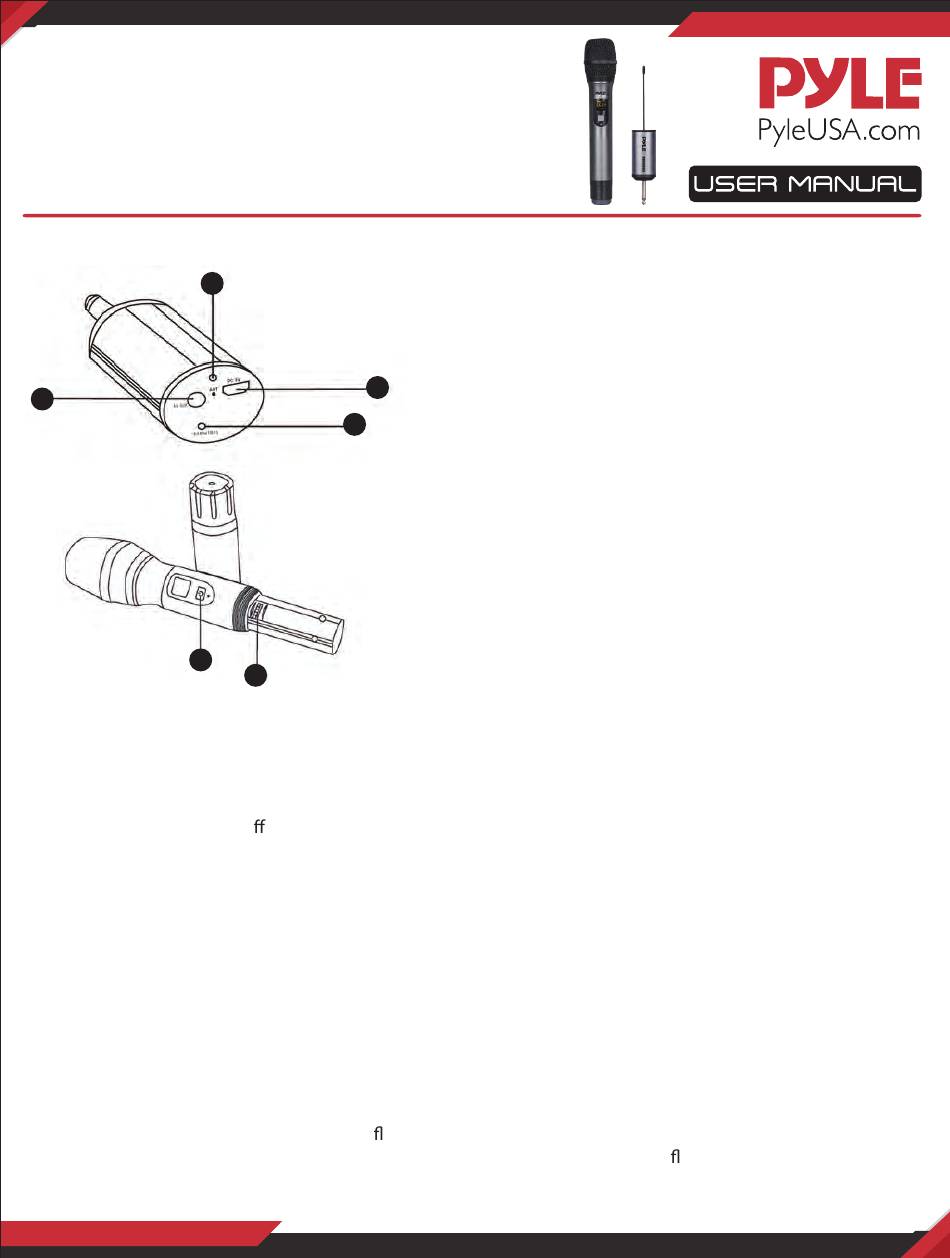

1. ON/OFF sweitch
2. Antenna
3. RF LED indicator
4. DC 5V rechargeable power input
1. ON/OFF switch
2. Frequency Selection Buttom
3. Frequency Display
4. Battery Compartment
