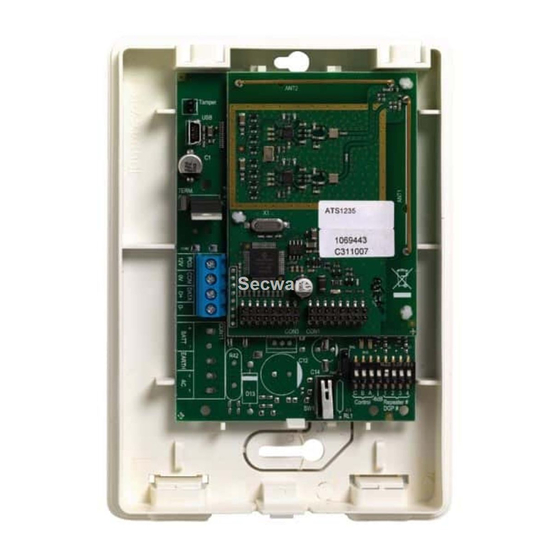

ATS1235 Advanced Wireless DGP on 868 MHz
AM Installation Sheet
EN
1
TAMPER
USB
TERM
12V
0V
D+
CON3
D-
3
METAL
