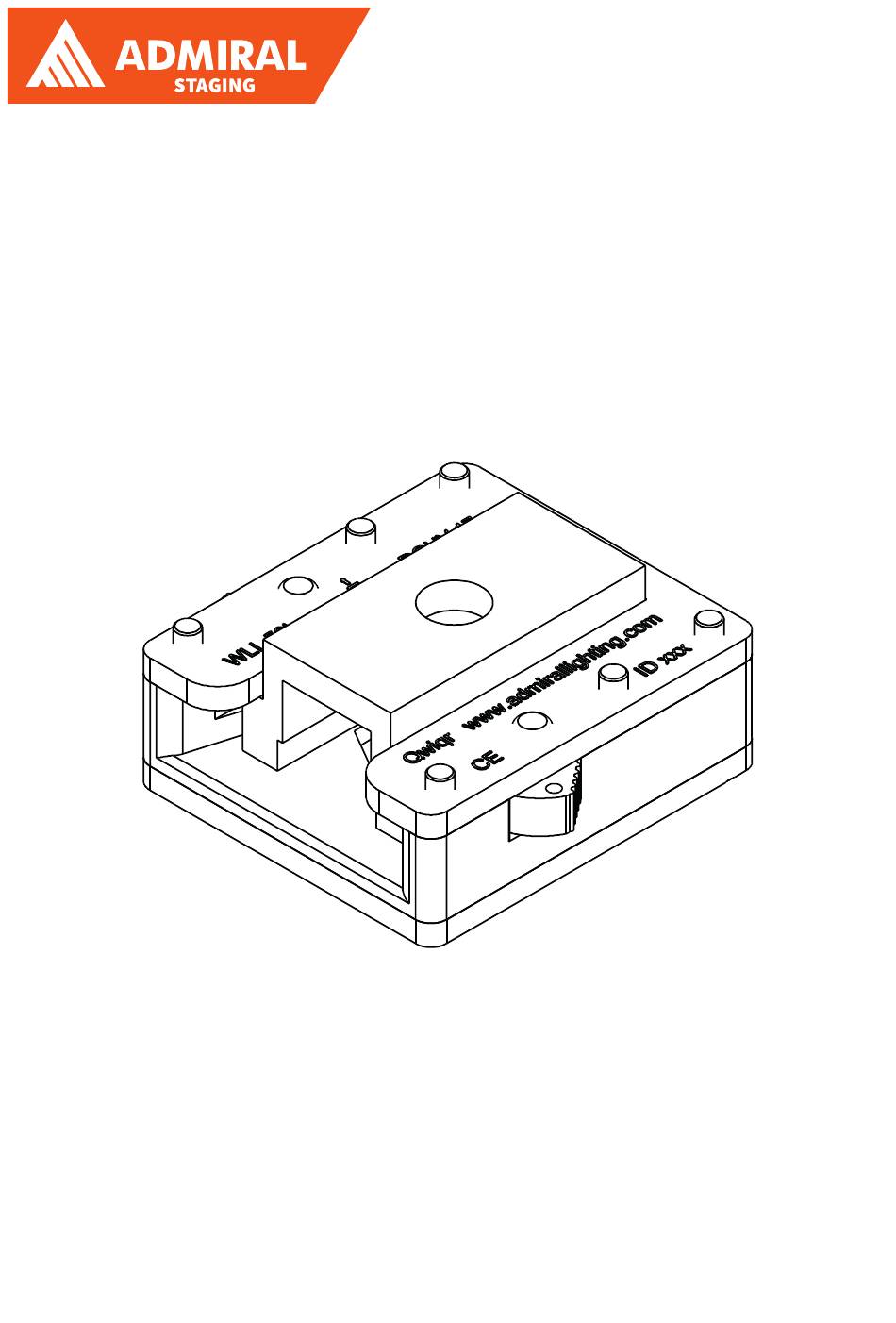

- Page 1 QWIQR QWIQR ORIGINAL USER MANUAL Manufacturer: Rolight Theatertechniek B.V. Josink Kolkweg 10 7545 PR Enschede , The Netherlands Phone (+31)53 432 06 44 info@rolight.nl April 2023 www.rolight.nl SKU: RIHASL30 Distributed by ADMIRAL...
- Page 2 4. TECHNICAL DATA & LOADCHART Weight 0.176Kg DGUV regulation 17 Regulations for stages and studios. (Formerly known as BGVc1) Applicable standards: 2006/42/EC Machinery directive DGUV regulation 17 Regulations for stages and studios (Formerly known as BGVc1) DGUV Information 215-313 Safety at productions and events for television, radio, film, theatre, exhibitions: Loads above persons (Formerly known as BGI 810-3) CWA 15902-1...
- Page 3 4.1 IDENTIFICATION Qwiqr luminair part: code RIHASL42 Qwiqr clamp part: code RIHASL44 spring block engraving locking switch M10 bolt mounting hole...
- Page 4 Inspect the Qwiqr before every use. If damaged, mark the item clearly and take out of service • Use M10 Grade 8.8 bolts and self-locking nuts to connect the load to the Qwiqr as well as connecting the hook part of the Qwiqr to the lamp hook / clamp. •...
- Page 5 . 6. DISASSEMBLY INSTRUCTIONS Step Step Step Push the clamp part Press both locking The clamp part can now against the spring block. switches at the same time. slide out of the Qwiqr.
