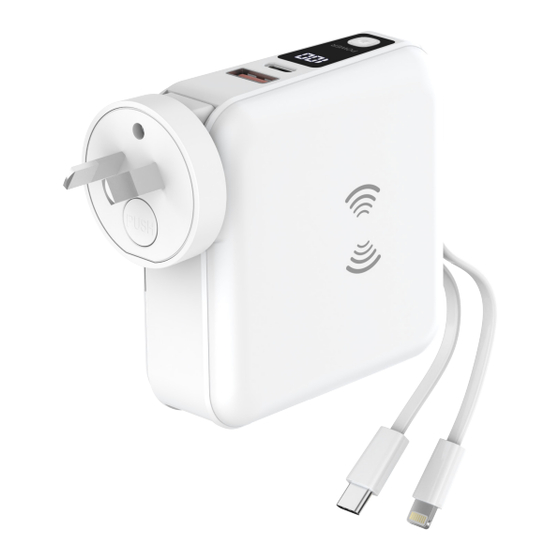

Bauhn ATAPB-0224 User Manual

Have you got everything?

A
A. Travel Adapter Power Bank
B. 4 x Travel plug adapters
C. User Guide
D. Warranty Certificate
E. Travel Kit
F. Carry Strap
Install the travel adaptor
plug and slide onto the pins
located at the corner of the
Power bank.
Gently push and slide to
remove and change plugs

Operation

Power on/off
• Press the power button to turn on the power bank, the LED display
will light up and show the remaining power.
• Press the power button twice to turn off the power bank.

Charging your devices

• Unfold the USB cable (attached), either USB-C or lightning cable
and connect to the port on your device.
• You can also use a separate USB-A or USB-C cable (not included) to
charge your mobile devices.
• The LED display shows the power remaining as a percentage from
0%-100%. When the remaining power drops lower than 5%, the LED
display starts blinking to display the low power warning.
• When the USB-A or USB-C fast charging mode is activated, the LED
indicator will light up red.
• When charging multiple devices at same time, the power bank will
exit fast charging mode and it will share charging power to your
connected devices. The red LED indicator will turn off.

Wireless Charging:

When the power bank is switched on, the
LED indicator will light up green which
indicates the wireless charging function is
activated.
Place your smart phone facing up on the wireless charging pad. Make
sure your phone is correctly aligned and has started charging.
Note: If the LED indicator is not green, the power bank may have
entered protection mode. This is due to other devices being
connected to USB-A or USB-C ports in fast charging mode. Press the
power button to quit that fast charging mode to activate the wireless
charging.
If the LED indicator is flashing green, this means an error has occurred.
Either the smart phone does not support wireless charging or other
objects are obstructing the wireless charging pad.
Note: The power bank will automatically quit the wireless charging
mode in 30s to save power if the wireless charging load is too low.
Press the power button again to activate the wireless charging
function.

Charging your power bank

• Plug the travel adapter power bank into either mains power or the
USB-C input until fully charged.
• Charge for 3-5 hours to fully charge the power bank before use.
Note: Charging time is about 3 hours when using USB-C fast charging
input. It is about 5 hours when using mains power input.
• When the USB-C fast charging input activated, the LED indicator
will light red.
• If you connect devices to the power bank while it is charging. Power
will be shared and charging time will be extended.
Inputs
AC Input
B B

Control and Buttons

A. Kickstand retracted
B. Kickstand extended
A
C. USB-C Cable
D. Lightning Cable
E. Lanyard Attachment
F. On/Off Button
USB-C Input
Travel Adaptor Power Bank
D
C
C
D
Travel Adaptor
Power Bank
B
G. LED Display (battery capacity)
H. LED Indicator (power bank status)
I. USB-C input/output
J. USB-A output
K. AC input Plug
L. Wireless Charging
Outputs
USB-A Output
USB-C Cable Output
User Guide
Model: ATAPB-0224
E
F
E I J K
G H
Charging
USB-C Output
Lightning Cable Output
F
L
Discharging
Wireless Output
