Installing Serial ATA hard disks
The motherboard supports Serial ATA hard disk drives. For optimal performance, install
identical drives of the same model and capacity when creating a disk array.
To install the SATA hard disks for a RAID configuration:
1.
Install the SATA hard disks into the drive bays.
2.
Connect the SATA signal cables.
3.
Connect a SATA power cable to the power connector on each drive.
5.1.3
Intel
®
To enter the Intel
Rapid Storage Technology in UEFI BIOS:
®
1.
Enter the BIOS Setup during POST.
2.
Go to the Advanced menu > PCH Storage Configuration, then press <Enter>.
3.
Set the SATA Controller Mode Selection item to [RAID Mode].
4.
Go to the Boot menu > CSM (Compatibility Support Module) > Launch CSM, then
set the item to [Disabled].
5.
Save your changes and exit the BIOS Setup, then enter the BIOS Setup again.
6.
Go to the Advanced menu > Intel(R) Rapid Storage Technology, then press <Enter>
to display the Intel
Refer to Chapter 4 for details on entering and navigating through the BIOS Setup.
Due to chipset limitation, when SATA ports are set to RAID mode, all SATA ports run at
RAID mode together.
ASUS ESC300 G4

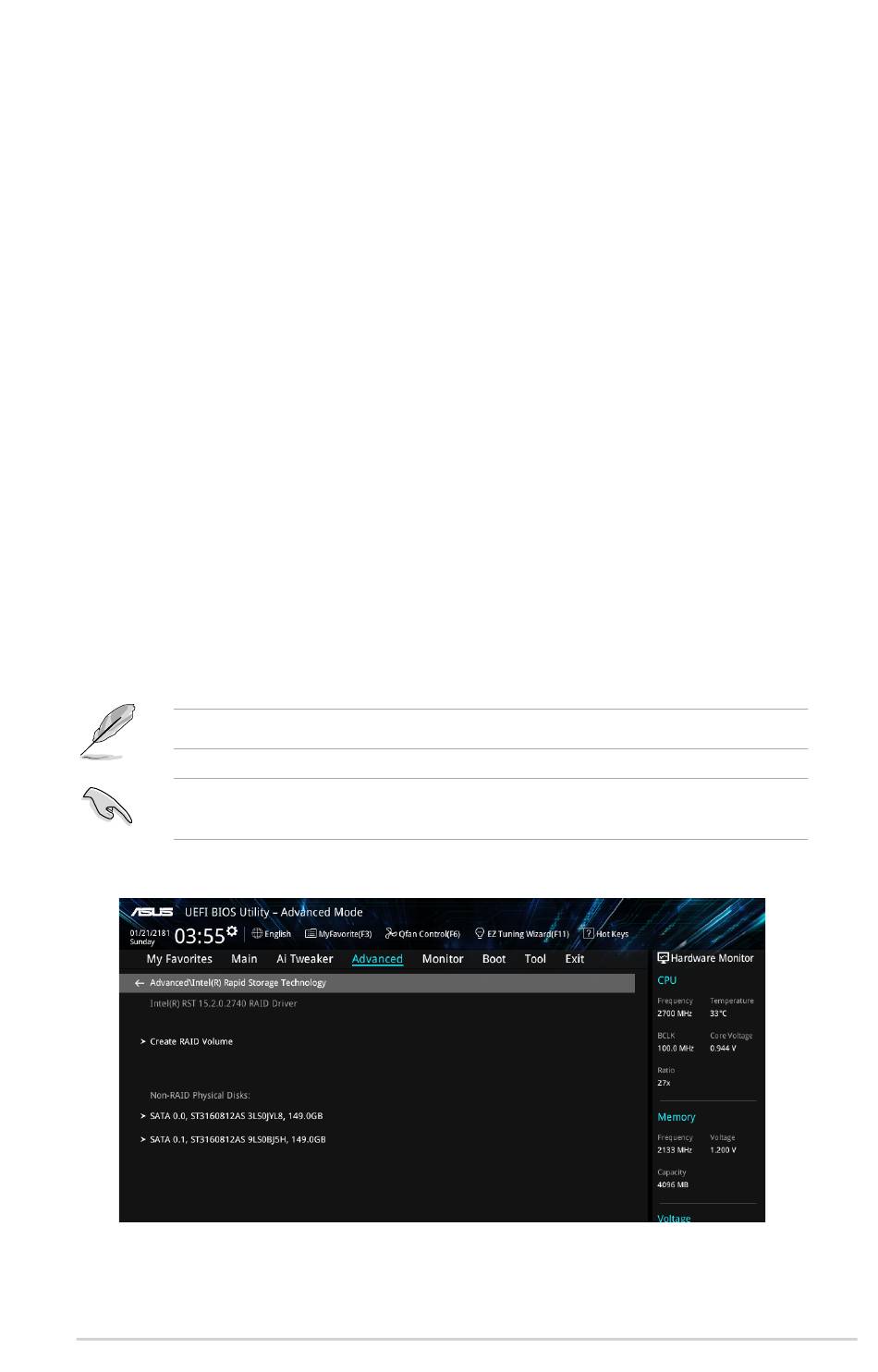

Rapid Storage Technology in UEFI BIOS
Rapid Storage Technology menu.
®
