Clear-Com FreeSpeak II Quick Start Manual

Quick
Start
Guide

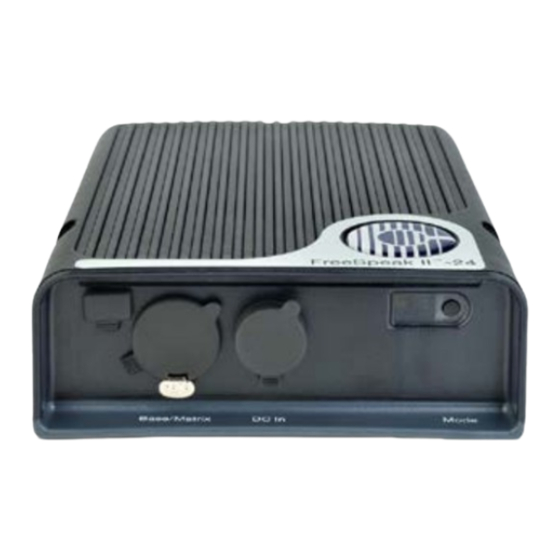

A FreeSpeak II (FS II) transceiver/antenna forms the transmission link between the FS II beltpacks and the
FS II Base station or Matrix card. You can use multiple units to create larger, customized coverage areas. It
communicates with the following components:
• The FSII Base station, either directly or via a PD2203 splitter
•
An Eclipse HX matrix via the Eclipse E-Que card rear pane
For more information about the system see the FreeSpeak II User Guide.
Note:

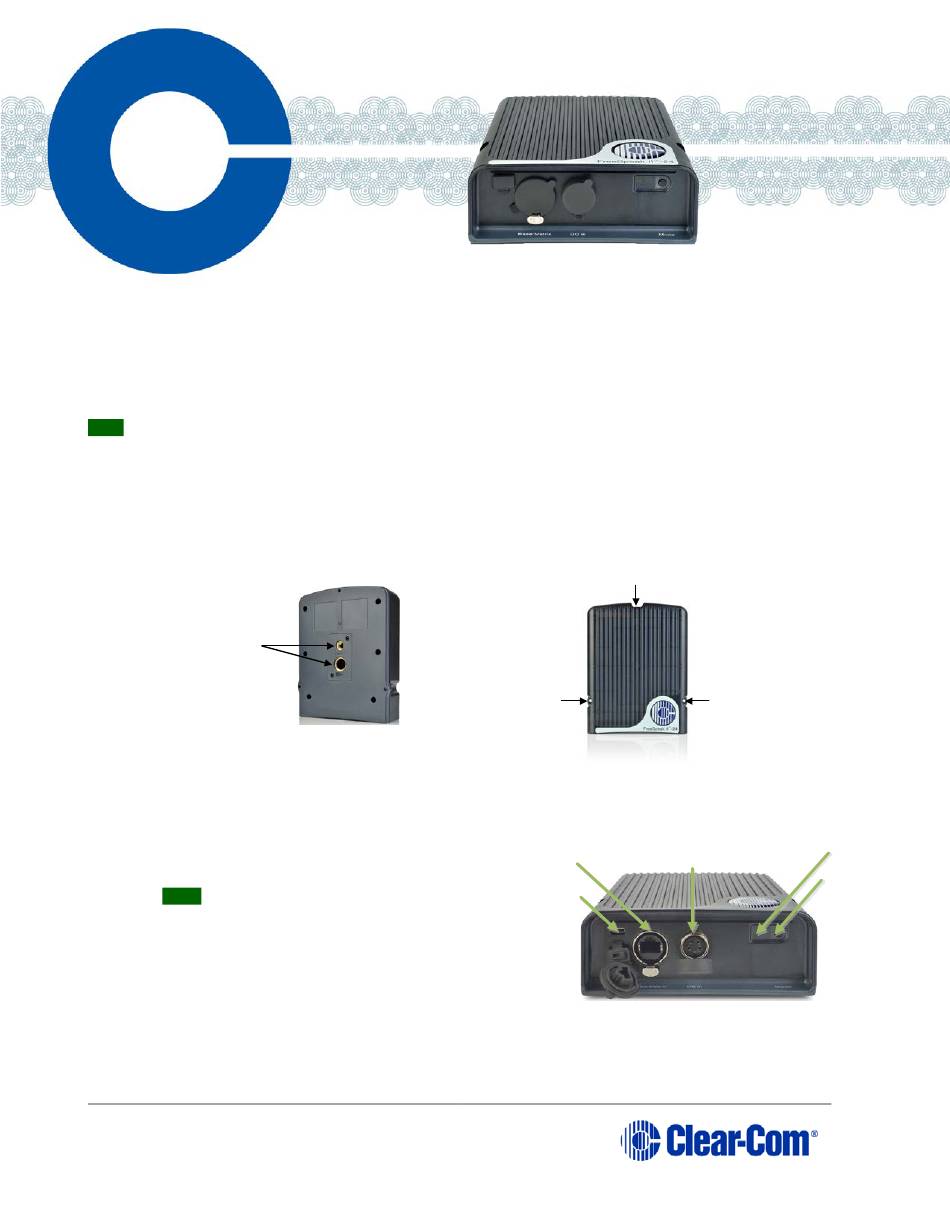

Installing the transceiver/antenna

The unit has two methods of fixing:
Three screw points for mounting on a flat surface (see dimension drawing on next page).
•
Two microphone stand connectors, 3/8 in and 5/8 in.
•
Microphone stand
connectors (3/8
and 5/8 inch)

Connecting the transceiver/antenna

C
1) onnect the base/matrix connector to a Base
station or splitter using Ethernet shielded cable
(CAT5/5e/6).
Note: You can also connect the antenna to
an Eclipse HX matrix. For more
information, see the Eclipse HX
documentation.
2) Ensure that the power supply is connected to
the DC power connector. The LED indicates
that power is present. This will be green on 1.9
GHz devices, and blue on 2.4 GHz devices.
3) Ensure that the amber data status LED is lit
and is not flashing.
The transceiver/antenna is now ready to use
Page 1 399G109 Rev C
FreeSpeak II™ transceiver/antenna
Mounting holes
.
08/07/15
l
either directly or via a PD2203 splitter
Mounting holes
Base/matrix
connector
DC power connector
USB
connector
Mounting holes
Status
Mode
