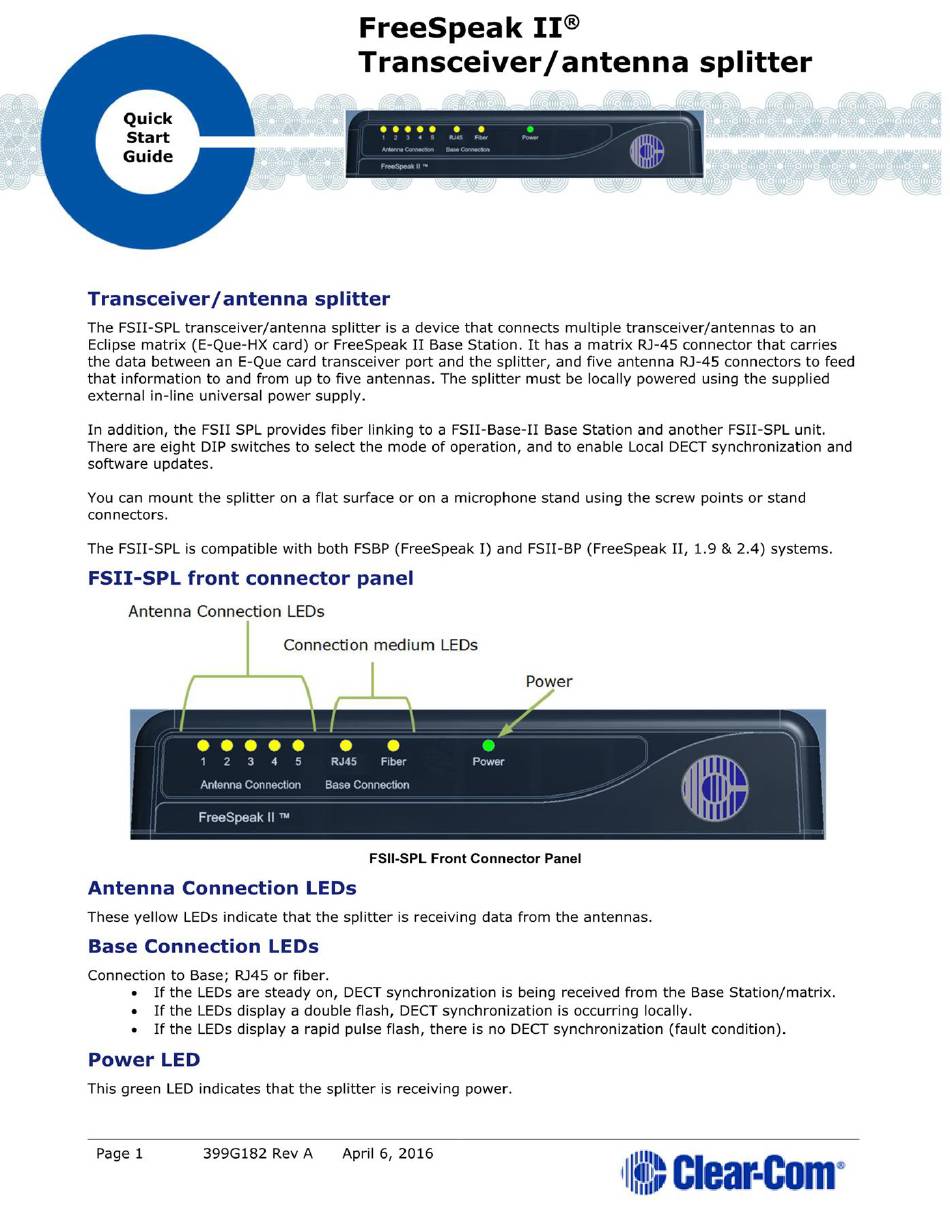

Clear-Com FreeSpeak II Quick Start Manual

reeSpeak
II®
Transceiver/antenna
splitter
Transceiver/antenna
splitter
The
SII-SPL transceiver/antenna
splitter
is
a device that
connects
multiple
transceiver/antennas
to
an
Eclipse
matrix
(E-Que—HX
card) or
reespeak
11
Base
Station.
It
has
a
matrix RJ—45
connector
that carries
the data
between
an
E-Que
card transceiver port
and
the
splitter,
and
five
antenna RJ-45 connectors
to
feed
that information
to
and from up
to
five
antennas.
The
splitter
must
be
locally
powered
using
the supplied
external
in-line
universal
power
supply.
In addition,
the
SII
SPL
provides
fiber linking to
a SII-Base-II
Base
Station
and another SII~SPL
unit.
There
are eight
DIP
switches
to select
the
mode
of operation,
and
to
enable
Local
DECT
synchronization
and
software updates.
You
can
mount
the
splitter
on
a
flat
surface or
on
a
microphone
stand using the screw
points or
stand
connectors.
The
SII-SPL
is
compatible
with both
SBP
( reespeak
I)
and SII-BP
( reespeak
II,
1.9
&
2.4)
systems.
SII-SPL
front
connector panel
Antenna
Connection
LEDs
Connection
medium
LEDs
1
2 3
4 5
RJ45
iber
Power
Anienna Connection Ease Connection
reespeak
ll
"'
SII-SPL ront
Connector
Panel
Antenna
Connection
LEDs
These
yellow
LEDs
indicate
that the
splitter
is
receiving data
from
the antennas.
Base Connection LEDs
Connection
to
Base;
RJ45
or
fiber.
-
If
the
LEDs
are steady
on,
DECT
synchronization
is
being received
from
the
Base
Station/matrix.
. lf
the
LEDs
display a
double
flash,
DECT
synchronization
is
occurring
locally.
. lf
the
LEDs
display a rapid pulse
flash,
there
is
no
DEC
synchronization
(fault
condition).
Power LED
This
green
LED
indicates that the
splitter
is
receiving
power.
Page
1
3996182
Rev
A
April 6,
2016
|
