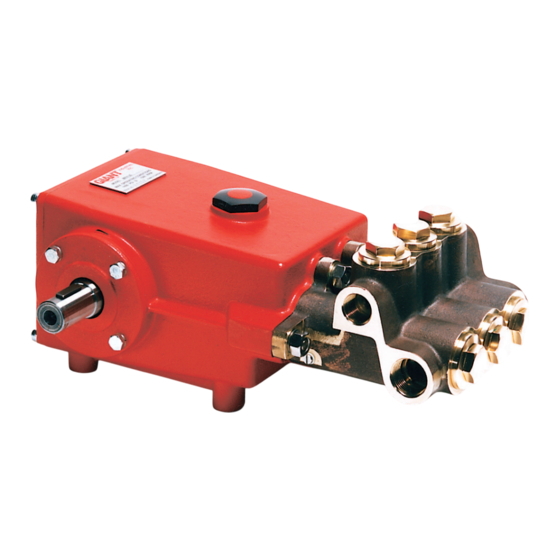

- Page 1 Triplex Ceramic Models Plunger Pump Operating Instructions/ Repair and Service Manual MP4130-3100 & MP4135-3100 Contents: Installation Instructions: page 2 Pump Specifications: page 3 Exploded View: page 4 Parts List / Kits: page 5 Repair Instructions: page 6-10 Torque Specifications: page 10...
-
Page 2: Fields Of Application
When the pump is in operation, the open shaft end For information on intermittent operation and must be covered up by shaft protector (21), the calculating of the performance data, see Giant driven shaft side and coupling by a bell housing or Industries Plunger Pumps Assembly Instructions. - Page 3 Fix the valve casing (43) by tightening the nuts (50) removed. evenly and crosswise to the required torque. If required, supplementary assembly instructions can be requested from Giant Industries. MP4130-3100 and MP4135-3100 Series Torque Specifications Position Thread Lubrication Info. Torque Amount 18 ft.-lbs. (25 Nm) 1/2”...
- Page 4 MP4130-3100 & MP4135-3100 Exploded View...
-
Page 5: Valve Kit
MP4130-3100 & MP4135-3100 Spare Parts List ITEM PART # DESCRIPTION QTY. ITEM PART # DESCRIPTION QTY. 06100 Crankcase 06136 Flinger 13000 Oil Filler Cap Assy 07260 Crankcase Oil Seal 07243 Cover, Crankcase 07267-0100 Snap Ring 07244 O-Ring, Crankcase Cover 07271... - Page 6 Replace plungers Inlet pressure too high Reduce inlet pressure High Crankcase Wrong Grade of oil Giant oil is recommended Temperature Improper amount of oil in crankcase Adjust oil level to proper amount Preventative Maintenance Check-List & Recommended Spare Parts List...
- Page 7 MP4130-3100 & MP4135-3100 DIMENSIONS - Inches (mm) For mounting on coupling bell...
- Page 8 1. Five (5) years from the date of shipment for all pumps used in portable pressure washers with NON-SALINE, clean water applications. 2. Two (2) years from the date of shipment for Giant pumps used in car wash applications. 3. One (1) year from the date of shipment for all other Giant industrial and consumer pumps.
