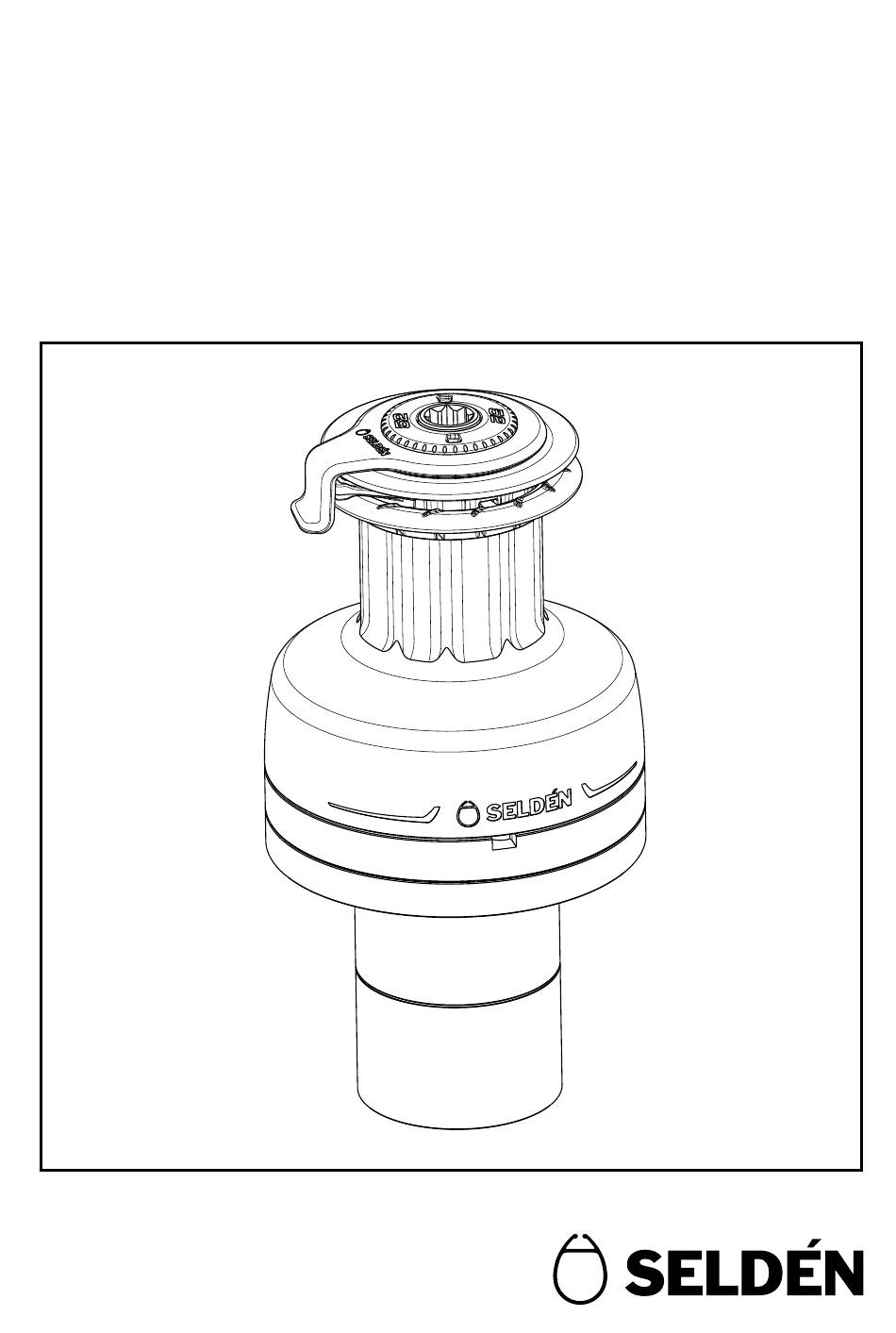

- Page 1 597-490-E 2023-12-20 Electric self-tailing winch E40, E46, E52, E60 & E66 Manual for installation and operation...
-
Page 2: Table Of Contents
Contents Page Introduction………………………………………………………………..3 Seldén Series-E winches, E40-E66 .……………..………………..... 5 2.1 Included parts……………………………………………………………... 5 2.2 Optional parts …………………………………………………………….. 6 2.3 System presentation …………………………………………….... 7 2.4 Technical specification …………………………………..……………... 8 Installation ………………………………………………………………..10 3.1 Installation preparation ………………………………………………... 10 3.2 Winch orientation ......………………………………..11 3.3 Line entry angle ..........…………..…………... -
Page 3: Introduction
Congratulations on the purchase of your new electric self-tailing winch or motor pack upgrade. This manual covers installation and operating instructions for E40, E46, E52, E60 and E66 electric self-tailing winches. The model designation for the winch is found on the top cover of the winch. - Page 4 Choosing the correct version of E-winch for your boat: The key to a safe and properly working installation is correct dimensioning in relation to the boat size the products shall be used on. Seldén provides dimensioning guidelines in catalogues, leaflets and on the website. If there are any questions about selecting the right product, please consult an authorized Seldén dealer. All dealers are listed at www.seldenmast.com and divided in categories describing their competence.
-
Page 5: Seldén Series-E Winches, E40-E66
597-512 597-490-E 597-489-E 2023-10-31 2023-11-29 Manual for installation and Manual 2-speed self-tailing winches Electric self-tailing winches E40, E46, E52, E60 & E66 S30, S40, S46, S52, S60 & S66 operation. E-Winch / Motor pack 597-490 S-Winch 597-489 Winch tool 473-010... -
Page 6: Optional Parts
Optional parts Description Item No. Illustration 10” Race GRIP winch 474-501-10 handle 8” Race GRIP winch 474-401-10 handle 10” STANDARD winch 474-301-10 handle 8” STANDARD winch 474-201-10 handle Seldén lubrication 312–501 grease Pawl oil (50 ml) 312-709-01... -
Page 7: System Presentation
2.3 System presentation Power supply and SEL-Bus system The E-winches are used together with the Seldén Power supply and SEL-Bus system. The E-winch is connected to a motor control unit (MCU), which enables communication with the power supply unit and push buttons. The E-winch is either connected to an existing SEL-Bus system (only requiring an additional MCU, push buttons and SEL-Bus converter) or to a new installation. -
Page 8: Technical Specification
2.4 Technical specification Main components Top cover Self-tailing arm Roller bearings Locator bracket Self-tailer jaws Line stripper Winch base assembly Drum assembly Motor pack... - Page 9 Dimensions and technical data ØD Ød Model Height Protrusion Base Drum Suitable Power ratio Weight Maximum Safe Electric below above Ø (ØD) Ø Line (kg) line speed Working Cut-off mounting deck (H) (mm) (Ød) dimensi- (m/min) Load load High surface (mm) (mm) (SWL) (kN)
-
Page 10: Installation
3 Installation Installation of a Seldén winch must be carried out by a competent installer who has read and understood this installation manual, the purpose and function of the winch and has checked the loads, winch sizing and moun- ting requirements prior to installation. Before installation, verify that installation can be carried out without damaging the interior of the boat. -
Page 11: Winch Orientation
Winch orientation To allow for the best performance and longevity of the winch the mounting orientation must be correct with regards to the direction of the line. The correct orientation is shown in the figure below. If the winch has multiple uses, such as combined halyard and spinnaker trim- ming, the winch should be position with regards to the highest load. -
Page 12: Line Entry Angle
Line entr y angle To minimize the risk of override, the line should enter the winch in accordance with the picture below. 5-10° Fasteners The winch could either be mounted by through deck screws with washers and nuts or, if the boat has purpose made metal plates laminated into the deck structure, be threaded into these. -
Page 13: Mounting The E-Winch
Mounting the E-winch Template E40 Template E40 Use the supplied drilling template to mark the center of the large hole. Drill the large hole, Seldén recom- mends using a ø 102-105 mm hole saw to make the hole. Feed the cables and the motor pack through the center hole. - Page 14 Remove the drum. Make sure the roller bearings remain on the winch base. Put the S-winch base on top of the motor pack. Orientate the winch assembly according to section 3.2 Winch orientation. Remove the winch base without changing the orientation of the motor pack.
- Page 15 Mark the fastening holes using the motor pack as a template. See table in section 3.4 Fasteners, for marking drill recommendations. SEALANT Remove the motor pack and drill the holes through deck according to the intended fastening method. Set table in section 3.4 Fasteners, for drill size recommendations.
- Page 16 Fit the motor pack to the boat with the fasteners still in position. When using through deck screws it is recommended to tighten the nut while holding the screws stationary. Fasten the winch base to the motor pack with the supplied fasteners.
- Page 17 Refit the drum, locator bracket and the self-tailing arm. Make sure that the line stripper is positioned in line with and held captive by the self-tailing arm. Adjust the self-tailing arm to have the line exiting the self-tailing jaws in the desired direction. Attach and tighten the top cover using the supplied winch tool.
-
Page 18: Adjusting The Self-Tailing Arm
Adjusting the self-tailing arm The self-tailing arm can be adjusted to feed the line into the cockpit. To do this, unscrew the top cover and lift the self-tailing arm. The self-tailing arm can now be rotated to allow the line to feed properly. Be sure to refit the self- tailing arm correctly in the grooves on the locator bracket. -
Page 19: Operation
4 Operation Electric operation Apply 2-3 turns on the winch drum and pull any slack in the line. Fewer or more turns may be required depending on the conditions. More turns on the winch drum increases the risk of override, when pulling the slack. Add more turns if required and then feed the line over the self-tailing arm and lock it in the self-tailing jaws. -
Page 20: Manual Operation
Manual operation The electric winch may be operated manually at any time, electrically powered or not. The manually operated winch will perform with full 2-speed manual function equiva- lent to the corresponding S-winch. Apply 2-3 turns on the winch drum and pull any slack in the line. Fewer or more turns may be required depending on the conditions. -
Page 21: Trouble Shooting
5 Trouble shooting Information on troubleshooting the SEL-Bus system is found in the SEL-Bus manual 597-275. Problem Problem cause Action 1. Line not properly seated 1. Check line seating in in self-tailing jaws. self-tailing jaws. Loss of self-tailing function 2. Too few turns on 2. -
Page 22: Service And Maintenance
6 Service and maintenance To maintain top performance and assure longevity for all parts of your self-tailing winch, it is recommended to occasionally rinse the winch with freshwater. Yearly S-winch maintenance The maintenance described below should be performed at least once every year, for heavily used winches (racing boats, charter boat, etc.) more frequent mainte- nance than once a year is recommended. - Page 23 Remove the two gear assemblies. Pay attention to the washers. Disassemble the gears and clean all parts thoroughly using white spirits. Inspect pawls and springs and replace if worn or damaged. When clean, apply pawl oil on the pawls and apply a thin layer of grease to the gear teeth and the cylindrical surface of the small hub.
- Page 24 Clean the gear on the inside of the drum and apply a thin layer of grease. Apply a thin layer of grease to the gear on the drive shaft. Refit drum washer, roller bearings, drive shaft and drum. Do not grease the roller bearings! Fit the locator bracket and the self-tailing arm.
-
Page 25: Yearly Motor Pack Maintenance
Remove ratchet hub (and shaft on E46-E66, do not remove the shaft on the E40). Clean all parts. Do not use any degreaser on the parts that are still contained in the base plate as this may cause damage to internal... - Page 26 Grease the shaft. Refit the ratchet hub and grease the gears generosly. Refit the top plate. Make sure that the top plate sits correctly and tighten the locking screw. Apply a thin layer of grease to the cylindrical surface of the pawl hub and to the gear teeth. Assemble the ratchet gear.
-
Page 27: Motor Pack, Extended Maintenance
Motor pack, Extended maintenance Seldén recommends that extended maintenance is performed every five years. The extended maintenance should only be carried out by a knowledgeable technician and is explained in the manual 597-990 Motor pack extended maintenance. Remove and refit the motor pack Make sure all power to the SEL-Bus system has been disabled. Discon- nect the motor pack cables from the winch MCU... -
Page 28: Spare Parts
7 Spare parts The following spare parts kits can be purchased for your Seldén winch: Description Art. No. Fastener Kit (For fitting S-winch to motor pack) 162-061-10R 4x M8x35 E46/E52 162-061-11R 5x M8x35 E60/66 162-047-10R 5x M10x40 Pawl and washer kit (for motor pack) 473-430-10R E46/E52 473-530-10R... - Page 29 Description Art. No. Locator bracket S30/40 473-412R S46/52 473-512R S60/66 473-612R Bearing kit S30/40 308-000-10R S46/52 308-069 -10R S60/66 308-069 -10R 473-548-10 473-547-10 473-549-10 Self-tailing jaws kit S30/40 473-429-10R S46/52 473-525-10R S60/66 473-625-10R Line stripper S30/40 473-427R S46/52 473-527R S60/66 473-627R Winch tool S30/40...
-
Page 30: Disposal
8 Disposal For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. Alternatively, in some countries, you may be able to return your products to your local retailer upon purchase of an equivalent new product. - Page 31 Notes …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… ……………………………………………………………………………………………...
- Page 32 DINGHIESKEELBOATSYACHTS Seldén Mast AB, Sweden The Seldén Group is the world’s leading Tel +46 (0)31 69 69 00 manu facturer of masts and rigging Fax +46 (0)31 29 71 37 systems in carbon and aluminium for e-mail info@seldenmast.com dinghies, keelboats and yachts. Seldén Mast Limited, UK The Group consists of Seldén Mast AB Tel +44 (0) 1329 504000 Fax +44 (0) 1329 504049...
