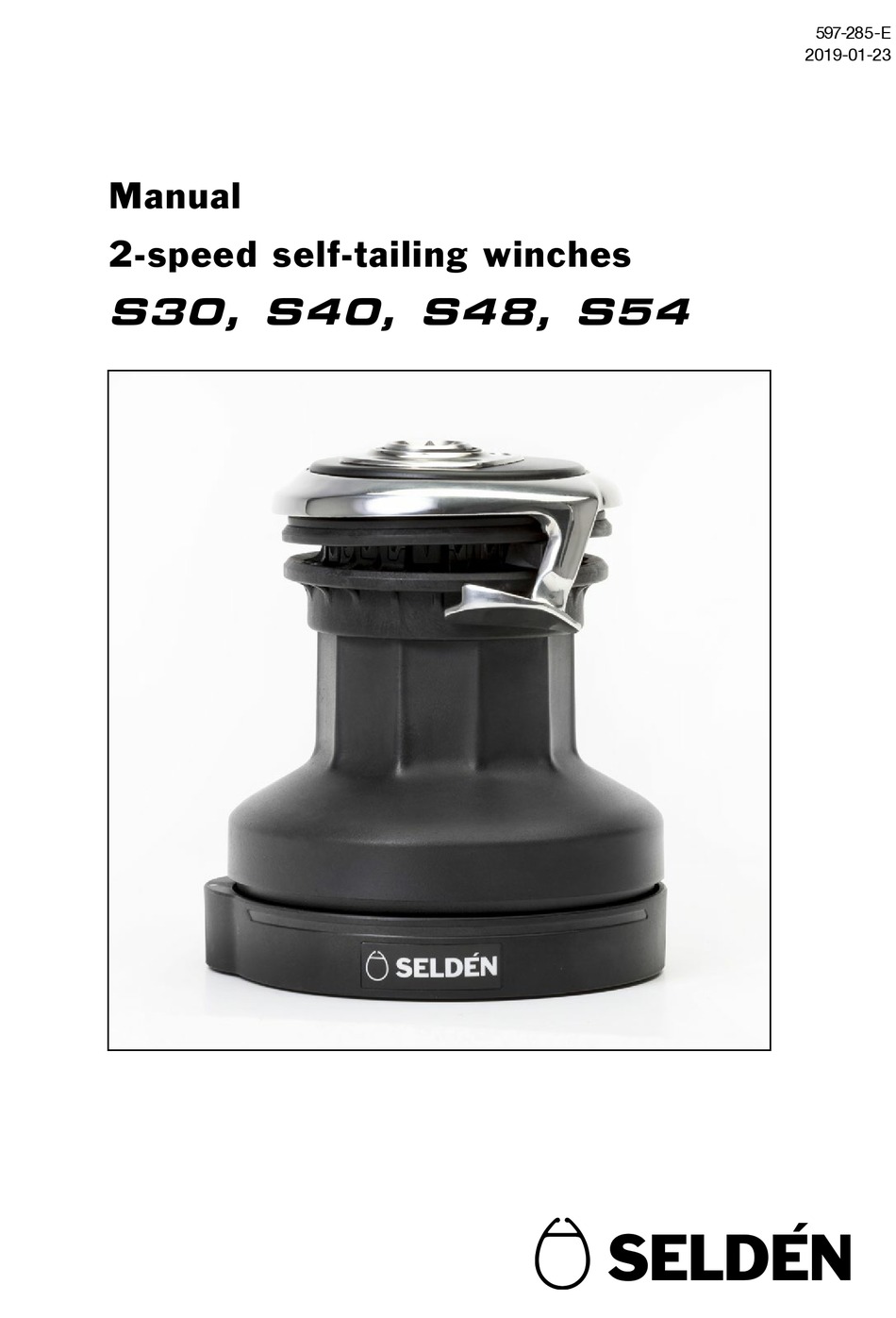

  • Page 1 597-285-E 2019-01-23 Manual 2-speed self-tailing winches S30, S40, S48, S54...

  • Page 2: Table Of Contents

    Contents Introduction…………………………………………………………………………....3 Self-tailing winch……………………………………………………………......5 Included parts………………………………………………………………………..6 Optional parts ……………………………………………………………………..6 2.3 Technical specification…………………………………………………………….. 7 Installation…………………………………………………………………………………..9 Installation preparation……………………………………………………………..10 Deck installation……………………………………………………………………..12 Final adjustments…………………………………………………………………..15 Operation……………………………………………………………………………….…..16 Service and maintenance………………………………………………………………..19 Frequent maintenance……………………………………………………………..19 Normal maintenance……………………………………………………………..19 Extended Maintenance……………………………………………………………..21 Spare parts…………………………………………………………………………………..

  • Page 3: Introduction

    Congratulations on the purchase of your new Seldén S-Winch. This manual covers installation and operating instructions for S-winch model S30, S40, S48, S54. The model designation is found on the top of the winch. The serial number is found on the winch base, as shown below, and on the delivery box.
  • Page 4 Choosing the correct version of S-winch for your boat: The key to a safe and properly working installation is correct dimensioning in relation to the boat size the products shall be used on. Seldén provides dimensioning guidelines in catalogues, leaflets and on the website. If there are any questions about selecting the right product, please consult an authorized Seldén dealer.

  • Page 5: Self-Tailing Winch

    Self-tailing winch The Seldén winches are manually operated and of self-tailing type with two available speeds. The ribs of the drum provide an extraordinary grip. As a result, fewer coils of the line are required, reducing the risk of an override and allowing the line to be released quickly.

  • Page 6: Included Parts

    For mounting with through bolt: Drilling diameter = Ø9 mm 597-285-E 597-285-E 597-285-E 597-285-E 597-285-E 2019-01-16 Manual 2-speed self-tailing winches S30, S40, S48, S54 Manual Manual Manual Manual 2.2 Optional parts Part 312-501 Seldén lubrication grease 533-927-20 Winch handle...

  • Page 7: Technical Specification

    2.3 Technical specification Parts and nomenclature In the schematic below, the names of parts referred to in this manual can be viewed. Top cover wear protection Top Cover Locator bracket Self-tailing Bearing cylinder Self-tailing jaws Drive shaft Drum Twin gear axle Base cover Twin gear...
  • Page 8 Dimensions and technical data Model Item. No. Base Drum Height Weight Suitable Gear Gear Safe diameter diameter Line ratio ratio Working (ØB) (ØD) dimensions HIGH Load [mm] [mm] [mm] [kg] [mm] GEAR GEAR (SWL) [kN] 472-630-10 183,5 8-12 10:1 30:1 472-640-10 183,5 8-12...

  • Page 9: Installation

    Installation Installation of a Seldén Winch must be carried out by a competent installer who has read and understood this installation manual, the purpose and function of the winch and has checked the loads, winch sizing and mounting requirements prior to installation. Winch orientation, position relative to associated components and location regarding deck reinforcement and suitability must be checked and any reinforcement work carried out prior to installation.

  • Page 10: Installation Preparation

    3.1 Installation preparation Prior to installation, find a suitable mounting point for the winch. When choosing a mounting point, consider previous and following requirements. Orienting the winch For optimum performance during use, the winch must be oriented correctly for the intended application. If the winch is to be used for handling of multiple lines, e.g. placed on the coach roof for use as a halyard winch in combination with running spinnaker or gennaker sheets, the winch shall be oriented and optimized for the highest load.
  • Page 11 Preventing override To prevent override, the line must be guided onto the winch at an angle of approximately 5-10° to the horizontal plane, as shown in the figure below: 5-10° To achieve the correct angle, installing a block or sheet lead to divert the sheet or halyard to the winch may be necessary.

  • Page 12: Deck Installation

    If at any point there is uncertainty if the yacht is equipped in this way, please abort the installation and seek assistance at the yard or builder. Equipment Material and equipment needed for installation: Material and equipment S30/40 S48/54 Quantity Stainless steel and plastic 164-088-01 164-089-01...
  • Page 13 A/B: Cut out the drilling template provided in the delivery box. A/B: Test-fit and align the drilling template in accordance with chapter 3.1 Orienting the winch and attach it to the deck using masking tape. A/B: Mark all hole positions using an awl or center-punch. A/B: Remove the template and pre-drill a pilot hole at each position using the 4mm drill bit.
  • Page 14 Clean the hole followed by tapping to correct thread size. Drill and tap sizes: S30/40: Ø5mm drill, M6X1 tap S48/54: Ø6,8mm drill, M8X1,25 tap A/B: Countersink each hole approximately 3 mm to allow enough marine sealing compound to be applied to stop water ingress.

  • Page 15: Final Adjustments

    Fit screws, placing the included steel and plastic RBS-washers between the winch base and the screw head, with the plastic washers closest to the winch base. Tighten the winch down to the deck in a crosswise pattern. Recommended tightening torques for screws are as follows: M6 =7 Nm M8=12 Nm...

  • Page 16: Operation

    Operation Seldén S-winches are manually operated and are of self-tailing type with two available speeds. Winching Apply 2-3 turns clockwise around the winch. The number of turns suitable for optimal performance is determined by the wind conditions and the line type. Lead the line over the self-tailing arm and into the self-tailing jaws for ¾...
  • Page 17 Insert the winch-handle into the socket by twisting the lever on the handle to enable insertion into the handle-socket. When inserted, release the lever to secure the handle in the socket. Clockwise: High gear Operate the winch by turning the winch handle in either clockwise of anticlockwise direction.
  • Page 18 Gently ease the tension in the pulling end to induce slipping over the winch drum, releasing the tension in the sheet. Do this until the desired tension is obtained. Lock the line by putting it into the self-tailing jaws. Keep body parts and clothing away from the winch when releasing the line.

  • Page 19: Service And Maintenance

    For heavy sailing or racing, a normal service is recommended before any major regatta or event. For the regular sailor, a normal service can be performed once a year adding to the annual extended service. Material and equipment S30/40 S48/54 Quantity...
  • Page 20 Dismantling Unscrew the top screw (1) using the Torx-key, T30. Remove the wear protection (2), the top cover (3) and the self-tailing arm (4). Be sure to keep track of any parts removed Continue to dismantle the winch by unscrewing the two Torx-screws with the Torx-key, T30 or T45. Remove the screws and washers (5). Follow this by removing the locator bracket (6) and finally the drum assembly (7). With the winch disassembled, apply Seldén lubrication grease to all visible gears.

  • Page 21: Extended Maintenance

    5.3 Extended maintenance The extended service is recommended to be performed at least once a year. For heavy users, racing or blue water sailing, the extended service is part of regular maintenance and should be performed when necessary. It is recommended to replace any worn bearings and bushings during the extended service. These are supplied as spare parts.
  • Page 22 Finally, remove the lower roller bearing (5) followed by the slide-washer (6) to free the twin gear axle (7). Remove the twin-gear axle using a fine flathead screwdriver, be careful not to damage the winch base. Remove the twin ratchet gear (8) from the winch base. Rinse the base with fresh water to remove any accumulation of salt that might have occurred. Continue cleaning the base using a mild degreasing agent and a cloth. Be sure to remove any old dirt and grease.
  • Page 23 Remove the washer (12) and circlip (13) from the drive shaft Remove the circlip (14), washer (15) and gear (16)
  • Page 24 Remove the last washer (17) and circlip (18). Remove the two springs, pawl and holder- assemblies (19) Clean the drive-shaft, holders, pawls and springs from grease and dirt. If worn, replace all pawls, holders, springs and washers. A list of spare parts and kits can be found in chapter 6 Spare parts. Grease shall only be applied to the gears, for lubrication of the pawls, use pawl-oil.

  • Page 25: Spare Parts

    470-029-20R S-Winch drive shaft spare kit 472-026-10R Roller bearing kit S30/40 470-231-10R Roller bearing kit S48/54 470-267-10R Top cover replacement kit, S30 472-022-30R Top cover replacement kit, S40 472-022-40R Top cover replacement kit, S48 472-042-48R Top cover replacement kit, S54...

  • Page 26: Warranty

    Warranty Seldén Mast AB guarantees the S30/S40/S48/S54 winches for 2 years. The guarantee covers faults arising from defective design, materials or workmanship. The guarantee is only valid if the product is assembled, operated and maintained in accordance with this manual and is not subjected to loads in excess of those indicated in the brochure and on the Seldén website.
  • Page 27 Notes ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………………………………...
  • Page 28 DINGHIESKEELBOATSYACHTS Seldén Mast AB, Sweden The Seldén Group is the world’s leading manu facturer Tel +46 (0)31 69 69 00 of masts and rigging systems in carbon and aluminium Fax +46 (0)31 29 71 37 e-mail info@seldenmast.com for dinghies, keelboats and yachts. The Group consists of Seldén Mast AB in Sweden, Seldén Mast A/S in Seldén Mast Limited, UK Tel +44 (0) 1329 504000...
