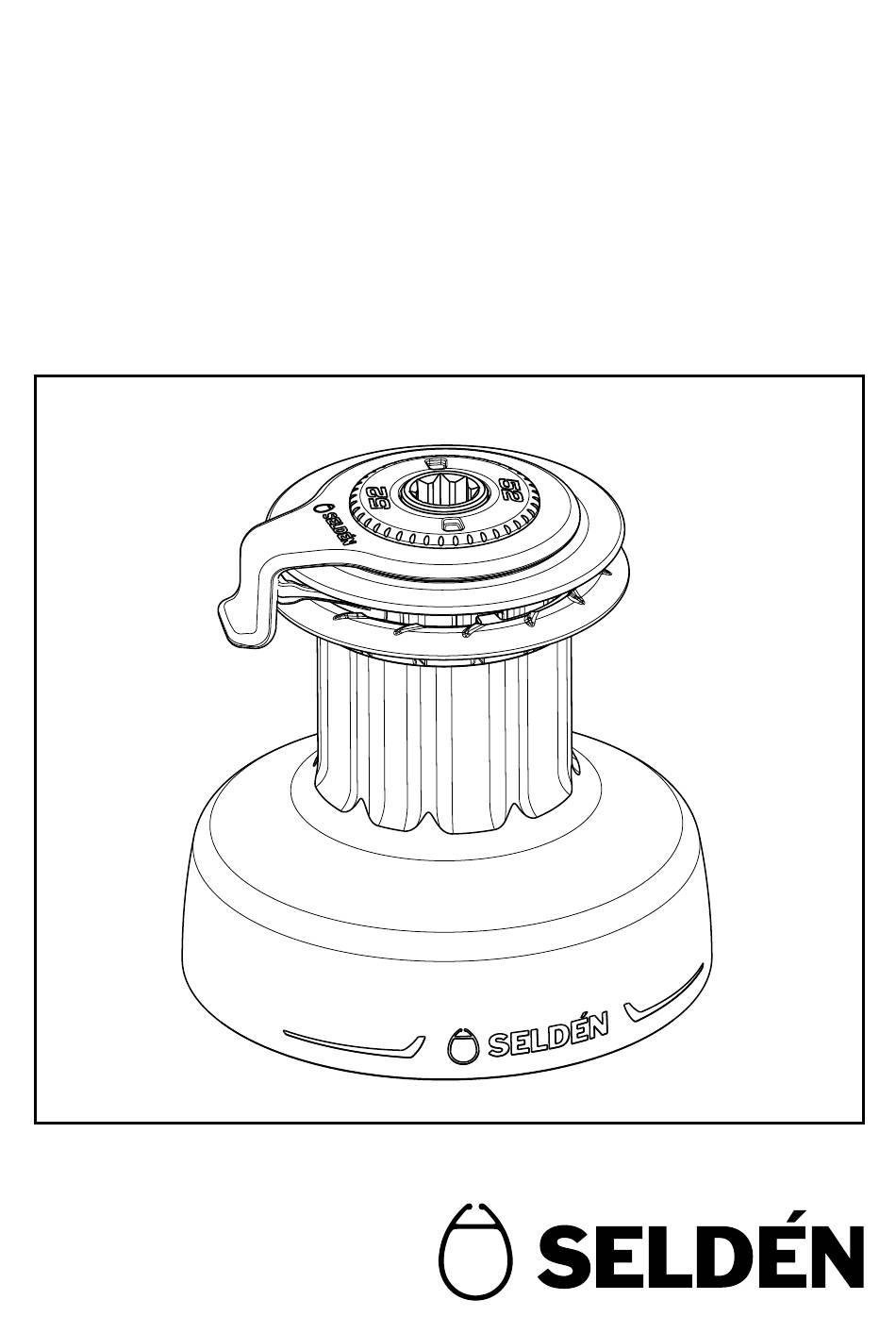

2-speed self-tailing winch
S30, S40, S46, S52, S60 & S66
Manual for installation and operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Selden S30

  • Page 1 597-489-E 2023-12-19 2-speed self-tailing winch S30, S40, S46, S52, S60 & S66 Manual for installation and operation...
  • Page 2: Table Of Contents

    Contents Page Introduction………………………………………………………....3 Seldén Series-S winch, S30-S66 ………………………....... 4 2.1 Included parts……………………………………………….... 4 2.2 Optional parts ………………………………………………... 5 2.3 Technical specification…………………………………….... 6 Installation…………………………………………………………….... 8 3.1 Installation preparation…………………………………….... 9 3.2 Winch orientation …………………………………………....9 3.3 Line entry angle ..…………………………......... 10 3.4 Fasteners ..................10 3.5 Mounting the winch ..............
  • Page 3: Introduction

    1. Introduction Congratulations on the purchase of your new Series S, self-tailing winch. This manual cover installation and operating instructions for the S30, S40, S46, S52, S60 and S66 self-tailing winches. The model designation is found on the top cover of the winch. Serial number is found on the winch base.
  • Page 4: Seldén Series-S Winch, S30-S66

    2 Seldén Series-S winch, S30-S66 The Seldén S-winches are manually operated and of self-tailing type with two gears forward. Included parts Description Item No. Illustration Seldén Series S-winch Aluminium drum 475-130-01 Aluminium drum 475-140-01 Aluminium drum 475-146-01 Aluminium drum 475-152-01...
  • Page 5: Optional Parts

    Optional parts Description Item No. Illustration 10” Race GRIP winch 474-501-10 handle 8” Race GRIP winch 474-401-10 handle 10” STANDARD winch 474-301-10 handle 8” STANDARD winch 474-201-10 handle Seldén lubrication grease 312–501 Pawl oil (50 ml) 312-709-01...
  • Page 6: Technical Specification

    Technical specification Main components Top Cover Self-tailing arm Locator bracket Self-tailer Jaws Roller bearings Line Stripper Winch base assembly Drum assembly...
  • Page 7 Dimensions and technical data Model Height Base Drum Suitable Power ratio Weight Safe (mm) Ø Ø (mm) line dimen- (kg) Working High (mm) sions Load (SWL, Gear Gear (mm) Ø139 Ø75 8-12 12:1 30:1 Ø152 Ø75 8-12 13:1 40:1 11,2 Ø184 Ø90 8-14...
  • Page 8: Installation

    3 Installation Installation of a Seldén winch must be carried out by a competent installer who has read and understood this installation manual, the purpose and function of the winch and has checked the loads, winch sizing and mounting requirements prior to installation. Seldén Mast AB does not take responsibility for incorrect installation of a winch, insufficient reinforcement of the deck at the location of the winch, water ingress due to insufficient sealing or any damage to interior as a result of water ingress.
  • Page 9: Installation Preparation

    Installation preparation The winch should be mounted on a flat surface. If not, any uneven surface must be compensated with shims. Winch position relative to associated components and location regarding deck reinforcement and suitability must be checked. The winch should not be mounted on any part of the deck that is laminated using a soft sandwich construction. Any reinforcement work must be carried out prior to installation.
  • Page 10: Line Entry Angle

    Line entr y angle To minimize the risk of overrides the line should enter the winch in accordance with the picture below. 5-10° Fasteners The winch could either be mounted by through deck screws with washers and nuts or, if the boat has purpose made metal plates laminated into the deck structure, be threaded into these.
  • Page 11: Mounting The Winch

    Mounting the winch Unscrew the top cover using the winch tool that was supplied with the winch. Remove the top cover, the self- tailing arm and the locator bracket. Remove the drum. Make sure the roller bearings remain on the winch base. Mark the holes in the intended Template S46 E46 S52 E52...
  • Page 12 1. Drill the holes according to the in- tended fastening method. See table in section 3.4 Fasteners for drill size Sealant recommendations. 2. Make a countersunk recess at the top of the holes. This is to create a better seal around the fastener. 3.
  • Page 13: Adjusting The Self-Tailing Arm

    Refit the drum, the locator bracket, and the self-tailing arm. Make sure that the line stripper is positioned in line with and held captive by the self-tailing arm. Adjust the self-tailing arm to have the line exiting the self-tailing jaws in the desired direction.
  • Page 14: Operation

    4 Operation Apply 2-3 turns on the winch drum and pull any slack in the line. Fewer or more turns may be required depending on the conditions. More turns on the winch drum increases the risk of over-ride, when pulling the slack.
  • Page 15: Trouble Shooting

    5 Trouble shooting Problem Problem cause Action Loss of self-tailing 1. Line not properly 1. Check line seating in function seated in self-tailing self-tailing jaws. jaws 2. Too few turns on 2. Add turns until self-tailing winch-drum function is resumed. 3.
  • Page 16: Service And Maintenance

    6 Service and maintenance To maintain top performance and assure longevity for all parts of your self-tailing winch, it is recommended to occasionally rinse the winch with freshwater. Yearly maintenance The maintenance described below should be performed at least once every year, for heavily used winches (racing boats, charter boat, etc.) more frequent maintenance than once a year is recommended.
  • Page 17 Remove the two gear assemblies. Pay attention to the washers. Disassemble the gears and clean all parts thoroughly using white spirits. Inspect pawls and springs and replace if worn or damaged. When clean, apply pawl oil on the pawls and apply a thin layer of grease to the gear teeth and the cylindrical surface of the small hub.
  • Page 18 Clean the gear on the inside of the drum and apply a thin layer of grease. Apply a thin layer of grease to the gear on the drive shaft. Refit drum washer, roller bearings, drive shaft and drum. Do not grease the roller bearings! Fit the locator bracket and the self-tailing arm.
  • Page 19: Spare Parts

    7 Spare parts The following spare parts kits can be purchased for your Seldén winch: Description Art. No. Gear Service kit S30/40 470-029-11R S46/52 470-029-12R 470-029-11, 12 472-005-11 S60/66 472-005-11R Top cover 473-314R 473-414R 473-524R 473-514R 473-624R 473-614R Self-Tailing Arm...
  • Page 20 Self-tailing jaws kit S30/40 473-429-10R S46/52 473-525-10R S60/66 473-625-10R Line stripper S30/40 473-427R S46/52 473-527R S60/66 473-627R Winch tool S30/40 473-010R S46/52 S60/66...
  • Page 21: Disposal

    8 Disposal For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. Alternatively, in some countries, you may be able to return your products to your local retailer upon purchase of an equivalent new product.
  • Page 22 Notes …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… …………………………………………………………………………………………… ……………………………………………………………………………………………...
