597-225-E
2016-06-01
Manual for 2-speed self-tailing winches
&
S30, S40, S48
S54
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S30 and is the answer not in the manual?

Questions and answers

Related Manuals for Selden S30

Summary of Contents for Selden S30

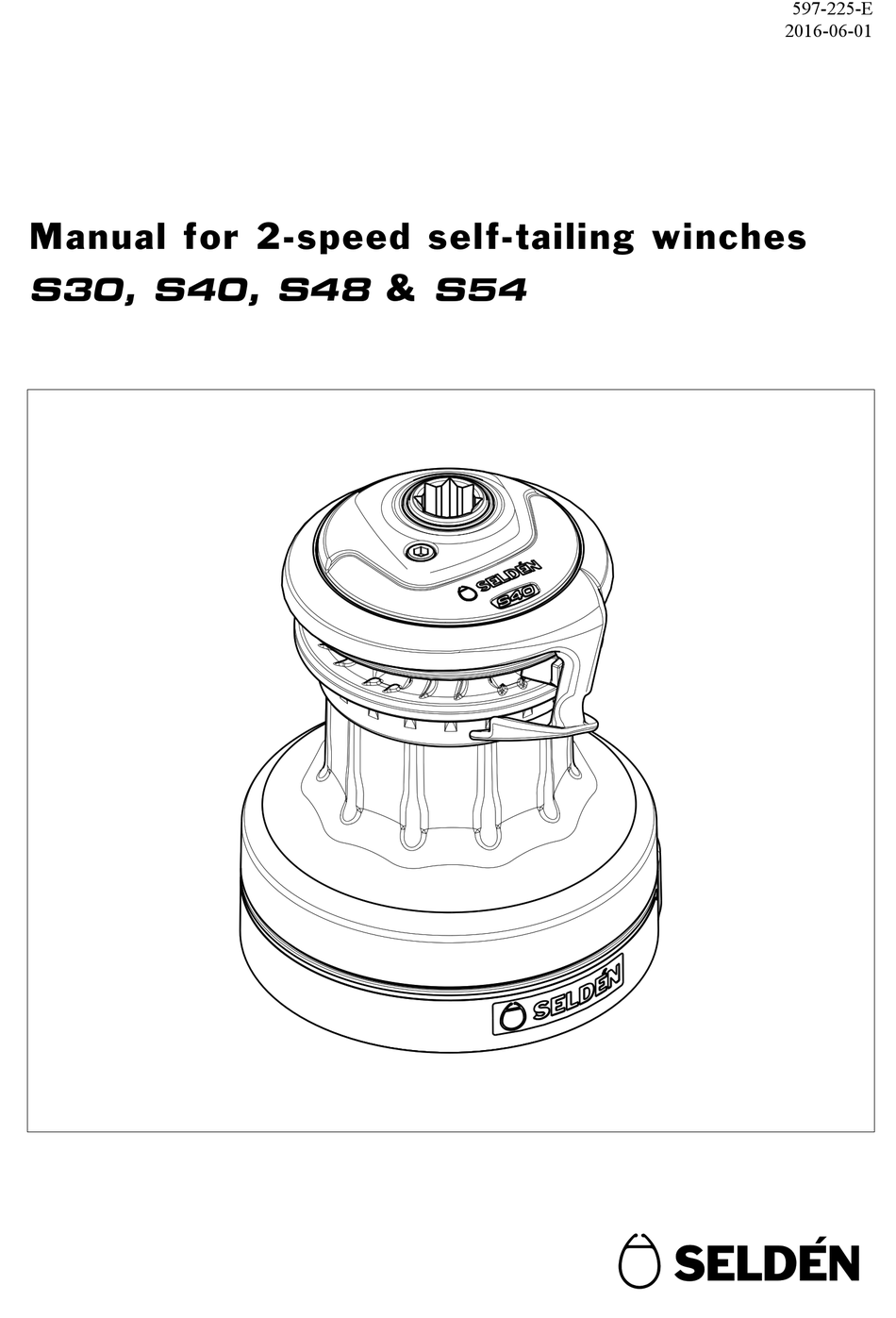

  • Page 1 597-225-E 2016-06-01 Manual for 2-speed self-tailing winches & S30, S40, S48...

  • Page 2: Table Of Contents

    Contents Page Introduction The manual Warranty General warning & instructions Product information 1.4.1 Seldén winch range 1.4.2 S-winch feature 1.4.3 Winch handle 1.4.4 Technical data 1.4.5 Parts and descriptions Operation instructions Winch handle Winching Installation Installation preparations 3.1.1 Winching orientation 3.1.2 Line routing Installation instructions...

  • Page 3: Introduction

    All safety-related information is indicated by the following symbol: The manual covers 4 different winch sizes; S30, S40, S48 and S54. The model designation can be found on the top of the winch. Identification-/serial number is located inside the winch, but also on the delivery box.

  • Page 4: General Warning & Instructions

    1.3 General warning & instructions Make sure the winch is dimensioned according to Seldén’s design standards and not subjected to loads greater than those stated in the brochure and instruction materials and is used solely for its intended use, i.e. normal sailboat applications for running rigging.

  • Page 5: Winch Handle

    The S-winch has two different fastening methods: 1. By hexagon headed bolts which slide into a groove in the winch base and where the hexagon heads are locked against rotation due to the winch base structure. This method allows installation without dismantling the winch.

  • Page 6: Parts And Descriptions

    1.4.5 Parts and descriptions Winch handle (Not included) Lock-in switch Top plate Winch handle socket Top cover Self tailing jaws Self tailing arm Drum Base collar Locator bracket Bushings Cog wheel Lower roller bearing Shaft Washer Twin Cog wheel Base Fig.

  • Page 7: Operation Instructions

    2 Operation instructions Seldén S-winches are manually operated and are a self-tailing type with two forward gears. 1. With the line, take 2-3 turns clockwise around the winch. The number of turns determines the grip and is related to the line construction. Fig.

  • Page 8: Installation

    3 Installation 3.1 Installation preparations 1. The winch should be mounted on a flat surface. If not, any uneven surface must be compensated with shims. 2. Make sure the installation area is strong enough for the chosen size of winch. 3.

  • Page 9: Installation Instructions

    3.2 Installation instructions The winch has two systems for installation: Winch Hexagon headed Hexagon socket Cheese headed bolts head cap screws screws 1. Hexagon headed bolts which slides into a groove in the winch base and where the hexagon heads are locked against rotation due to the winch base structure.

  • Page 10: Adjustment Of The Self-Tailing Arm

    7. Slide on an L-shaped washer onto each bolt according to fig 3.2.1.b. 8. Mount the screw by sliding the hexagon head and the L-shaped washer into the base and apply sealant into the U-recess and around the screw. Apply enough sealant to fill the entire cavity under the L-washer and the countersunk recess at the holes in the deck.

  • Page 11: Installation With Hexagon Socket Head Cap

    Tools needed for winch dismantling: S30 & S40: Hexagon key 5 (M6), Hexagon key 6 (M8) S48 & S54: Hexagon key 6 (M8), Hexagon key 8 (M10) 1. Remove the cap screw (1) on the top of the winch and remove the top plate and the top cover.
  • Page 12 2. Push the Self tailing arm upwards while the opposite side of the ring is lifted. Remove it. Fig. 3.2.3.b 3. Loosen the three screws which have now become visible. Remove the locator bracket (2). Fig. 3.2.3.c...
  • Page 13 4. Lift the drum/self tailing jaws (3) together straight up. Make sure the composite hub remains on the base. Fig. 3.2.3.d 5. Loosen the clip (5) (x3) carefully from the base while lifting the base collar (4) and remove it. Fig.
  • Page 14 6. Mark the fastening holes using the winch base as a template or use the enclosed paper drilling template. If the winch base is used as a template, use a smaller drill bit to mark the location of the hole. If the paper drilling template is used, pre-drilling with a smaller drill (Ø...

  • Page 15: Dismantling And Maintenance

    4.1 Dismantling for normal ser vice Tools needed: S30 & S40: Hexagon key 5 (M6), Hexagon key 6 (M8) S48 & S54: Hexagon key 6 (M8), Hexagon key 8 (M10) 1. Remove the cap screw (1) and remove the top plate and the top cover.
  • Page 16 3. Loosen the three screws which now has become visible. Remove the locator bracket (2). Fig. 4.1.c 4. Lift the drum/self tailing jaws (3) together straight up. Make sure the composite hub remains on the base. Fig. 4.1.d...
  • Page 17 5. Loosen the clip (5) (x3) carefully from the base while lifting the base collar (4) and remove it. Fig. 4.1.e 6. Remove the lower roller bearing (6) and the washer (7). Fig. 4.1.f 7. Perform service according to chapter 4.3 “Service Instructions”. 8.

  • Page 18: Dismantling For Extended Service

    4.2 Dismantling for extended ser vice Continuation of the dismantling according to chapter 4.1 “Dismantling for normal service”, steps 1-6. Keep careful track of the order in which the parts are dismantled. Reassemble sub-assemblies directly after checking and cleaning if possible. Handle all parts carefully.
  • Page 19 4. Lift out the winch handle socket (13) together with its bushings (14). Fig. 4.2.f 5. Remove the hub (16) from the base. Fig. 4.2.g 6. Remove the drive shaft (17) from the base by lifting it straight up. Fig. 4.2.h...
  • Page 20 7. Remove the circlip (18) and the washer (19) from the drive shaft. Fig. 4.2.i 8. To dismantle the pawls and pawl springs remove the gear wheel (20). Fig. 4.2.j 9. Check functionality of the pawls. Dismantle the pawls and pawl springs if necessary. Clean the parts to ensure full function.

  • Page 21: Service Instructions

    4.3 Ser vice instructions 1. Dismantle the winch according to the steps 4.1. 2. Clean all surfaces before lubricating using a dry cloth or white spirit. 3. Apply a thin layer of grease with a brush at the upper and lower gear ring in the drum. Use Seldén lubrication grease art.no: 312-501.

  • Page 22: Notes

    Notes...
  • Page 23 Notes...
