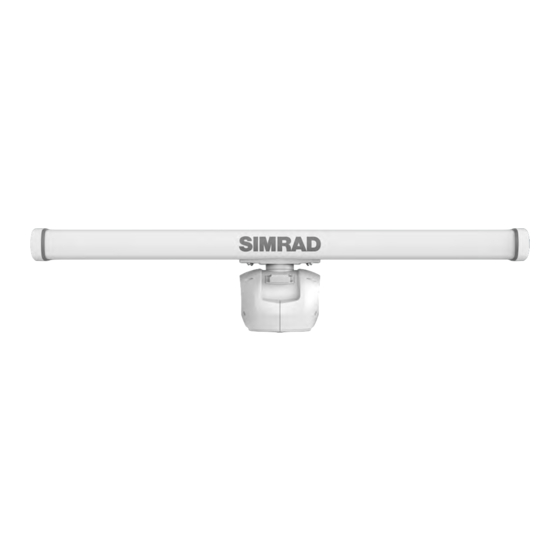

HALO 5000 ® Installation manual English www.navico-commercial.com Scan for more info...
Page 3
®Reg. U.S. Pat. & Tm. Off, and ™ common law marks. Visit www.navico.com/intellectual-property to review the global trademark rights and accreditations for Navico Group and other entities. • Navico is a trademark of Navico Group. ® • Simrad is a trademark of Kongsberg Maritime AS, licensed to Navico Group. ® • HALO is a registered trademark of Navico Group.
Page 4
Persons authorized to operate, maintain, and troubleshoot the system are instructed and trained by Simrad. Persons operating or servicing systems must be familiar with the general safety regulations and specific safety systems, and they must have passed all the required training.
IN THE BOX Pedestal Radar pedestal Radar power cable 30 m (98.4 ft) or 65 m (213.3 ft) Radar data cable 30 m (98.4 ft) or 65 m (213.3 ft) Lifting strap Tef-Gel anti-seize, anti-corrosion gel ® Mounting bolts and washers a) Bolts, hex head, M12 x 35 mm, 316 s/s b) Bolts, hex head, M12 x 50 mm, 316 s/s Flat washer, M12 x 36 x 3, 316 s/s...
Antenna Radar antenna 4 ft model: 4.70 ft / 1432 mm / 56.38” 6 ft model: 6.69 ft / 2039 mm / 80.28” Dome nuts, M8, 316 s/s Spring washers, M8, 316 s/s Flat washers, M8 x 16 x 1.2, 316 s/s...
1 m with a safety rail both of a suitable height. The design of the mounting platform for the HALO 5000 radar should take into account the vibration requirements defined by IEC 60945. The mounting platform should be level when the vessel is loaded and underway at a typical cruise speed.
Do not install the HALO 5000 radar on the same horizontal beam plane as any other radar. Radar antennas in close proximity should have a minimum vertical separation angle of 45° and a minimum vertical separation of 2 m (6 ft).
Radar antenna height implications < 2L < 500 m Antenna elevation table The antenna elevation from the water surface determines the distance the radar beam travels before hitting the water surface. Height (m) Height (m) Distance (m) 14.1 18.8 23.5 35.3 47.0 70.6...
HALO 5000 pedestal ⚠ WARNING: Leave the waveguide protection cap on the pedestal while you mount it to your vessel. You should only remove the cap just before you fit the antenna to the pedestal. Bolts and washers The eight hex head bolts supplied are suitable for surfaces up to 25 mm (1”) in thickness.
Page 12
5 Remove the mounting template. 6 Apply the supplied Tef-Gel anti-corrosion gel to the four feet of the pedestal. ® 7 Lift the pedestal using the supplied lifting strap. ⚠ Do not lift the pedestal with the antenna attached. WARNING: 8 Lower the pedestal carefully so its mounting holes align with the drilled holes in the vessel.
Page 13
12 Apply the Tef-Gel anti-corrosion gel to the thread of the Ethernet connector. ® 13 Connect the 8-pin end of the Ethernet cable to the pedestal. Take care to align the connector correctly to avoid bending the pins. Secure the collar by rotating clockwise. 14 Connect the 3-pin power cable to the pedestal.
Page 14
Fit the antenna to the pedestal ⚠ WARNING: Do not operate the radar without the antenna connected. 1 Remove the waveguide protection cap from the pedestal and the waveguide protection label from the underside of the antenna. Note: The cap and label prevent contaminants from entering the waveguide. Only remove these covers just before fitting the ¼...
Page 15
4 Carefully lower the antenna on to the pedestal. Note: The antenna can only fit one way. ¼ 5 Place a flat washer then a spring washer followed by a dome nut on to each of the antenna studs. 6 Tighten the dome nuts using a socket and torque wrench to 15 N.m (11 lb-ft). Note: Using a socket and torque wrench minimizes the risk of damaging the powder coated surface of the pedestal.
System examples System example 1 A Outdoor B Antenna C HALO 5000 pedestal E R5000 power supply unit F M5000 monitor G R5000 radar processor H O2000 controller...
Page 17
System example 2 A Outdoor B Antenna C HALO 5000 pedestal D RI-50 power supply unit F M5000 monitor G R5000 radar processor H O2000 controller O2000 power supply unit O2000 trackball K Indoor L 24 V DC supply 1 Power cable...
System example 4 A Outdoor B Antenna C HALO 5000 pedestal D RI-50 power supply unit F M5000 monitor G R5000 radar processor H Extended keyboard K Indoor L 24 V DC supply 1 Power cable 2 LAN cable HALO 5000 pedestal overview...
TECHNICAL SPECIFICATIONS General Type of emission FCC/IC Type Certification HALO 5000 Radar FCC ID: 2AJJ3HALO5000 IC ID: 21849-HALO5000 Marine Equipment Directive (MED) 2014/90/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 23 July 2014 on marine equipment, COMMISSION IMPLEMENTING REGULATION (EU) 2023/1667 of 08 August 2023.
Page 20
Antenna Type End-fed slotted waveguide Rotation speed 24 to 48 rpm depending on operating mode Beam width 4 ft model: 1.8° 6 ft model: 1.2° Beam width vertical 25° Plane of polarization Horizontal polarization Side lobe level 4 ft Below -23 dB max (within ±10°) Below -30 dB max (outside ±10°) Side lobe level 6 ft Below -23 dB max (within ±10°)
