● Adjustment knobs of treble and bass to meet the voice characteristics of different people ● OTG function for the MX1 Pro sound card to connect with a mobile phone via USB to realize high-definition, lossless recording and webcast ● Colorful and cool lighting control for you to switch the lighting effect through the lighting control button ●...
Mixer Webcast Sound Card ■ Product contents MX1 PRO���������������������.�����.1 pc C2-5 OTG data cable����..�����������������.1 pc Stream audio cable���������������..�����1 pc Computer data cable���������������..����.1 pc 6.35mm adapter���..�������������������...2 pcs User manual�����������..������������1 pc ■ Applications Cell phone/Tablet/PC: Karaoke, webcast, recording Suitable for a variety of entertainment webcast APPs and influencer marketing platforms ■...

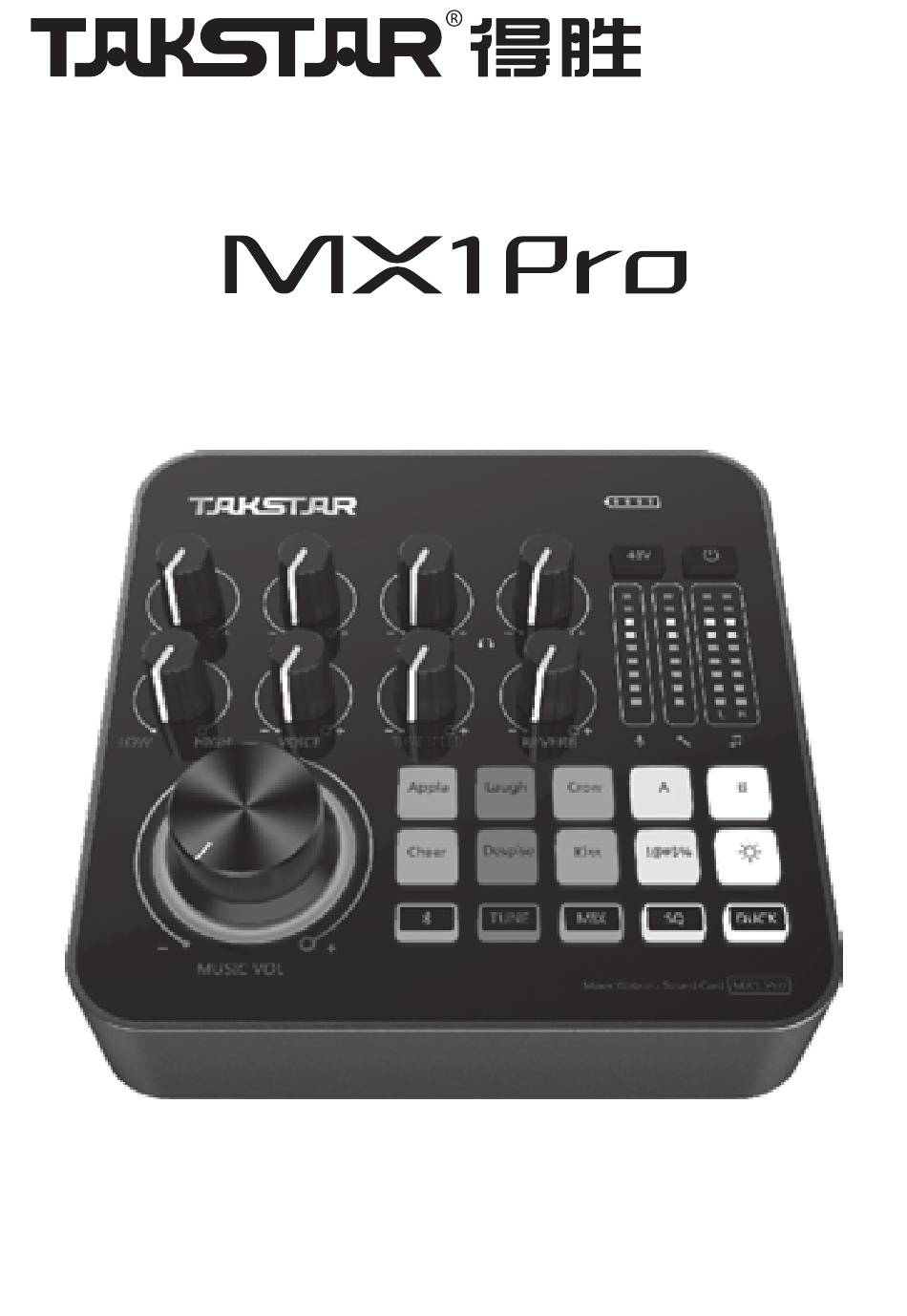

Mixer Webcast Sound Card ■ Function instructions ⑯ ① ③ ⑮ ② ④ ⑱ ⑤ ⑲ ⑰ ⑳ ⑥ ⑦ ⑧ ⑭ ⑨ ⑩ ⑪ ⑫ ⑬ ① Battery LED: The battery icon has four bars with each bar representing 25% power.
Page 31
Mixer Webcast Sound Card ④ Microphone volume LEDs: Display the microphone volume. During webcast, microphone volume LEDs light up dynamically based on the microphone volume. ⑤ Accompaniment volume LEDs: Display the accompaniment volume. During webcast, accompaniment volume LEDs light up dynamically based on the accompaniment volume.
Page 32
Mixer Webcast Sound Card Note: When using the sound card in the free chatting mode of the webcast platform, please turn off the mixing function, otherwise there will be two sounds when people in the webcast room speak. Please turn on the mixing function in other modes, otherwise the accompaniment music played on the computer will not be sent to the webcast room.
Page 33
Mixer Webcast Sound Card turn it counterclockwise starting in the middle position to increase the bass. ⑱ REVERB knob: Turn it clockwise to increase the microphone reverb and turn it counterclockwise to decrease the microphone reverb. ⑲ RETUNE SPEED knob: When the auto-tuning function is on, turn the knob clockwise to strengthen the auto-tuning effect and turn it counterclockwise to weaken the auto-tuning effect;...
Mixer Webcast Sound Card ㉕ Cell phone connectors 1/2: Connect to the cell phone or tablet for webcast or Karaoke via an audio cable. Two cell phone connectors are available for the simultaneous webcast via two cell phones or two tablets. ㉖Type-C interface: Connect to a computer using the computer data cable or to a smartphone using the C2-5 OTG data cable for plug-and-play use.
Page 35
Mixer Webcast Sound Card Dynamic microphone Condenser microphone Computer M/F XLR cable Computer data cable XLR to 3.5mm audio cable Computer connection diagram I. Operating Steps 1. Lower the mic volume and headphone volume on the sound card to the minimum before powering it up.
Page 36
Power up the sound card, and by default, it will enable Bluetooth, with the Bluetooth indicator flashing blue while it searches for device to pair. Enter the settings of your phone, find and enable Bluetooth, wait until "TAKSTAR MX1 Pro" is discovered, then tap on it to connect. Once connected successfully, the flashing Bluetooth indicator becomes solid blue.
Page 37
Mixer Webcast Sound Card press the Bluetooth button again to re-enable it. 7. To connect speakers, use audio cable according to the specification of the speaker output interface, with one end hooked up to the speaker output, and the other end to the headphone interfaceon the sound card. Note: To avoid feedback howling while using speakers for karaoke, it's recommended to use dynamic mics instead of condenser mics, point the mic pickup away from the speakers and keep a proper distance in between, lower the...
II. Computer Settings When using the MX1 Pro sound card on the computer, you need to set the audio option to "TAKSTAR MX1 Pro Audio". Below examples are based on Windows 10 and Mac OS, but the methods on other operating systems are similar and will not be illustrated here.
Page 39
Mixer Webcast Sound Card 2. Select "Sound Control Panel" to enter the "Sound" setting dialog. 3. Select "Record" tab in the "Sound" dialog, and set the "Stereo Mix" device as the default device.
Page 40
Mixer Webcast Sound Card 4. Double-click "Stereo Mix" to enter the stereo mix properties, select "Level" tab, and adjust the recording volume to 100%, as shown below. 5. Select "Listen" tab in the Stereo Mix Properties dialog, uncheck "Listen to this device" if not yet.
Page 41
Mixer Webcast Sound Card 6. Select "Playback" tab in the "Sound" dialog, and set the "TAKSTAR MX1 Pro Audio" as the default device, as shown below. 7. Double-click "TAKSTAR MX1 Pro Audio" to enter the playback properties, select "Level" tab, and adjust the playback volume to an appropriate volume. It is...
Page 42
8. Music player settings: Take Windows Media Player as an example, if you want to send its music playback to your broadcast, simply set "TAKSTAR MX1 Pro Audio" as the output device. You can then disable loopback mix to stop sending the music playback whenever necessary, or use the ducking function to automatically suppress the music signal whenever you talk.
Page 43
1. Connect to a computer via a Type-C data cable, and open the software for customizing host effects on the MX1 Pro sound card. 2. Right-click the "Entry sound effect", select "Loading a device", and then there are two options of button A and button B, corresponding to the two buttons A and B on the sound card.
Page 44
"Please enter a hotkey", and then press "Confirm". 2. Right-click the "Entry sound effect" and select the "Delete a hotkey" option to remove the shortcut key of the sound effect. MX1 Pro MX1 Pro...
Page 45
Mixer Webcast Sound Card MAC OS Settings 1. Connect the end of the supplied C2-5 OTG cable marked with " " to the TYPE-C interface marked with " " on the back of the sound card, and then the C2-5 OTG cable plug marked with " " to the Apple computer (use supplied Type-C cable if the computer uses USB-A port), and the Apple computer will automatically install the driver.
Page 46
Mixer Webcast Sound Card 3. Click the "Input" tab, select "TAKSTAR MX1 Pro Audio" as the sound input device, and drag the "Input Volume" to 100%. 4. In the "Output" tab, select "TAKSTAR MX1 Pro Audio" as the sound output device, and adjust the "Output Volume"...
" " icon in the upper right corner. 3. In the dialog that appears, check whether the speaker device is displayed as "TAKSTAR MX1 Pro Audio". If so, it means that the mic is connected to the phone successfully, as shows.
Page 48
Mixer Webcast Sound Card Android System Settings Note: The sound card is compatible with most Android smartphones with OTG function. However, it may not work with certain smartphone models or apps due to incompatibility issues, which is not a quality issue. Please confirm with your device manufacturer on whether your device supports OTG function.
Mixer Webcast Sound Card ■ Safety instructions To avoid possible personal injury or property damage caused by electric shock, high temperature, fire, radiation, explosion, mechanical hazards, and improper use, please read and observe the following items before using the product. 1.
This manual contains up-to-date technical specifications as of printing. Howev- er, specifications contained herein may not conform to your particular product since Takstar is constantly improving its products. Also, specifications, devices or accessories available may vary from region to region. If you have any questions, please contact our local sales outlet.
