TECHNICAL DATA
MODEL
SKU
LUMENS
POWER
SOLAR PANEL
BATTERY TYPE
LIGHTING PANEL
BRACKET
BEAM ANGLE
CHARGING TIME
WORKING TIME
LED TYPE
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. The products
are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL

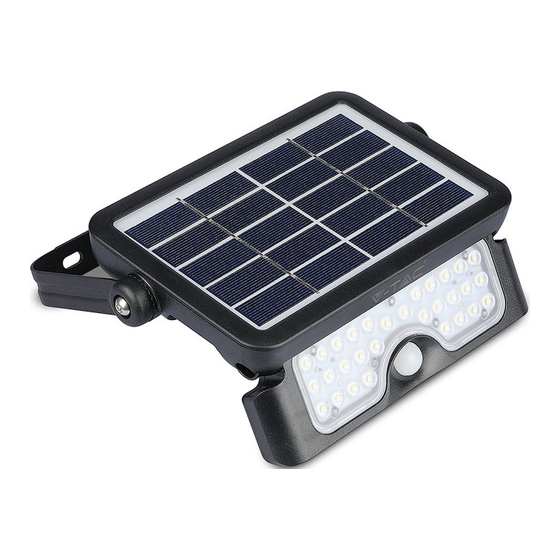

LED SOLAR FLOOD LIGHT
VT-777-5
8547
500 Lm
5W
2.3Wp, Mono Crys-
talline Silicon
3.7V Lithium Battery,
3000mAh
135° Adjustable
360° Adjustable
90°
6-7 Hours
2-36 Hours
SMD 2835x30 Pcs
DETECTION ANGLE
SENSOR RANGE
DIMENSION
BODY TYPE
INSTALLATION HEIGHT
120°
2-6 M
217.4x149.3x33.7mm
ABS+PC
≤4 M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for V-TAC VT-777-5
Summary of Contents for V-TAC VT-777-5
- Page 1 ≤4 M INTRODUCTION & WARRANTY Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
- Page 2 WARNING 1. Please make sure to turn off the power before starting the installation. 2. Installation should be done by certified electrician. . 3 The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced. This marking indicates that this product should not be disposed of with other household wastes.
- Page 3 INSTALLATION B: PUT ON FLAT SURFACE DIRECTLY Push aside the stand bracket and put it on a flat surface. INSTALLATION C: HANG ON THE WALL 1. Please drill 2 holes of Ø8mm on the wall with a spacing of 88.5mm. (Picture 1) 2.
- Page 4 SENSOR MODE When battery capacity above >30% Automatically turns on to full brightness when motion is detected in the range ≤6mtrs, then dim to weak brightness in 20 seconds of no motion. When battery capacity below <30% Automatically turns on to full brightness when motion is detected in the range ≤6mtrs, then turns off in 20 seconds of no motion.
