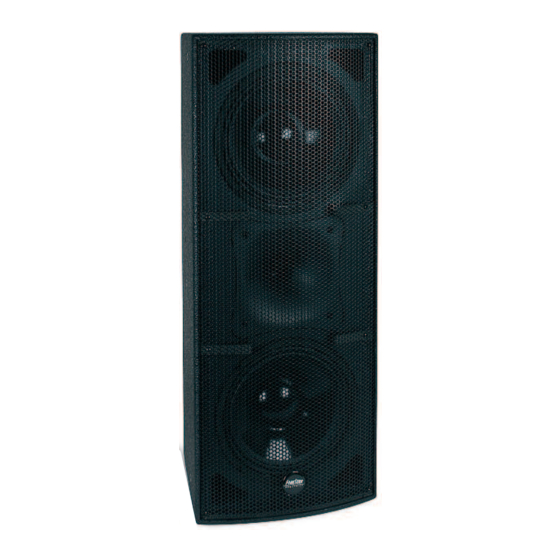

- Page 1 PRO-102 HIGH POWER LOUDSPEAKER PRO SERIES N Instruction manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
All rights reserved by FONESTAR, S.A. DESCRIPTION PRO series loudspeakers are suitable for live P.A. and installations due to their installation possibilities and characterisitcs. The wide range of loudspeakers with different powers, components and acoustic characteristics offers the possibility to select the one that adapts to each application the best. High performance loudspeakers to be taken advantage of. -
Page 4: Installation
INSTALLATION PRO series loudspeakers can be installed directly on the floor, besides offering other possibilities such as being installed on a speaker stand with a 35 mm tube. There are also suspension points available for hanging it from the ceiling or structures using the appropriate loudspeaker tools. -
Page 5: Block Diagram
CONNECTION PRO series loudspeakers are equipped with 2 x 4-contact speakon connectors to ease the connection to the power amp and to other loudspeakers. Both connectors use circuit 1 (contacts 1+, 1-) to power the loudspeakers and are connected in parallel. -
Page 6: Specifications
SPECIFICATIONS PRO-102 CHARACTERISTICS Loudspeaker manufactured in reinforced wood. Granulated paint finish. Protective metal front grille. Carrying handles and suspension points. Hole in the base for a 35 mm tube. POWER 600 W maximum, 300 W RMS SPEAKERS 2 x 10" woofer: 50 mm coil and Neodymium magnet 1 compression motor: 1"... - Page 7 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
