Summary of Contents for Flex Ultimate FP

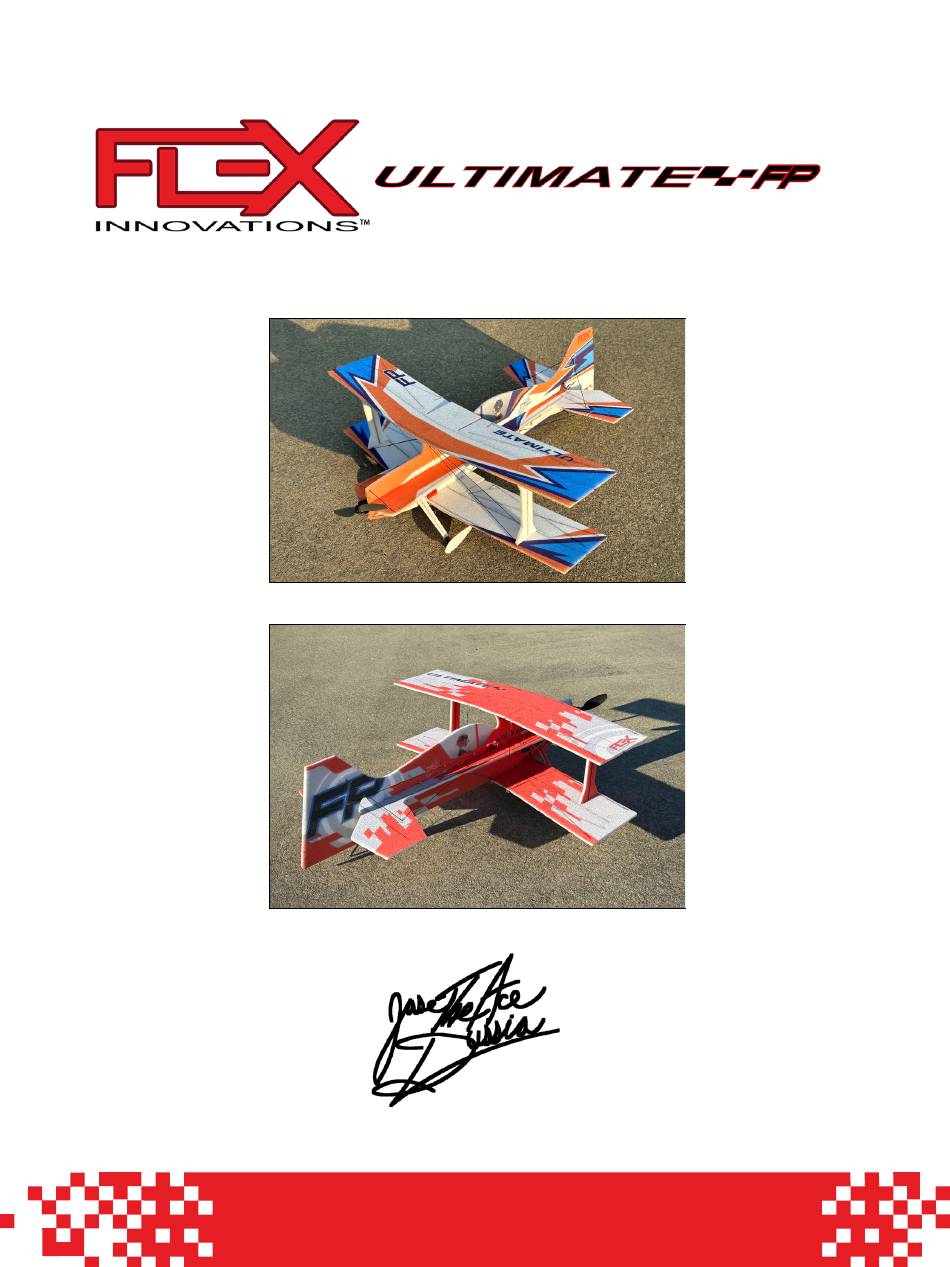

  • Page 1 Assembly Manual...
  • Page 2 XA performance, this is a phenomenal addition to the Flex biplane lineup. One of the main focal points of the Ultimate FP is its ability to be a low and slow 3D trainer. The predictability in post stall flight is unmatched! Paired with high quality and high-performance equipment, the Ultimate FP is sure...

  • Page 3: Replacement Parts

    Flex Flat Foamy Ultimate FP JD Red PNP  FPM537001   Flex Ultimate FP Plastic Parts Sheet  FPM537002A  Flex Ultimate FP Orange Foam Wheel Pant and Landing Gear Sheet  FPM537002B  Flex Ultimate FP Red Foam Wheel Pant and Landing Gear Sheet  FPZA1057 ...
  • Page 4 All instructions, warranties and other collateral documents are subject to change at the sole discretion of Flex Innovations, LLC. For up-to-date product literature, please visit our website at www.flexinnovations.com and navigate to the product page for this product.

  • Page 5: Safety Warnings And Precautions

    4. This model must be assembled according to these instructions. Do not alter or modify the model outside of these instructions provided by Flex Innovations, LLC, as doing so may render it unsafe and/or unflyable. You must take time to build straight, true, and strong. It is your responsibility to ensure the air worthiness of this product.
  • Page 6 Ultimate FP Instructions Tools/Supplies needed Including but not limited to: -Contact Foam Adhesive (FPMJQ2118) or Foam-Cure (BSI142) -Medium CA (Foam safe not required) -Hobby knife with fresh blades -Phillips screwdriver -CA Accelerator (BSI151) -Parchment/Baking paper for a building surface (highly recommended)

  • Page 7: Bottom Wing Installation

    Ultimate FP Instructions Bottom Wing Installation 1) Locate the bottom wing and main fuselage sections. Test fit the bottom wing into the cutout in the fuselage. Once all is straight and well fitting, apply building adhesive to glue in place.
  • Page 8 Ultimate FP Instructions Top Fuselage Installation 1) Locate the top fuselage piece. Notice the slots along the fuselage and how they correspond with the tabs of the top fuselage piece. Test fit and once everything is confirmed to align, apply adhesive.

  • Page 9: Top Wing Installation

    Ultimate FP Instructions Top Wing Installation 1) Locate the top wing along with the interplane struts. 2) Attach the tab wing based on the tabs and notches in the fuselage/cabane area. 3) Glue wing into place. 4) Test fit the interplane struts on each side. Once aligned, apply glue to the top and bottom of the struts.

  • Page 10: Landing Gear Installation

    Ultimate FP Instructions Landing Gear Installation 1) Locate the main landing gear along with the plastic landing gear supports. 2) Slide the landing gear through the plastic landing gear supports as shown: 3) Locate the two dots marked on the fuselage for location of the landing gear.
  • Page 11 Ultimate FP Instructions Motor Bolt Installation 1) Locate the top motor bolt found with the motor packaging. 2) Bolt into place and wrap around top motor mount tabs. Carbon Fiber Trussing 1) Install small carbon fiber rods on each side of the front portion of the fuselage to prevent twisting.

  • Page 12: Radio Setup

    Use a Phillips screwdriver to tighten the connectors once centered. 3) Low Rate/Precision: 50% Dual Rates at 60-70% expo High/3D/XA Rate: 100% Dual Rates at 50% expo Center of Gravity: Ultimate FP: Approximately 45-60mm from top wing root LE...
  • Page 13 Ultimate FP Instructions...

  • Page 14: Limited Warranty

    Purchaser’s Remedy Flex’s sole obligation and purchaser’s sole and exclusive remedy shall be that Flex will, at its option, either (i) service, (ii) replace any part of the Product determined by Flex to be defective, or (iii) replace the Product determined by Flex to be defective. Flex reserves the right to inspect all Product(s) involved in a warranty claim.
