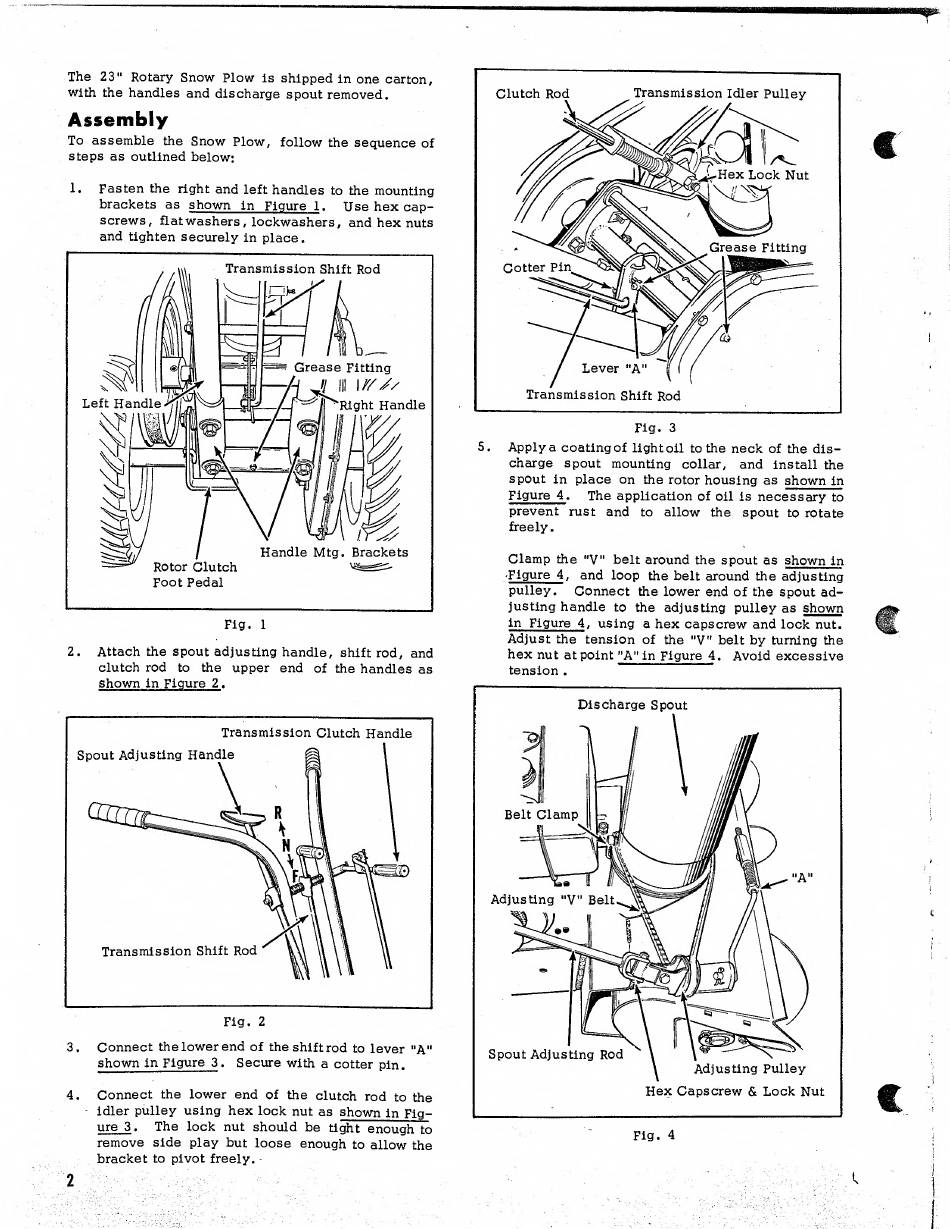

The 23" Rotary Snow Plow is shipped in one carton,
with the handles and discharge spout removed.
Assembly
To assemble the Snow Plow, follow the sequence of
steps as outlined below:
1. Fasten the right and left handles to the mounting
brackets as shown in Figure 1. Use hex cap¬
screws, flat washers, lockwashers, and hex nuts
and tighten securely in place.
2. Attach the spout adjusting handle, shift rod, and
clutch rod to the upper end of the handles as
shown in Figure 2.
3. Connect thelowerend of theshiftrod to lever "A"
shown in Figure 3. Secure with a cotter pin.
4. Connect the lower end of the clutch rod to the
idler pulley using hex lock nut as shown in Fig¬
ure^. The lock nut should be tight enough to
remove side play but loose enough to allow the
bracket to pivot freely.
Fig. 3
5. Apply a coating of light oil to the neck of the dis¬
charge spout mounting collar, and install the
spout in place on the rotor housing as shown in
Figure 4. The application of oil is necessary to
prevent rust and to allow the spout to rotate
freely.
Clamp the "V" belt around the spout as shown in
Figure 4, and loop the belt around the adjusting
pulley. Connect the lower end of the spout ad¬
justing handle to the adjusting pulley as shown
in Figure 4, using a hex capscrew and lock nut.
Adjust the tension of the "V" belt by turning the
hex nut at point "A" in Figure 4. Avoid excessive
tension .
