Product Manual Mona Switch V2
EAE KNX Mona Series
MONA Switch R3.0
EAE MONA SWITCH V2
EAE Technology
www.eaetechnology.com
Page 1 / 34
©

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MONA SWITCH V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EAE MONA SWITCH V2

Summary of Contents for EAE MONA SWITCH V2

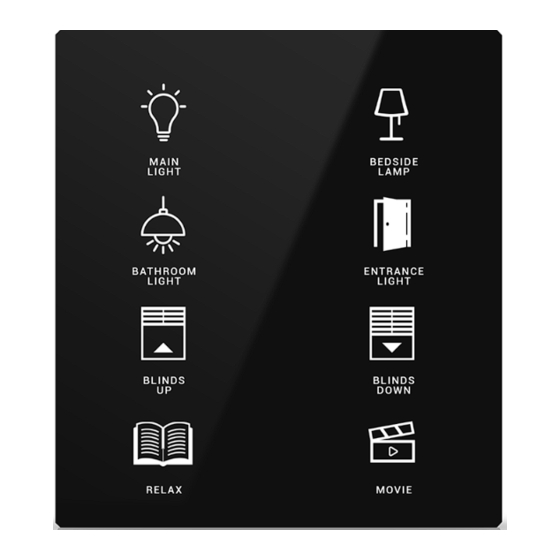

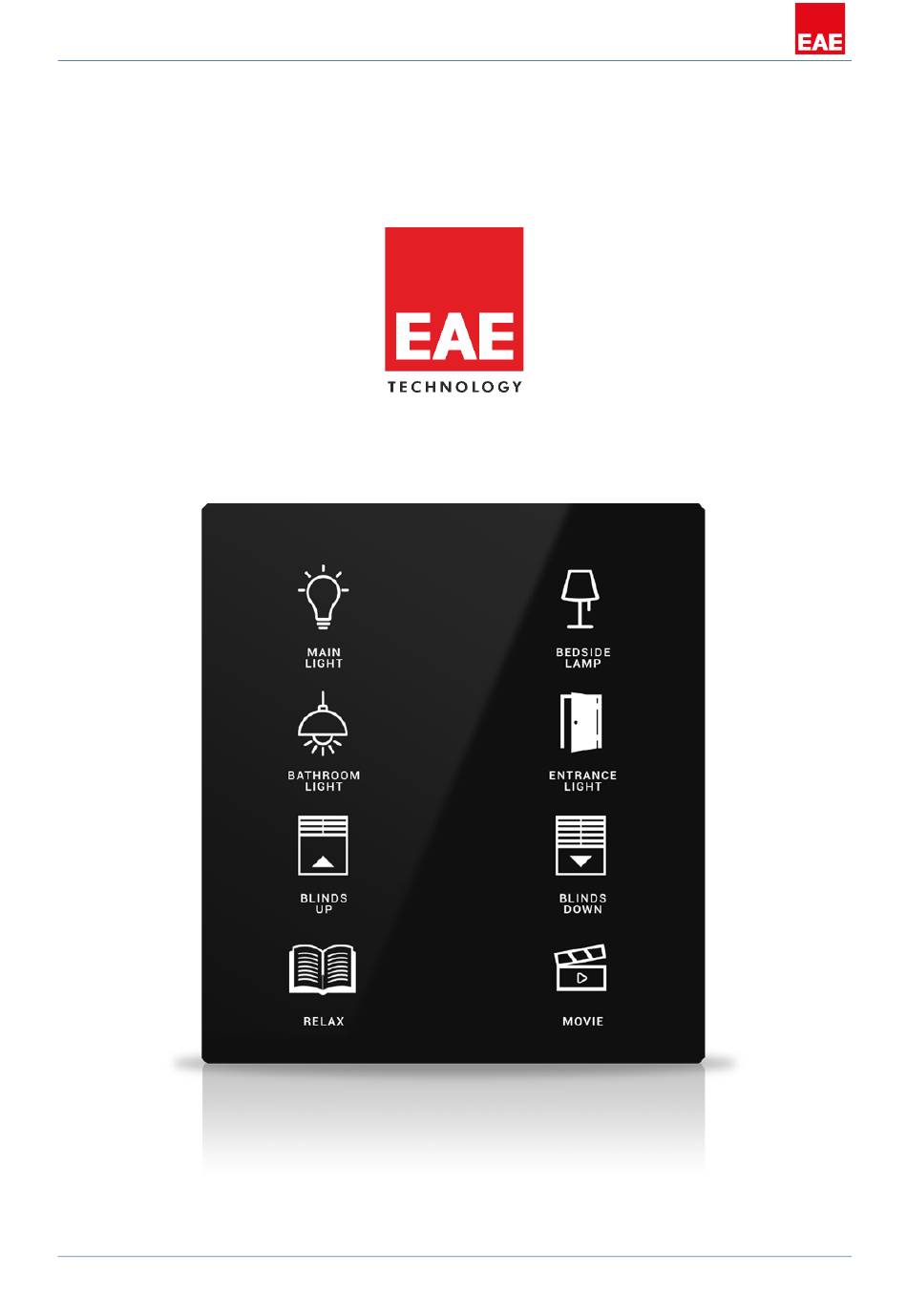

  • Page 1 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 EAE MONA SWITCH V2 EAE Technology www.eaetechnology.com Page 1 / 34 ©...

  • Page 2: Table Of Contents

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 Contents 1. General ................................. 4 2. Device Technology............................4 2.1. Button Definitions ..........................4 2.2. Connection Diagram ..........................4 2.3. Technical Data ............................5 2.4. Dimensions ............................5 3.
  • Page 3 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 Product Order Codes MN-B-S01 MONA 1 BUTTON SW. BLACK MN-W-S01 MONA 1 BUTTON SW. WHITE MN-B-S02 MONA 2 BUTTON SW. BLACK MN-W-S02 MONA 2 BUTTON SW. WHITE MN-B-S03 MONA 3 BUTTON SW.

  • Page 4: General

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 1. General Mona KNX switches offer a wide range of functional flexibility up to 12 programmable buttons. Mona switches can be programmed for control lighting, shutter/blind drivers, speakers, make scene calls and mimic panic buttons.

  • Page 5: Technical Data

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 2.3. Technical Data Protection Grade IP 20 EN 60529 Safety Class EN 61140 Operating Voltage Voltage 21V… 30V DC, via the KNX bus Current drawn from bus < 25 mA...

  • Page 6: Communication Object Table

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 3. Communication Object Table Object Name Function Data Point Type Flags In operation [0, 1] 1 bit DPT 1.017 Button 1…12 [Press] Switching --> On/Off 1 bit DPT 1.001 Button 1…12 [Release]...
  • Page 7 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 Object Name Function Data Point Type Flags Button 1…12 [Long Press] Dimming --> Dim [+/-] 4 bit DPT 3.007 Button 1…12 [Press] Shutter <-> Stop 1 bit DPT 1.017 Button 1…12 [Release]...
  • Page 8 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 Object Name Function Data Point Type Flags Dimming --> Rel. Dim [+/-] 4 bit DPT 3.007 Dimming --> Abs. Dim [%] 1 Byte DPT 5.001 Button 1…12 [Double Press] Dimming <-->...
  • Page 9 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 Object Name Function Data Point Type Flags Button 1…12 LED Status [0, 1] 1 bit DPT 1.001 Button 1…12 Lock 1 bit DPT 1.001 0=Unlock; 1=Lock 0=Lock; 1=Unlock Button 1…12 Lock (T)

  • Page 10: Parameters And Communication Objects

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4. Parameters and Communication Objects 4.1. General General parameters include; 1. In Operation Function 4. Cleaning Mode 7. Diagnostics 2. Telegram Limitation 5. Touch Feedback 3. First Telegram Sending Delay 6.
  • Page 11 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 Parameter Settings Description LOGIC BLOCKS Logic Blocks None, 1, 2 This parameter is used to select logic block count. DIAGNOSTICS Firmware Version Device Firmware version will be shown.

  • Page 12: Communication Objects

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.1.2. Communication Objects Object Name Function Data Point Type Flags In operation [0, 1] 1 bit DPT 1.017 In operation value (0,1) selected through “In operation bit” parameter will be sent via the group address which is linked to this communication object 0=Disable;...

  • Page 13: Led Brightness

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.2. LED Brightness This function is used to dim the buttons according to Bright (ON) and Dark (OFF) dim levels. Additionally, the buttons can be dimmed with another methods such as Ambient Light or Proximity dim.

  • Page 14: Led Color

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.3. LED Color 4.3.1. Parameters Parameter Setting Description CUSTOM COLOR Red, Yellow, Green, This parameter is used to select the type of color Custom Color Cyan, Blue, Magenta, changes for custom color option.

  • Page 15: Cleaning Mode

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.4. Cleaning Mode This function allows to lock the all buttons on device for unwanted control during cleaning. 4.4.1. Parameters Parameter Settings Description This parameter is used to select button locking...

  • Page 16: Communication Objects

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.4.2. Communication Objects Object Name Function Data Point Type Flags 0=Disable; 1=Enable 1 bit DPT 1.003 Cleaning Mode 0=Enable; 1=Disable 1 bit DPT 1.006 This object activates the Cleaning Mode to prevent unwanted control during cleaning the device.

  • Page 17: Sensors

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.5. Sensors These parameters are used to select Ambient Light dimming or Proximity dim. 4.5.1. Ambient Light This function allows the LED dimming change according to Day or Night time via own com object.

  • Page 18: Proximity

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.5.2. Proximity This function is used to dim the LEDs when device not using for a certain time. 4.5.2.1. Parameters Parameter Setting Description PROXIMITY (Presence/Absence) This parameter activates auto-dim according...

  • Page 19: Switch

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.6. Switch Select the desired operation from the “Button N” (N: Button number) parameter in General Tab in ETS Configuration. Push buttons have functions as switch, switch and dim, shutter and value operation.

  • Page 20: Switch Function

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.6.1. Switch Function Selecting “Switch” as “Push Button Function“ enables to send 1 bit On(1)/Off(0) telegrams to the group address that is linked to respective communication object. Touching and releasing buttons can be assigned to different commands (On, Off, Toggle and No Command).

  • Page 21: Dimming Function

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.6.2. Dimming Function When push button function selected as “Switch and Dim” push button can be configured in three different ways to control brightness value. Function Short Touch...
  • Page 22 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.6.2.1. Parameters Parameter Settings Description Darker (Short Touch Off) Select push button dim operation. Brighter (Short Touch On) Dim Operation (Explained on Chapter 4.4.2) Darker/Brighter (Short Touch Toggle)
  • Page 23 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 EAE Technology www.eaetechnology.com Page 23 / 34 ©...

  • Page 24: Shutter

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.6.3. Shutter Selecting “Shutter” for “Push Button Function” enables shutter operation for push buttons. Shutter functions can be configured to control two different shutter operations “Shutter/Venetian Blind” function or “Blind/Roller/Awning” function. In both functions push button can be configured as 3 different button function;...
  • Page 25 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 Roller Shutter When “Controller Type” configured as “Blind/Roller/Awning Function” lamella operations of blind control will be disabled and “short press” will only stop the movement of the blind. “Button Function” parameter enables the use of push button 3 different ways;...
  • Page 26 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.6.3.1. Parameters Parameter Settings Description Push Button Function Up / Down / Toggle Chapter 4.6.3 Venetian Blind Selects control type of blinds. Venetian Control Type Blind function has Lamella Control Roller Shutter (button-operation) additionally unlike the Roller Shutter.

  • Page 27: Value Operation

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.6.4. Value Operation Push button can be configured to send predefined values from different Data Types. Additionally, long, short or double press actions can be selected for each Value transmitting individually. Up to 4 value can be sent via one button.
  • Page 28 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 Visible when Data Type is selected #000000…#FFFFFF as “3-byte color” Visible when Data Type is selected 0…4294967295 as “4-byte unsigned” Value Visible when Data Type is selected –2147483648…0…2147483647 as “4-byte signed”...
  • Page 29 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.6.4.1. Communication Objects Object Name Function Data Point Type Flags Value --> 1-bit 1 bit DPT 1.001 1, 7, 13, Value --> 1-bit HVAC Control Mode 1 bit DPT 1.100 19, 25,31, Value <-->...

  • Page 30: Logic Block 1

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.7. Logic Block 1…2 4.7.1. I/O Configuration Logic Input and Output counts should be selected in this page. Parameter Setting Description I/O Config 1 Input / 15 Output...

  • Page 31: Inputs

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.7.2. Inputs 4.7.2.1. IN1…15 Parameter Settings Description 32 chracters are allowed. Any name can be defined for each Input. Name will be Name (Optional) shown in ETS Parameters and Group Objects page.
  • Page 32 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 Passthrough: Input will be proccessed as it is. NOT: Input will be reverted. Passthrough, Preprocess NOT, always True: Process will always be True regardless to (if Data Type : 1-bit) always True, input value.

  • Page 33: Outputs

    Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 4.7.3. Outputs 4.7.3.1. OUT1…15 Parameter Settings Description 32 chracters are Any name can be defined for each Output. Name will Name allowed. (Optional) be shown in ETS Parameters and Group Objects page.
  • Page 34 Product Manual Mona Switch V2 EAE KNX Mona Series MONA Switch R3.0 Parameter Settings Description Operation ( continues... ) Settings NOT Sum is 1 or 0: If the one of the input is “True” and (continues…) rest of all are “False” or all inputs are “False”, the result will be “False”.
