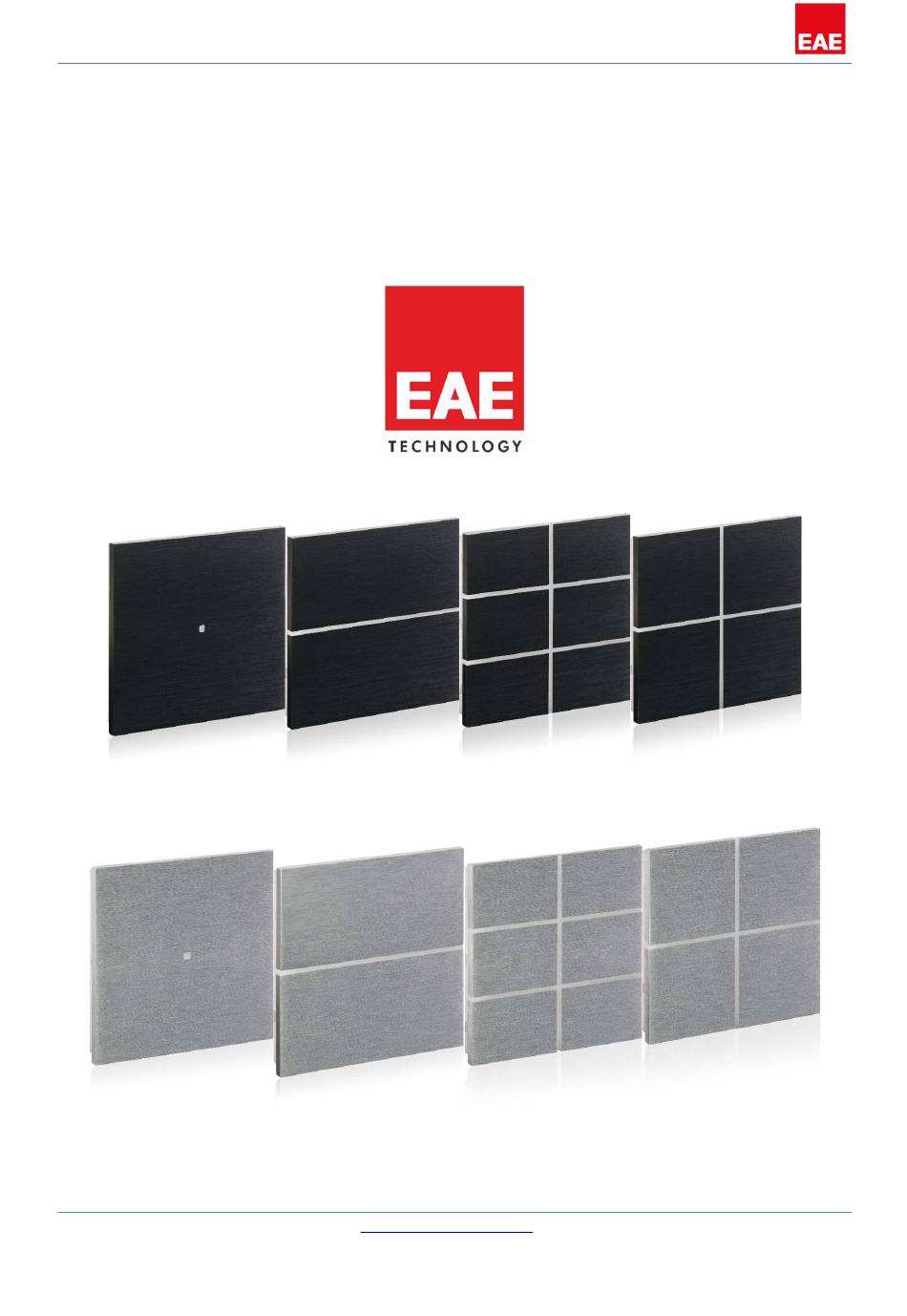

- Page 1 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB EAE ROSA SWITCH Product Manual Rosa Switch EAE Technology www.eaetechnology.com Page / 26 ©...
-
Page 2: Table Of Contents
Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB Contents General ..............................3 Device Technology............................ 3 Button Definitions ..........................3 Connection Diagram ......................... 3 Technical Data ..........................4 Dimensions ............................4 Communication Object Table ........................5 Parameters and Communication Objects ....................6 General ............................. -
Page 3: General
Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 1. General Rosa KNX switches offer a wide range of functional flexibility up to 6 programmable buttons. Rosa switches can be programmed for control lighting, shutter/blind drivers, speakers, make scene calls and mimic panic buttons. -
Page 4: Technical Data
Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB Technical Data Operating Voltage Voltage 21V… 30V DC, via the KNX bus Current drawn from bus <10mA Safety Rating Class IP 20, DIN EN 60529 II EN 61140 Connections... -
Page 5: Communication Object Table
Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 3. Communication Object Table Object Name Function Number of Bits Flags General, operation Active Rocker 1, switch On/Off Rocker 1, shutter Up/Down Rocker 1, value [0,1] Send Rocker 1, value [0…255] Send Rocker 1, value [0…65535]... -
Page 6: Parameters And Communication Objects
Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4. Parameters and Communication Objects General General parameters include; In Operation (Device Alive) Function Telegram Limit Function Rocker Count Light Duration Of Status Indication Function ... -
Page 7: Parameters
Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.1.1 Parameters Parameter Settings Description Enable In Operation Enable/Disable In operation can be used to ensure that device is alive and connected to KNX line. In Operation Bit Off/On Visible when “Enable In... -
Page 8: Rockers And Touch Buttons
Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB In operation value (0,1) selected through “In operation bit” parameter will be sent via the group address which is linked to this communication object Table 3 Rockers and Touch Buttons Total number of rockers can be selected through “Rocker Count”... -
Page 9: Rockers
Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.1 Rockers Number of rockers should be selected in “General” tabs in parameters and should be chosen as compatible with the device that will be configured. Rockers are numbered from top to bottom. Each Rocker contains 2 touch button separately. - Page 10 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.1.1.1 Parameters Parameter Setting Description Mode of Buttons Left Button On Right Button Select which button is ON button and which button is OFF button Left Button Off Right Button On...
- Page 11 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.1.2 Switch and Dim Figure 5 Rockers can be configured with switching and dimming capability. When configured as “Switch and Dim” rocker buttons will have two modes switch mode and dim mode. When rocker button touched shorter than time period specified in “Long Touch Duration”...
- Page 12 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.1.2.1 Parameters Parameter Setting Description Mode of Buttons Left Button Brighter(On) Right Select which rocker button is on Button Darker(Off) button and which rocker button is off / Left Button Brighter(Off) Right Button...
- Page 13 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.1.2.2 Communication Objects Object Name Function Data type Flags Rocker1 – switch On/Off 1 bit DPT 1.001 On/Off telegrams will be send to group address that is linked to this communication object.
- Page 14 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB When “Up Button” long touched “Up” telegram will be transmitted using “Rocker1 – Shutter UP/DOWN” communication object and shutter will start moving upwards until it reaches “Top Position” or “STOP”...
- Page 15 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB *[5] LED Function – Status Indication Status indication operates the same way for “Shutter/Venetian Blind” and “Blind/Roller/Awning”. LEDs status respective to blind’s state is given below Up Button - Status LED...
- Page 16 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.1.4 Value Operation Figure 7 Rocker buttons can be configured to send predefined values from different data types. Values selected for both rocker buttons will be transmitted over the same communication object.
- Page 17 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB Float rational 0…99 Visible when “Data Type” selected as “4 byte value [floating point]”. Transmitted value 0…4294967295 Visible when “Data Type” selected as “4 byte value [0…4294967295] [0…4294967295]”. Right Button of Rocker – Operate the same way as Left Button of Rocker Table 13 4.2.1.4.2...
-
Page 18: Touch Buttons
Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.2 Touch Buttons Number of rockers should be selected in “General” tabs in parameters and should be chosen as compatible with the device that will be configured. Touch buttons are numbered from top to bottom –... - Page 19 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.2.1.1 Parameters Parameter Setting Description On / Off / Toggle / No command Selects button function when button Command on Touch touched. Command on Release On / Off / Toggle / No command Selects button function when button released.
- Page 20 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.2.2 Switch and Dim Figure 9 When touch button function selected as “Switch and Dim” touch button can be configured in three different ways to control brightness value. Short Touch...
- Page 21 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.2.2.1 Parameters Parameter Setting Description Darker (Short Touch Off) Dim Operation Select touch button dim operation. Brighter (Short Touch On) (For more information Chapter 4.2.2.2) Darker/Brighter (Short Touch Toggle)
- Page 22 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.2.2.2 Communication Objects Object Name Function Data type Flags TouchButton1 – On/Off 1 bit switch DPT 1.001 On/Off telegrams will be sent to group address that is linked to this communication object.
- Page 23 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB Toggle: “Long Touch” moves the blind upwards or downwards toggling the last “Long Touch” action. For example, if last state was up, when touch button long touched, it will send “Down”...
- Page 24 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.2.3.2 Communication Objects *[6] LED Function – Status Indication Status indication operates the same way for “Shutter/Venetian Blind” and “Blind/Roller/Awning”. LEDs status respective to blind’s state and “Button Function” configuration given below;...
- Page 25 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB 4.2.2.4.1 Parameters Parameter Setting Description LED Permanently Off LED always off Function of Led LED Permanently On LED always on Operation Indication Status LED of the touched rocker button will be on for the time period selected at “Light Duration of LED”...
- Page 26 Product Manual Rosa Switch EAE KNX Rosa Switch Rosa Switch PB Transmitted value [- -32768…0…32767 Visible when “Long Touch Data 32768…32767] Type” selected as “2 byte value [- 32768…32767]”. Transmitted value [0…65535] 0…65535 Visible when “Long Touch Data Type” selected as “2 byte value [0…65535]”.
