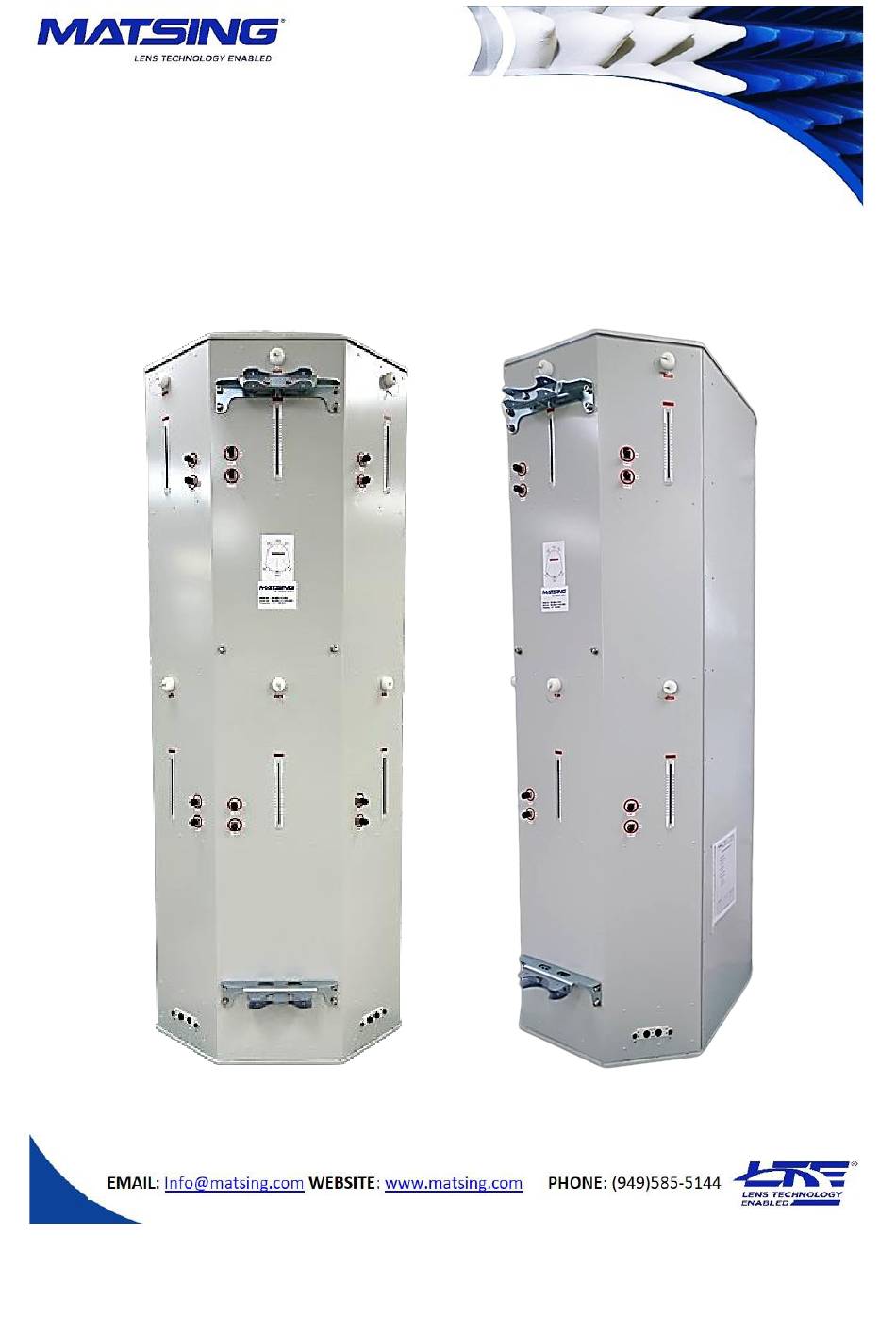

- Page 1 MS-MBA-3-L4A2 RET Operation Manual MS-MBA-3-L4A2 Operation Manual Rev 0 180124.xlsx Page 1 of 3...
- Page 2 1.00 This Antenna Model Come With Standard Two MDCU controllers Factory default firmware for the MDCU Controller is MRET (Type 17). Single AISG Input Dual AISG Input IN-1 Controls LB Beams 1 IN Controls LB Beams 3 IN-2 Controls LB Beams 2 2.00 Antenna General Information MS-MBA-3-L4A2...
- Page 3 3.00 RET Operations / Information A standard AISG 2.0 compliant cable (not included) is used to connect the MDCU to the AISG interface control. Once connected, use an AISG 2.0 compliant Control software to perform a Sub Unit SCAN to identify the RET Elements. 3.10 Display &...
