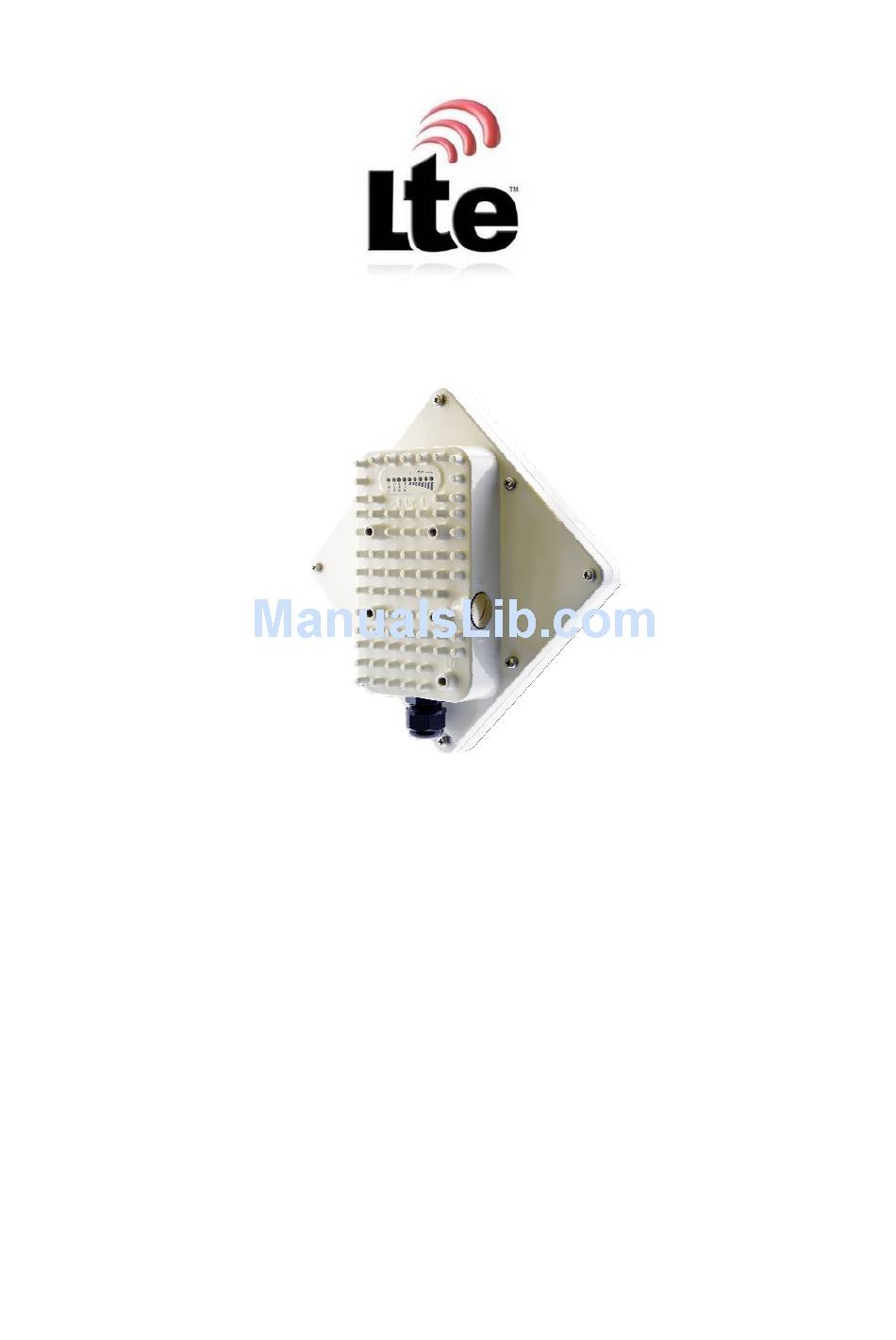

- Page 1 GlC130D-/43 Outdoor CPE User Manual Page 1...
-
Page 2: Table Of Contents
......................... 5 NSTALLING THE QUIPMENT Device logic connection ........................5 Installing Outdoor Unit (ODU) ......................6 LED Display ............................7 3. MANAGING CPE DEVICE ........................7 3.1. ... - Page 3 PLEASE READ THESE SAFETY PRECAUTIONS! RF Energy Health Hazard The radio equipment described in this guide uses radio frequency transmitters. Although the power level is low, the concentrated energy from a directional antenna may pose a health hazard. Do not allow people to come in close proximity to the front of the antenna while the transmitter is operating.
-
Page 4: Overview
1. Overview The ODU is a high performance 4G LTE outdoor CPE product designed to enable quick LTE fixed data service deployment to the remote customers. It provides high data throughput and networking features to end users who need both bandwidth and quality service in the remote area. -
Page 5: Installing The Equipment
Table 2-1 Packing List Outdoor CPE Products Quantity ODU unit Power adapter Power Line Mounting brackets PC Ethernet Cable If you find any of the items missed, please contact our local distributor immediately. CPE Unit： Please unpack the package and check the units as following list. -
Page 6: Installing Outdoor Unit (Odu)
Installing Outdoor Unit (ODU) Mounting Bracket:: Header Connection: Page 6... -
Page 7: Led Display
4 green LEDS:-95dBm<=RSRP< -85dBm 5 green LEDS:-85dBm<=RSRP 3. Managing CPE Device The ODU supports several management interfaces including TELNET, WEB, and TR-069 for local or remote managements. However normal end user is only provided with WEB based access 3.1. WEB Login--192.168.0.1... -
Page 8: Lte Status Display-Overview
3.3. LTE Configuration Radio Settings-ND&S Configure There is a LTE radio button which is used for the user can turn the radio on or off to restart the LTE module. The CPE would scan frequency auto as soon as the system has completed the startup... -
Page 9: Apn Setting-Bearer Configure
Note: After configure any parameters of the device, you must click the “Save & Apply” button to save the configuration otherwise the configuration will not take effect. APN Setting-Bearer configure The Bearer List is design for the operator to configure the APN. You can configure the only one APN for all the service classes, as follow: And the operator also can configure two APNs for Manage and data service classes. -
Page 10: Modify Mtu Size
Modify MTU Size The default Operation Mode is Router, and the PC of the user that connected to device LAN port will obtain IP address via DHCP server of the device. The default MTU Size is 1400, user can modify the MTU Size if necessary ... -
Page 11: Service Configuration-Dmz Setting
The operator’s PC which connected the LAN port of CPE will auto obtain the IP of APN Net when the CPE attached to the APN network, then you can connected to the APN network for data services. And the PC should configure a static IP address as 10.1.1.x manual in order to visit the CPE managing page http://10.1.1.1 3.5. -
Page 12: Tr069 Configuration
cmd shell and run command: telnet 192.168.0.1 Login: root Password: root123 TR069 Configuration After setting the Device Management Mode as TR069, you must also configure the validity ACS URL for monitoring the device via standard TR-069 ACS systems. Page 12... -
Page 13: Firmware Upgrade Over Http
Firmware Upgrade over HTTP Select the Default settings to reset the CPE after upgrade Click on the Browser button to select the firmware file to be uploaded to the device. Click the” Upgrade” button to begin the upgrade process. Please do not interrupt the upgrade process and continue to wait for the following pop window appear. -
Page 14: Change Password
Change Password You can select the language or modify the web login password via the Maintenance page. Load Factory Default Click the “Restore” button will restore the device to original factory setting. User will need to reconfigure the authentication setting in order to get the device operational. Maintance—>System Rest—>Restore 4. - Page 15 If the problem persists, please contact the operator or distributor for further diagnose. My CPE networking is not working properly. You may want to check if the LTE connection is up and running properly. You can do this by login the WEB GUI and check the Interface Info page.
