GAMMA instabus

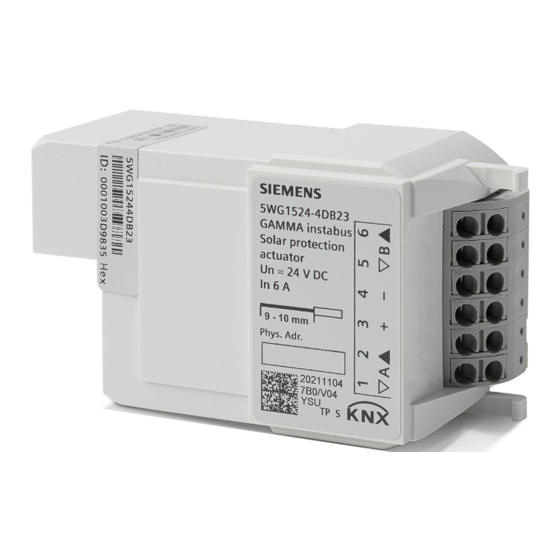

Solar protection actuator 2 x 6 A DC
RL 524D23
A6V12883340_en--_a
2023-05-22
The solar protection actuator is used to control shutters, awnings, sunblinds or
ventilation flaps with DC 24 V.
●
End position detection by current detection for automatic move time determination.
●
Built-in device for installation in an automation module box AP 118, which has to
be ordered separately
●
Maintenance-free terminals for connecting and looping through solid, stranded and
fine-stranded conductors.
Functions for configuration with ETS:
●
Extensive control and override functions and status messages for each channel
●
On-site control of the drives
●
Direct moving to element or slat positions.
●
Automatic control of the drives with configurable behavior when the sun is shining
(sun tracking control)
●
Scene control for calling up and storing defined element positions
●
Safety functions through overrides in case of wind, rain, frost, moving blocks etc.
Smart Infrastructure
Building Products
Advertisement
Related Manuals for Siemens RL 524D23
Summary of Contents for Siemens RL 524D23
- Page 1 GAMMA instabus Solar protection actuator 2 x 6 A DC RL 524D23 The solar protection actuator is used to control shutters, awnings, sunblinds or ventilation flaps with DC 24 V. ● End position detection by current detection for automatic move time determination.
- Page 2 DC 24 V FELV is supplied centrally via separate connection terminals to control the motor drives. Solar protection actuator RL 524D23 consists of the device (hardware) and the application program (software). Depending on its use, each relay output channel can be assigned differ- ent functions.
- Page 3 ◈ Briefly press the programming button (1) (< 2 seconds). a Programming mode is deactivated. a The programming LED (2) is not illuminated. Resetting the device to factory settings A very long push of the programming button of more than 20 seconds resets the device to its factory settings.
- Page 4 The stored default settings of the positions can also be changed without programming the device via KNX. To do this, the blinds must be moved to the desired element height. This new position with the value “0” and “1” is copied to the memory of the device via the commu- nication objects “position 1/2”...
- Page 5 Schematic design of a solar protection actuator channel The following scheme shows the function of a channel of the solar protection actuator using the “blind” function in a logical context. 8-bit Recall/store positions 1-bit Manual operation Solar protection via dimming Delay Automatic operation Delay...
- Page 6 Position and function of the operating and display elements and connections Fig. 2: Position and function of the connections and labeling, operating and display elements Solar pro- tection actuator RL 524D23, 2 x 6 A DC Pos. Connection, operating or display...
- Page 7 Type Designation Item number KNX PL-Link Solar protection 5WG1524-4DB23 actuator, 2 x 6 A, DC 24 V RL 524D23 Scope of delivery Module for installation in AP 118 automation module box. Accessories Type Order number Designation 5WG1118-4AB01 Automation module box AP 118 Table 1: Automation module box AP 118...
- Page 8 Areas of use The device is installed in an automation module box AP 118 in dry interior spaces. Connecting motors to the relay contacts Fig. 3: Solar protection actuator RL 524D23, 2 x 6 A DC 0.5...2.5 mm² 2.5 mm² Smart Infrastructure...
- Page 9 Connecting KNX Fig. 4: Solar protection actuator RL 524D23, 2 x 6 A DC 0.6…0.8 mm Testing KNX 24 V DC type. SELV This test can be used to check whether the bus connection cable is connected with the cor- rect polarity and whether device is supplied with bus voltage.
- Page 10 Disposal The device is considered an electronic device for disposal in accordance with European Directive and may not be disposed of as domestic waste. ● Use only designated channels for disposing the devices. ● Comply with all local and currently applicable laws and regulations. If a device is defective, contact the local sales office.
- Page 11 Technical data Power supply KNX bus voltage DC 24 V (DC 21...30 V) KNX power consumption 15 mA KNX power loss (power consumption) 0.15 W Outputs Number of drive channels Switching voltage DC 24 V Output current Rated current per channel Rated current per device 10 A Current sensing for move time determination >...
- Page 12 Protection settings Housing protection class (according to EN IP20 (when installed AP 118) 60529) Electrical safety, bus (SELV) Electrical safety, device fulfills EN 50428 EMC requirements, device complies with EN 50428 Test mark KNX, EAC, RCM, WEEE, China-RoHS CE mark Reliability Failure rate (at 40°C) 1024 fit...
- Page 13 Dimension drawing Compliance information Smart Infrastructure A6V12883340_en--_a GAMMA instabus 2023-05-22...
- Page 14 Issued by © Siemens 2023 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies Document ID A6V12883340_en--_a Edition 2023-05-22...
