- Page 1 CUSTOM SCRIPT PHASE Operation Manual...

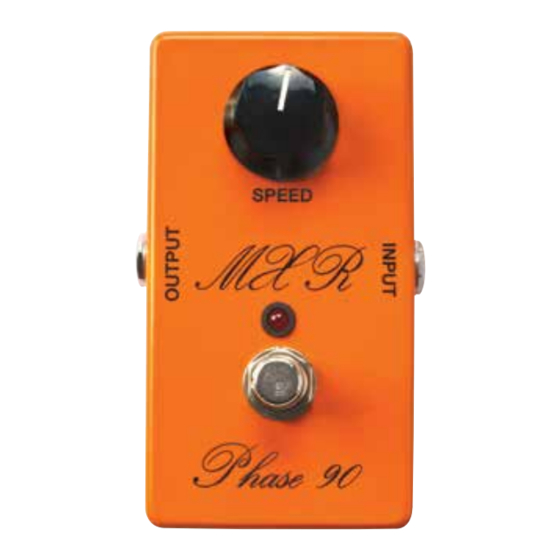

- Page 2 CSP101Sl SCRIPT PHASE 90 DESCRIPTION DIRECTIONS SPECIFICATIONS • Built to original 1974 circuit design • Run a cable from your guitar to the Input Impedance 470 kΩ Script Phase 90’s Input jack and run • Features AC power jack and on/off Output Impedance 10 kΩ another cable from the Script Phase status LED Max Input Level -5 dBV 90’s Output jack to your amplifier. • True bypass Noise Floor* > 95 dB • Start with the SPEED knob at Current Draw 8.2 mA POWER 12 o’clock. Bypass True Hardwire The MXR Script Phase 90 is powered • Turn the effect on by depressing by one 9-volt battery (remove bottom Power Supply 9 volts DC the footswitch.
