CSP039 MXR
Duke of Tone Overdrive
Designed in conjunction with indie pedal builder
Analog Man, the MXR Duke of Tone Overdrive is for
players who want to add a touch of warmth and grit
to their rig while allowing the natural tone and feel of
their high-end gear to shine.
jimdunlop.com/csp039
®
™
CSP039
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for mxr Duke of Tone
Summary of Contents for mxr Duke of Tone
- Page 1 ™ Designed in conjunction with indie pedal builder Analog Man, the MXR Duke of Tone Overdrive is for players who want to add a touch of warmth and grit to their rig while allowing the natural tone and feel of their high-end gear to shine.

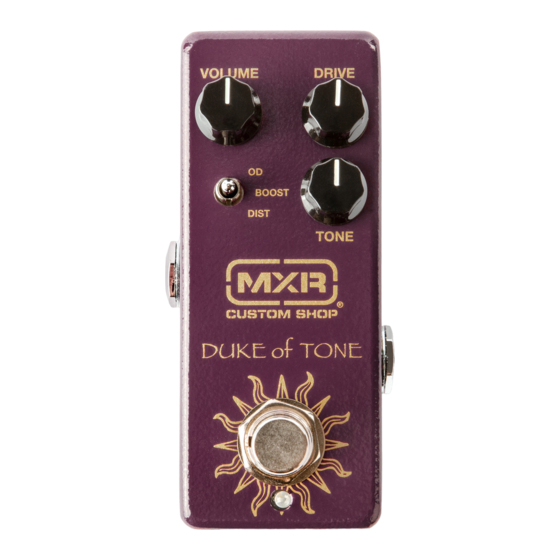

- Page 2 External Controls Footswitch toggles effect on/off (white LED indicates on) OD/BOOST/DIST switch sets clipping mode VOLUME knob adjusts overall output level DRIVE knob adjusts overdrive intensity TONE knob adjusts overall EQ CSP039 | MXR Duke of Tone Overdrive 2 ® ™...
- Page 3 1. Run an instrument cable from your instrument to the ® ™ CSP039’s INSTRUMENT jack and another instrument by the Dunlop ECB003 9-volt adapter or an MXR ® cable from the CSP039’s AMPLIFIER jack into your Brick Series power supply. This pedal cannot be ™...
- Page 4 Specifications Input Impedance > 450 k Ω Output Impedance < 10 k Ω Bypass True Bypass Current Draw 6 mA Power Supply 9 volts DC CSP039 | MXR Duke of Tone Overdrive 4 ® ™...
