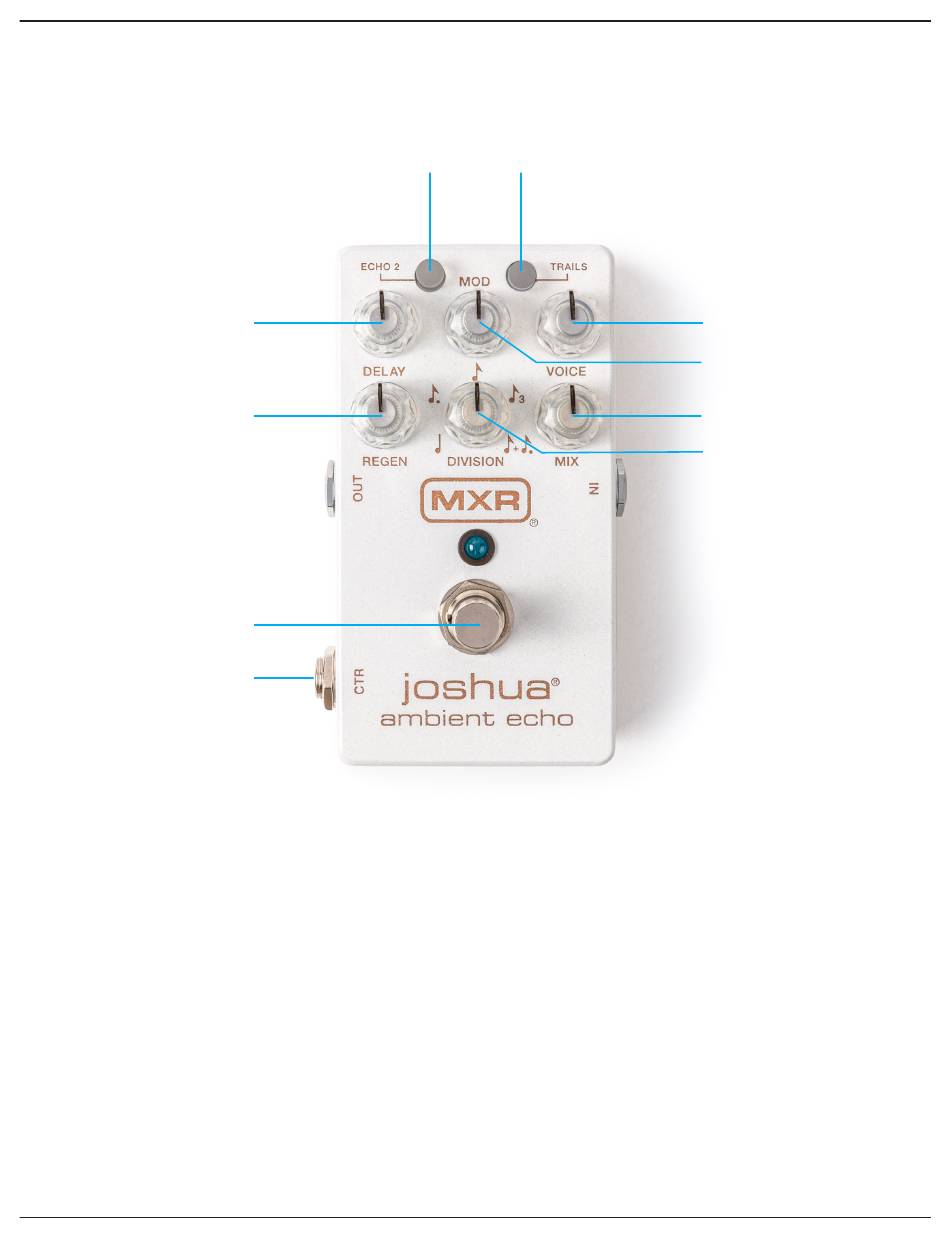

External Controls

1 CTR jack allows an expression pedal to control settings or a tap switch to set tempo of echoes
2 FOOTSWITCH toggles effect on/bypass (large blue LED indicates on) and engages Tap mode
3 REGEN knob sets number of echoes
4 DELAY knob adjusts tempo of echoes
ECHO 2 button adds secondary echoes at ¼ note tempo (illuminates blue when on)
5
6 TRAILS button toggles effect Trails mode on/off (illuminates red when on)
7 VOICE knob adjusts mix of -1, +1, and +2 octave signal blend
8 MOD knob adjusts intensity of modulation
MIX knob adjusts overall volume of effect signal
9
10 DIVISION knob selects ratio of primary echoes to the tempo
4
3
2
1
5 6
7
8
9
10
M309 | MXR Joshua Ambient Echo 2
® ®
