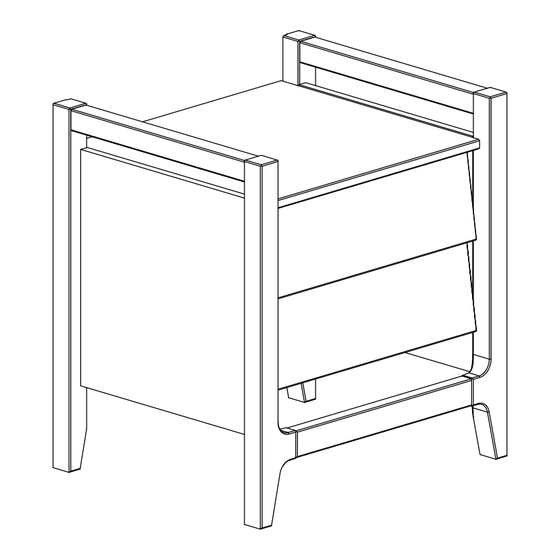

Item # : OSWB4C
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, to report damage
or request parts. www.walkeredison.com
Revised 07/23 - V5
P.1
Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
Advertisement
Related Manuals for Walker Edison OSWB4C
Summary of Contents for Walker Edison OSWB4C
- Page 1 Item # : OSWB4C Assembly Instructions Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 07/23 - V5 Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
- Page 2 and hammmer VII. Maintenance Guide To maintain long term performance and easy gliding of your solid wood drawers, we recommend applying wax to the wooden guide rails. 1. Bee's wax is recommended or Paraffin wax from a standard candle can be used. 2.
- Page 3 Part# Description Part# Description Top panel 01 pcs Right back foot 01 pcs Right side Left front foot 01 pcs 01 pcs Left side Left back foot 01 pcs 01 pcs Right side drawer Bottom rear crossbeam 01 pcs 02 pcs Drawer runner Left side drawer 04 pcs...
-
Page 4: Hardware List
Hardware List Wooden dowel Ø8*40mm Wooden dowel Ø8*30mm Screw Ø4,0*30mm Cam bolt Cam lock Ø15*09mm Ø8*8 Nail Screw Ø7,0*50mm CB 10 Hex key Wooden dowel Ø10*20mm Tape measure and hammer recommended for assembly (not included) - Page 5 Step 1 Please assemble on a clean soft surface to avoid damage. Insert wood dowel (B) into parts (1, 2, 3, 4, 12, 13). Ø8*30mm Step 2 Attention to the dowel size: Ø10*20mm Please assemble on Insert wood dowel (I) a clean soft surface into part (25).
- Page 6 Step 3 Attention Use screw (C,) to a ach parts (17) to part (8, 10), with Phillips head screwdriver. Attention Ø4,0*30mm Step 4 Heads up: 06 holes up Attention Use screw (C,) to a ach parts (3) to part (10). Please assemble on with Phillips head screwdriver.
- Page 7 Step 5 Heads up: 06 holes up Attention Use screw (C) to a ach Please assemble on parts (2) to part (8), a clean soft surface with Phillips head screwdriver. to avoid damage. Ø4,0*30mm Step 6 Please assemble on a clean soft surface to avoid damage.
- Page 8 Step 7 Please assemble on a clean soft surface to avoid damage. Use screw (C) to a ach part (11) to part (3), Ø4,0*30mm with Phillips head screwdriver. making it the right side (19). Use screw (G) to a ach Ø7,0*50mm cb 10 parts (11) to part (17) whit Hex Key (H)
- Page 9 Step 9 NOTE: The extra holes in part (5) should face the top of parts (18,19) Use screw (C) to a ach part (5) to Please assemble on parts (18, 19) with Phillips head a clean soft surface screwdriver. to avoid damage. Ø4,0*30mm Step 10 Secure parts (1) to part (19).
- Page 10 Step 11 Secure parts (1) to part (19). Insert cam locks (E) into part (1) and ghten with a phillips head screwdriver. Ø4,0*30mm Use screw (C) to a ach parts (4, 7) to part (18) with Phillips head screwdriver. Ø15*09mm Step 12 Name and address of...
- Page 11 Step 13 Use screw (C) to a ach parts (12, 13) to part (16) with Phillips head screwdriver. Ø4,0*30mm Step 14 Insert panel (14) into parts (12, 13). Use screw (C) to secure part (15) to parts (12, 13) with Phillips head screwdriver.
- Page 12 Step 15 Ø8*30mm Insert wood dowel (B) Insert the dowels (B) into the drawer slide. Step 16 Ø8*40mm Insert wood dowel (A) Insert wood dowel (A) on the inside of all drawers, with the drawer inside the unit, a er having passed the wood dowel that is in the drawer slide.
- Page 13 Step 17 Assembly Complete! P.13...
