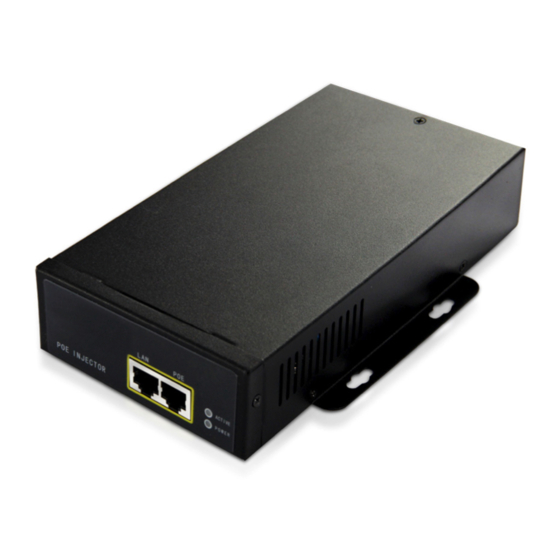

Gigabit PoE++ Injector, 802.3bt
Manual
DN-95107
Introduction
The Digitus PoE Injector minimizes your cabling when installing PoE
compatible devices such as IP network cameras. Only the Ethernet cable
is used for the data feed and power supply for the devices. This
eliminates the need to install a separate power line, and you can extend
your network where there are no power outlets or power lines. The
injector is fully compatible with the IEEE 802.3af/at/bt PoE standard and
delivers output power of up to 95W.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus professional DN-95107
Summary of Contents for Digitus professional DN-95107

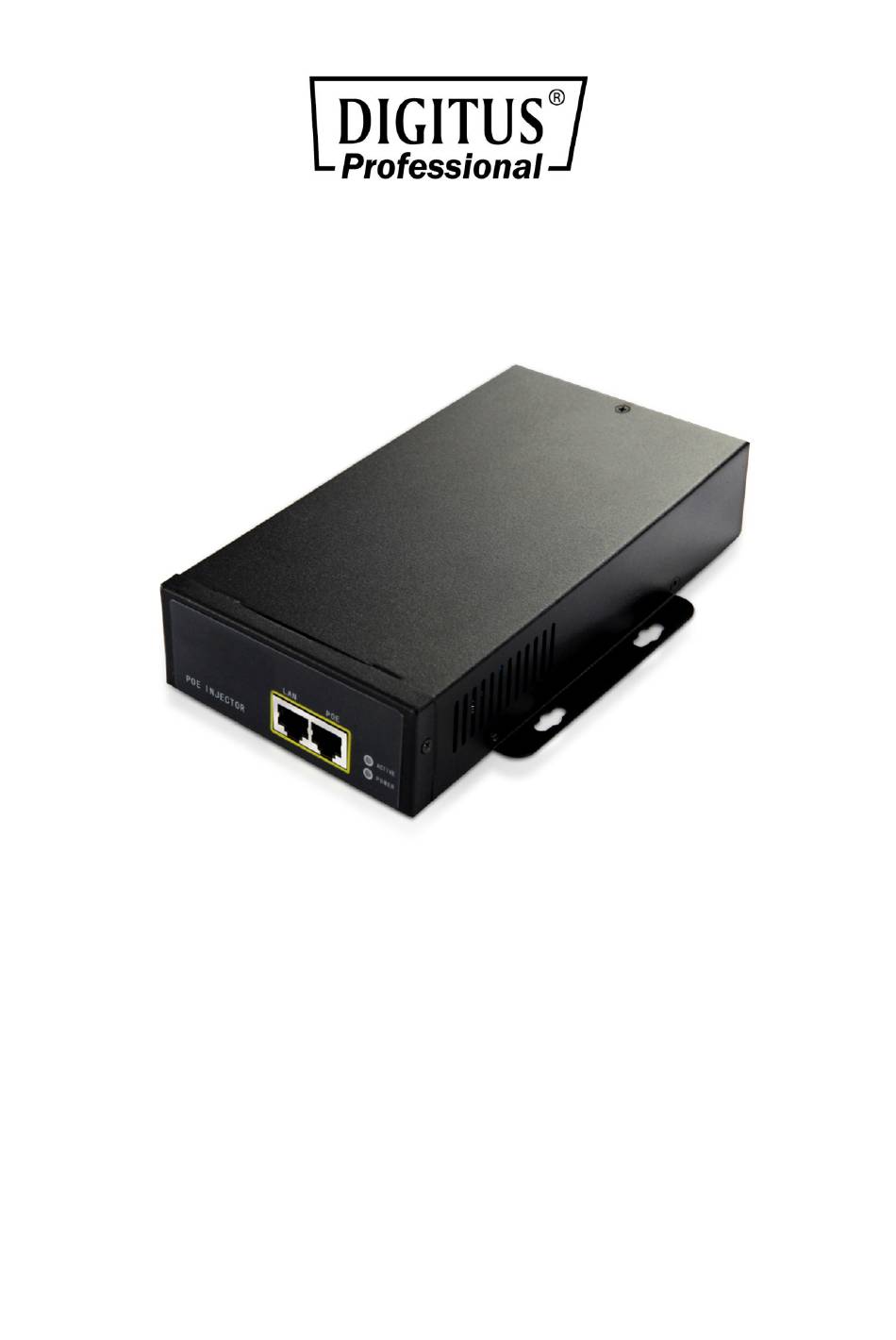

- Page 1 Gigabit PoE++ Injector, 802.3bt Manual DN-95107 Introduction The Digitus PoE Injector minimizes your cabling when installing PoE compatible devices such as IP network cameras. Only the Ethernet cable is used for the data feed and power supply for the devices. This eliminates the need to install a separate power line, and you can extend your network where there are no power outlets or power lines.
- Page 2 1. LAN Data Input Port 4. Load Activations instruction 7.8.9.10. Install Hole 2. PoE Power Output Port 5. AC Power Input 3. Power Instruction Light 6. GND Key Features - AT chip detection before supply power - Output power is 95W - Output current is 1.75A - Power pin: 4/5(+), 7/8(-) and 3/6(+), 1/2(-) - Compact design, high-power, lower cost...
- Page 3 Specifications Standard - IEEE802.3 10Base-T Ethernet - IEEE802.3u 100Base-Tx Fast Ethernet - IEEE802.3ab 1000Base-T Gigabit Ethernet - Support IEEE802.3af/at/bt standard PD PoE Power Output - Power pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) - Data Rate: 10/100/1000Mbps - Output Voltage: 55V - Output Current: 1.75A - Input Power: 100-240VAC - Required AC Current Input: 2.0A@100-240VAC - AC Hz: 50-60Hz...
- Page 4 LED Instruction - AC POWER LED: Green - Active Load LED: Green Working Environment - Operating Temperature: -40 to +65°C - Operating Height: -304.8 meters to 3048 meters - Operating Humidity: Maximum 90%, Non-condensing AC Surge Protection - 1.5KA (8/20us) - 2.0KV (1.2/50us) - 6KV PoE Surge Protection...
- Page 5 Outline Drawing...
- Page 6 Working Functional Picture Data & Power Data AC Power IP Camera High power PoE Midspan Switch Indoor Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
