- Page 1 PoE+ INJECTOR, 802.3af, 10/100/1000 Mbps, 15.4 Watt Manual DN‐95102‐1 ...

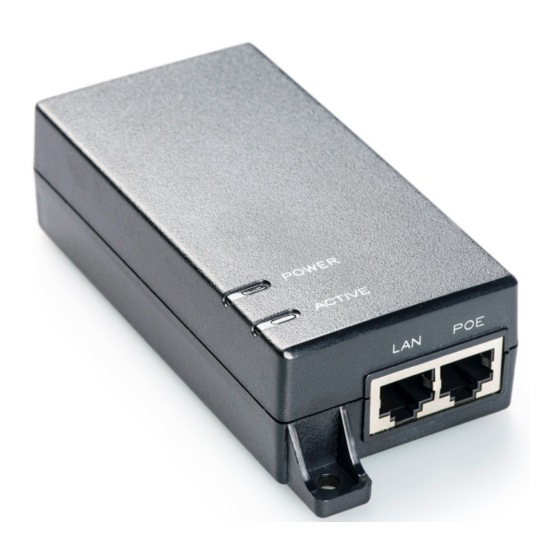

- Page 2 Introduction DN‐95102‐1, the single‐port PoE injector, it provides 15.4W and it ensuring safe operation of any standard PoE data terminal. DN‐95102‐1 offers a cost effective, IEEE 802.3af compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations. DN‐95102‐1 designed as AC input PoE injector with 100‐240V AC input. It is easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network. Package Content PoE Injector x 1 AC Power cable x 1 Product manual x 1 1. Power instruction 4. PoE power input 2. Load activations instruction 5. Installation holes 3. Data input port 6. AC power input ...
-
Page 3: Outline Drawing
Key Features ‐ Detection chip inside, will do detection before power ‐ Output power 15.4W ‐ Output current 320mA ‐ Power Pins: 4/5(+), 7/8(‐) ‐ Small size, lower cost. ‐ Support power for IEEE802.3af at terminal equipment Outline Drawing POWER ACTIVE LAN POE ... -
Page 4: Specifications
Specifications Standard ‐ IEEE802.3 10Base‐T Ethernet ‐ IEEE802.3u 100Base‐Tx Fast Ethernet ‐ Support IEEE802.3af standard terminal equipment PoE Power Output ‐ Power Pins: 4/5(+), 7/8(‐) ‐ Data Rate: 10/100/1000Mbps ‐ Output voltage: 48VDC ‐ Output current: 320mA ‐ Input AC voltage: 100‐240VAC ‐ AC input current: 0.5A@100‐240VAC ‐ AC Hz: 50‐60Hz Dimension & Weight ‐ Size: 134mm*56mm*33mm ‐ Weight: 175g ... - Page 5 Application Picture Data & Power or or Data AC Power Wireless AP IPC IP Phone AC Power Single Port PoE Midspan Switch Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. ...
