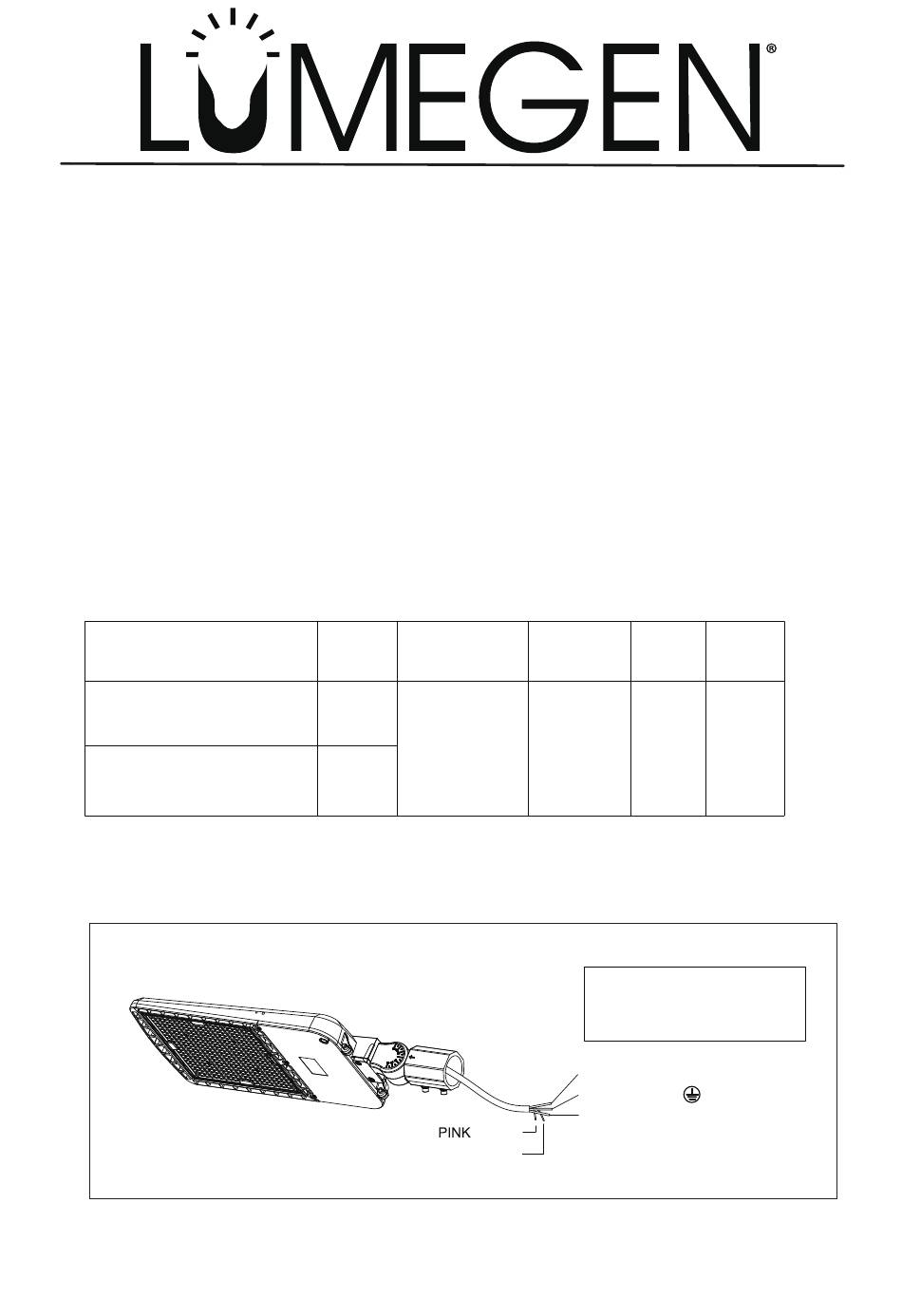

Area Light Instruction Manual
Read this instruction carefully before installation. Keep it for further reference. Make electrical and grounded connections in
accordance with the national electrical code and any applicable code. Always turn off the power supply before installation.
This product must be installed in accordance with the applicable installation code by a qualified electrician who is
familiar with the construction and operation of the product and the hazards involved.
Cautions:
1 Can not use the electric generator to test the LED lamp.
2 Please abide by related country, regional and local law and regulations when install this fixture.
3 To avoid electrical shock and damage, please do not install the lights in raining days.
4 To prevent from electric shock or fire risk, the installation must be conducted by operator who have
professional electrical knowledge.
5 Please wear gloves to avoid injury before installing lamps.
6 During or after installation, if there are situations such as smoke, fire in the wires or lamps, please
turn off the power immediately and notify relevant personnel of an overhaul.
7 This light can be used for outdoor installation.
Power
70W/100W/150W
200W/240W/300W
Wiring Diagram:
Working
Input Voltage
Current
1.375A
AC120-277V
2.75A
：DIM-
PURRLE：DIM+
1
Luminous
CCT
Warranty
Efficacy
3000K;
130lm/W
4000K;
5000K;
As for the wire color of
DIM + and DIM - , pls check
the lamp label !
Black / Brown：ACL
Green / Yellow：
White / Blue：
ACN
5 Years
Advertisement
Related Manuals for LUMEGEN LG-AL-70/100/150W-H3-TP-50K
Summary of Contents for LUMEGEN LG-AL-70/100/150W-H3-TP-50K
- Page 1 Area Light Instruction Manual Read this instruction carefully before installation. Keep it for further reference. Make electrical and grounded connections in accordance with the national electrical code and any applicable code. Always turn off the power supply before installation. This product must be installed in accordance with the applicable installation code by a qualified electrician who is familiar with the construction and operation of the product and the hazards involved.
- Page 2 Optional Brackets and Installation Instructions There are 8 optional brackets for this fixture. The following is shoebox fixtures with different brackets. TYPE A TYPE B TYPE C TYPE D TYPE E TYPE F TYPE G TYPE H...
- Page 3 Operation Instruction of Rotating Optical Lens Step 2.Remove the optical lens, rotate it Step 3.Put back the adjusted optical lens, Step 1.First loosen the fixing screws on the lens screws (total 24PCS), as shown clockwise or counterclockwise to a desired lock screws back, as shown in the figure.
- Page 4 Step 7 :Loosen the locking bolt in the slip-fitter by a wrench to adjust fixture to a appropriate angle,adjustable angle range 90 then this locking bolt. Locking bolt fixed base lamp holder Screw Iron bar AC input wires Junction box Fixing screws Iron bar Iron bar...
- Page 5 pink pink Step 7：1. Push the connected wires into the pole, close the pole’s top cover,the close the junction box cover by tightening the screws. Step 7：2. Push the connected wires into bracket junction box，close the box cover by tightening the screws,then close the pole’s top cover.
- Page 6 figure Screw Iron bar AC Wire Junction box Fixed Screw Iron bar Iron bar Rubber gasket...
- Page 7 Step 2 : Knock the two expansion bolts into wall with a hammer Step 1 : Mark the fixing holes locations on the wall with Type D bracket, then drill the hole in 10mm diameter with an electric drill; electrical drill hammer Wall expansion bolt...
- Page 8 electrical drill Wall 76-96/(64-104) Ø10 installation hammer surface expansion bolt...
- Page 9 Bracket Holder Bracket A Bracket B Screws fox fixing the bracket holder Pole Connection plate...
- Page 10 Microwave sensor PIR sensor...
- Page 11 TYPE G – (Square/Round pole-mount) Step1: Unscrew with a screwdriver and remove the iron bar, Step 2: Put the iron bar into pole, fix it with a screw, but reserve gaps of 32mm, pass the Type G bracket through the screw and hang it on the screw, press junction box cover of TYPE G bracket to open it.
- Page 12 Step 5.2 : Put the connected wires into the TYPE G junction box, close the junction box cover close the pole's top cover, as shown in fig. Step 7: How to install photocell, Type G bracket offers two mounting ways: 7.1.1): Hit the photocell knock-out on the Type G bracket with a hammer, as shown in fig.
-
Page 13: Bracket Installation
TYPE H (3 in 1 bracket) Bracket Installation 1 STEP 1.Loosen the screw of fixing base, separate STEP 2.Pass the fixture AC input wire through fixing base, lock the bracket and fixing base, as shown in the figure. the fixing base to the fixture, as shown in the figure. Bracket Fixing base STEP 4. - Page 14 Step 4: Pass the fixture AC input wire through bracket and out from junction box, lock the fixture to bracket, as shown in the figure. Step 5: Connect the fixture AC input wire to line voltage AC input Step 6: After connecting the wires, put the wires into the junction wire,L connect to L(black-black), N connect to N(White-White), box and lock back box cover, as shown in the figure.
- Page 15 Wiring diagram without photocell and motion sensor. (DIM-) (DIM+) LINE (Black) AC INPUT PINK (DIM-) NEUTRAL(White) PURPLE (DIM+) PE(Green) LINE (Black) LED FIXTURE NEUTRAL(White) PE(Green) Wiring diagram with photocell. LOAD (Red) LINE (Black) LINE (Black) NEUTRAL(White) NEUTRAL(White) PE(Green) AC INPUT NEUTRAL(White) (DIM-) LINE (Black)
