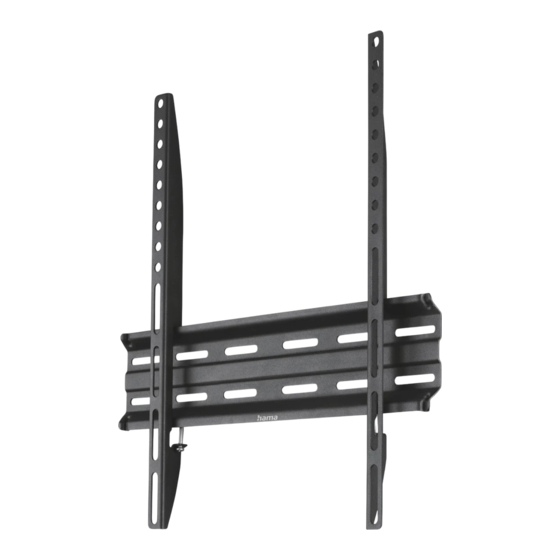

- Page 1 220809 TV WALL BRACKET G Operating Instructions...
-
Page 2: Table Of Contents
Contents 1. Explanation of warning symbols and notes ......3 2. Package contents ..........4 3. -
Page 3: Explanation Of Warning Symbols And Notes
G Operating Instructions Thank you for choosing a Hama product. Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, pass on the illustrated quick start guide and the safety instructions in printed form to the new owner. -
Page 4: Package Contents
2. Package contents • TV wall bracket • VESA arms (2x) • Spirit level • Mounting kit • Safety instructions, illustrated quick start guide Mounting kit 6x50 (x4) M8x12 (x4) Ø8x50 (x4) M8x20 (x4) M6 (x4) M8x30 (x4) M6 (x4) M8x50 (x4)* Ø8x10 (x4) M4x12 (x4) -
Page 5: Safety Instructions
4. Safety instructions Warning • Given the multitude of terminal devices and wall structures available on the market, the supplied mounting kit is unable to cover every option. • It occasionally happens that the screws for attaching the device to the bracket are too long. •... -
Page 6: Preparation And Assembly
6. Preparation and assembly Note • Never install the bracket alone. Seek assistance and help! • Different end devices have different connections for cabling and other devices. Before commencing the installation, check whether the necessary connections can still be reached after mounting. •... -
Page 7: Mounting On The Wall
6.1 Mounting on the wall 6.1.1 Preparing the intended mounting surface Get support and help from other people for the following assembly steps. 8 mm 60 mm Ø 8 mm • First use the bracket as a template and re-measure if necessary to ensure that the position is correct. Use a spirit level to check the horizontal and vertical alignment of the bracket on the wall. -
Page 8: Attaching The Wall Bracket
6.1.2 Attaching the wall bracket • Attach the wall bracket to the wall as shown above using the enclosed mounting material ([A2] plug, [A3] M6 washer, [A1] 6x50 mm screw and the [F1] spirit level). -
Page 9: Mounting On The Tv Set
6.2 Mounting on the TV set Note • Given the multitude of terminal devices structures available on the market, we cannot describe all possible mounting options here. • Please ensure that the bracket lays flat and evenly on the back of the television. •... -
Page 10: Mount The Vesa Arms On The Back Of The Tv Set
6.2.1 Mount the VESA arms on the back of the TV set C1, C2, D1, D2, D3 E1, E2, E3 B2, B3 Curved TV back Flat TV back C2, D2, E2, E3 C1, D1, E1, E3 D3, E3 M8x50 Ø 8x5 M8x45 (D4) •... -
Page 11: Mounting The Tv On The Wall Bracket
6.3 Mounting the TV on the wall bracket Get support and help from other people for the following assembly step. • Hang the TV set with the mounted VESA arms on the wall bracket as shown above. • Turn the screws, as shown above, on both supporting arms to secure the bracket in place. -
Page 12: Adjustment & Maintenance
7. Adjustment & maintenance Note Never adjust the bracket alone. Seek assistance and help! • Check the strength and operational safety of the bracket and the load attached to it at regular intervals (at least quarterly). • Clean only with water or conventional household cleaners. -
Page 13: Technical Data
8. Technical data Maximum load: 35 kg Screen diagonal: 81.0 - 165.0 cm (US: 32" - 65") Depth: 2.3 cm Dimensions of the wall mounting plate: 9.6 x 42.0 cm Compliant with VESA standard: 75x75 100x100 Mount: 200x200 300x300 400x400... -
Page 14: Warranty Disclaimer
In the event of a warranty claim, please contact us at Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, Germany, enclosing proof of purchase. You are also welcome to contact us at www.hama.de or by phone on...
