SAVE THESE INSTRUCTIONS

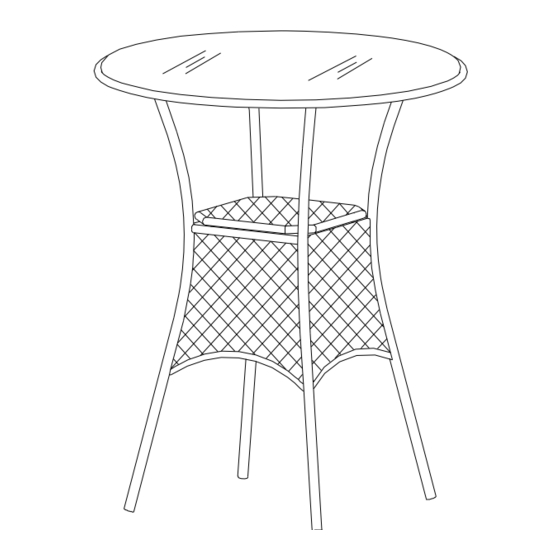

BISCAY HIGH DINING TABLE
STYLE #: 61SRR4502BIS
ASSEMBLE ON A FLAT, PROTECTED SURFACE
PART LIST
FIGURE
A
B
C
D
E
F
G
H
QUANTITY
DESCRIPTION
1 PC
TOP FRAME
2 PCS
LEG CONNECTER
2 PCS
1 PC
GLASS TOP
1 PC
16 PCS+ 1 PCS
16 PCS + 1 PCS
WASHER
1 PC
WRENCH
LEG
SHELF
BOLT
M6*15
ALLEN
Page 1/2
Page 1/2
Advertisement
Table of Contents
Related Manuals for Kohl's BISCAY 61SRR4502BIS
Summary of Contents for Kohl's BISCAY 61SRR4502BIS
- Page 1 SAVE THESE INSTRUCTIONS BISCAY HIGH DINING TABLE STYLE #: 61SRR4502BIS ASSEMBLE ON A FLAT, PROTECTED SURFACE PART LIST FIGURE QUANTITY DESCRIPTION 1 PC TOP FRAME 2 PCS LEG CONNECTER 2 PCS 1 PC SHELF GLASS TOP 1 PC BOLT 16 PCS+ 1 PCS M6*15 16 PCS + 1 PCS WASHER...
- Page 2 STYLE #: 61SRR4502BIS ASSEMBLY INSTRUCTIONS (CONTINUED) STEP 1 A. ATTACH LEG (B) TO TOP FRAME (A) WITH BOLT (F) AND WASHER (G) USING ALLEN WRENCH (H). LOOSELY TIGHTEN. STEP 2 A. INSERT LEG CONNECTERS (C) BETWEEN LEGS (B) AND CONNECT WITH BOLT (F) AND WASHER (G) USING ALLEN WRENCH (H).
