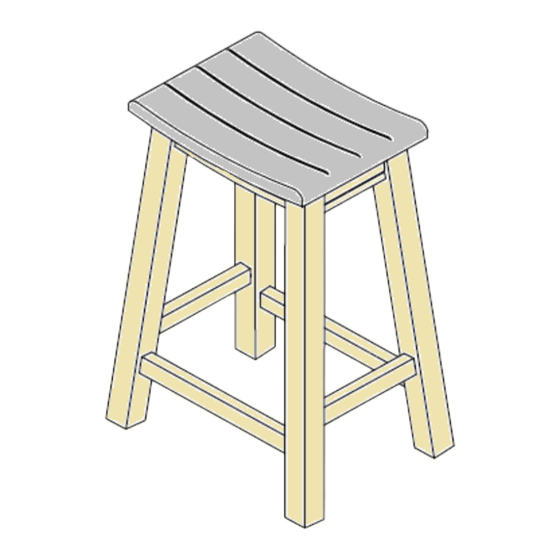

SET OF 2 CAMERON COUNTER STOOLS ASSEMBLY INSTRUCTIONS

PHILLIPS HEAD SCREWDRIVER NEEDED FOR ASSEMBLY; NOT INCLUDED

PART LIST

FOR MISSING OR INCORRECT PARTS/HARDWARE, CONTACT THE MANUFACTURER'S CUSTOMER SERVICE DIRECTLY AT

REFER TO LAST PAGE FOR ADDITIONAL CUSTOMER SERVICE DETAILS.

SAVE THESE INSTRUCTIONS

ASSEMBLE ON A FLAT, PROTECTED SURFACE

FIGURE

16 PCS + 1 PC

1-847-608-5202 OR CUSTOMERSERVICE@HOMECIAO.COM

QUANTITY

2 PCS

4 PCS

8 PCS + 1 PC

5/16" X 1-1/2" WOOD SCREW

1 PC

DESCRIPTION

SEAT

LEFT LEG

RIGHT LEG

LONG STRETCHER

SHORT STRETCHER

SPRING WASHER

FLAT WASHER

1/4" x 2-1/4" BOLT

ALLEN WRENCH

Table of Contents

Do you have a question about the Cameron and is the answer not in the manual?

Page 1 SAVE THESE INSTRUCTIONS SET OF 2 CAMERON COUNTER STOOLS ASSEMBLY INSTRUCTIONS ASSEMBLE ON A FLAT, PROTECTED SURFACE PHILLIPS HEAD SCREWDRIVER NEEDED FOR ASSEMBLY; NOT INCLUDED FIGURE DESCRIPTION PART LIST QUANTITY 2 PCS SEAT 4 PCS LEFT LEG 4 PCS RIGHT LEG...
Page 2 ASSEMBLY INSTRUCTIONS (CONTINUED) STEP 1 A. PLACE SEAT (A) UPSIDE DOWN ON A FLAT, PROTECTED SURFACE. B. ATTACH LEFT LEGS (B) AND RIGHT LEGS (C) TO SEAT (A) AS SHOWN WITH BOLTS (H), SPRING WASHERS (F) AND FLAT WASHERS (G). C.
Page 3 ASSEMBLY INSTRUCTIONS (CONTINUED) STEP 4 A. ROTATE ASSEMBLED UNIT TO UPRIGHT POSITION. B. CHECK AND MAKE SURE ALL LEGS TOUCH THE FLOOR. C. FULLY TIGHTEN ALL BOLTS USING ALLEN WRENCH (J). D. REPEAT ALL STEPS FOR SECOND STOOL ASSEMBLY. ** WE RECOMMEND THAT YOU SAVE THE ALLEN WRENCH AND PERIODICALLY TIGHTEN ALL BOLTS. WEIGHT LIMIT: TOP: 300 LBS CARE AND CLEANING...
