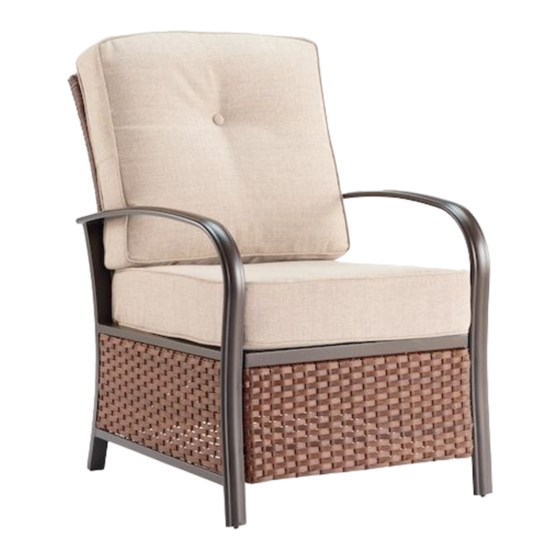

BROCKPORT STATIONARY CHAIR ASSEMBLY INSTRUCTIONS
ASSEMBLE ON A FLAT, PROTECTED SURFACE
PART LIST
FIGURE
A
B
C
D
E
F
F
G
H
I
J
STYLE #: 61SRR4514BRK
QUANTITY
1 PC
1 PC
1 PC
1 PC
4 PCS+1 PC
6 PCS+1 PC
6 PCS+1 PC
10 PCS+1 PC
1 PC
1 PC
1 PC
DESCRIPTION
RIGHT SIDE
LEFT SIDE
BACK
SEAT
SHORT BOLT
(M6*30)
LONG BOLT
LONG BOLT
(M6*40)
FLAT WASHER
WRENCH
SEAT CUSHION
BACK CUSHION
Page 1/2
Page 1/2
