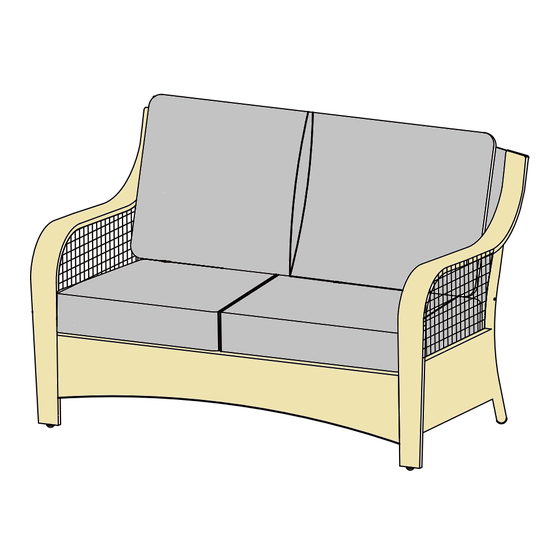

RAVINE LOVESEAT WITH CUSHION
ASSEMBLE ON A FLAT, PROTECTED SURFACE.
PART LIST
A
B
C
D
E
F
G
H
I
J
K
SAVE THESE INSTRUCTIONS
STYLE #: 61SRR4525RAV
FIGURE
QUANTITY
1 PC
1 PC
1 PC
1 PC
2 PCS
2 PCS
4 PCS
9 PCS
13 PCS
4 PCS
1 PC
DESCRIPTION
SEAT
BACK
LEFT SIDE
RIGHT SIDE
SEAT CUSHION
BACK CUSHION
SHORT BOLT
(M6*18mm)
LONG BOLT
(M6*50mm)
FLAT WASHER
BOLT CAP
ALLEN WRENCH
Advertisement
Table of Contents
Related Manuals for Kohl's RAVINE 61SRR4525RAV
Summary of Contents for Kohl's RAVINE 61SRR4525RAV
- Page 1 SAVE THESE INSTRUCTIONS RAVINE LOVESEAT WITH CUSHION STYLE #: 61SRR4525RAV ASSEMBLE ON A FLAT, PROTECTED SURFACE. PART LIST FIGURE QUANTITY DESCRIPTION 1 PC SEAT BACK 1 PC LEFT SIDE 1 PC RIGHT SIDE 1 PC 2 PCS SEAT CUSHION BACK CUSHION 2 PCS SHORT BOLT 4 PCS...
- Page 2 RAVINE LOVESEAT WITH CUSHION STYLE #: 61SRR4525RAV ASSEMBLY INSTRUCTIONS (CONT.) STEP 1 A. PLACE BACK (B) ON A FLAT, PROTECTED SURFACE. B. CONNECT SEAT (A) TO BACK (B) WITH FLAT WASHER (I) AND LONG BOLT (H) USING ALLEN WRENCH (K). DO NOT TIGHTEN COMPLETELY. STEP 2 A.
- Page 3 RAVINE LOVESEAT WITH CUSHION STYLE #: 61SRR4525RAV ASSEMBLY INSTRUCTIONS (CONT.) STEP 5 A. CONNECT BOTH TOP PARTS OF ARMS FROM SIDES (C&D) TO BACK (B) WITH FLAT WASHER (I) AND LONG BOLT (H) USING ALLEN WRENCH (K). B. TIGHTEN ALL BOLTS FROM ALL STEPS SECURELY USING ALLEN WRENCH (K).
