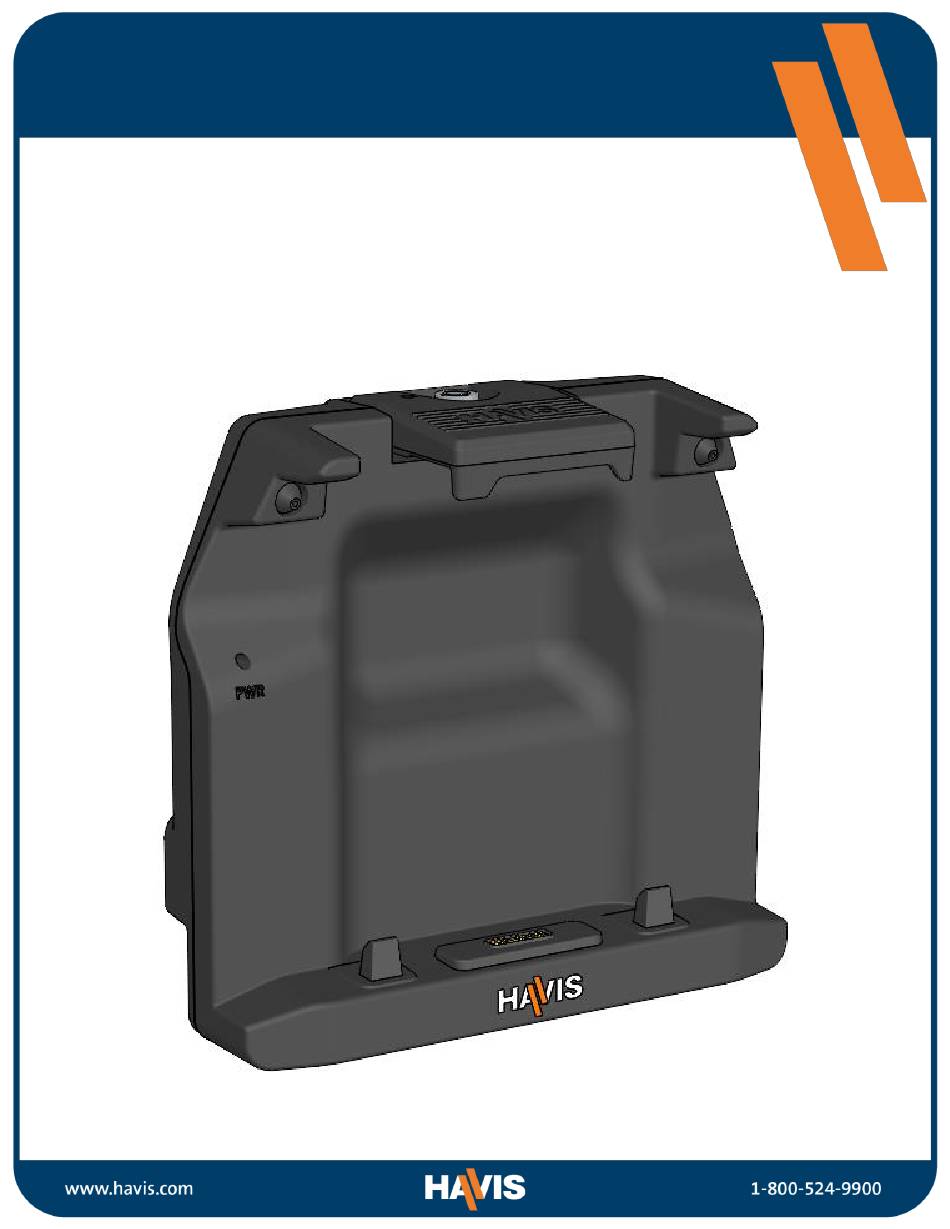

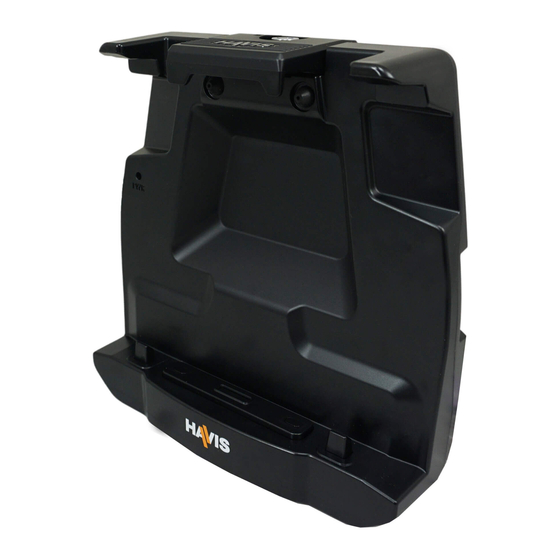

- Page 1 Owner’s Manual Havis Docking Station For Dell Latitude 7030 Rugged Extreme Tablet DS-DELL-1100 Series DS-DELL-1101 DS-DELL-1102 DS-DELL-1103 DS-DELL-1104 DS-DELL-1107 DS-DELL-1100-SERIES_OMN_1-24...
-
Page 2: Before Beginning
Before Beginning Havis is pleased to provide this owner’s manual to aid in the proper installation and use of the DS-DELL-1100 Series Docking Station for the Dell Latitude 7030 Rugged Extreme Tablet. For questions regarding the set-up of your DS-DELL-1100 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information. -
Page 3: Specifications
Stephen Telesco, Director of Engineering, Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-DELL-110X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. - Page 4 Specifications (continued) 9.5” 3.5” 8.8 cm 24.1 cm Latched Unlatched 9.1” 9.6” 23.2 cm 24.4 cm 5.3” 13.5 cm VESA 75 Mounting Pattern M4 x 0.7 x 12mm Thread...
-
Page 5: Parts Included
Parts Included Docking Station Barrel Lock Bumpers Latch Handle LED Power Indicator Locating Posts Docking Connector VESA 75 Mounting Holes Side USB-A Port Cable Strain Relief I/O Ports Power Port Cable Strain Relief... -
Page 6: Hardware Kit
Parts Included (continued) Hardware Kit (30-013743) This hardware kit includes: 1. Zip ties (4) 2. Keys (2) 3. M4 x 0.7 x 12mm long screws (5) 4. Split lock washers (5) 5. M4 washers (5) Tools required for installation: • #2 Phillips (for M4 screws) Power Cable (DS-DA-339) Included with the DS-DELL-1101 and DS-DELL-1102 only. -
Page 7: Port Replication Capability
Port Replication Capability Downward Facing Ports – Standard Electronics DS-DELL-1101, DS-DELL-1104 Ethernet USB 3.1 Gen 1 USB 3.1 Gen 1 Powered Serial Power Input RJ45 Type A Type C RS-232 (DB-9) 1 Gb/s 0.9A 1.5A 5V/1A (2X) Downward Facing Ports – Advanced Electronics DS-DELL-1102, DS-DELL-1107 HDMI Ethernet... - Page 8 Port Replication Capability (continued) Side Facing Ports DS-DELL-1101, DS-DELL-1102, DS-DELL-1104, DS-DELL-1107 USB 3.1 Gen 1 Type A 1.5A USB ports do not support USB power delivery (USB PD).
- Page 9 Power Input Configuration There are several different power supply options for the DS-DELL-1100 Series Docking Station, as shown below. Internal Power Supply Configurations DS-DELL-1101, DS-DELL-1102 Threaded connector end plugs into docking station. Cigarette lighter end plugs into power source. DS-DA-339 Power Cable...
-
Page 10: Installation
1) Align mounting holes of docking station with the hole pattern on desired mounting device. Use the provided hardware kit to fasten the docking station to the mounting device. Torque screws to 80 in-lbs (9.0 Nm) ± 10%. A. Installation for Havis in-vehicle mounting system (sold separately). M4 Washer Split Lock Washer... -
Page 11: Cable Management
Cable Management 1) Connect desired cables to docking station. Use zip ties provided in hardware kit to fasten cables to strain relief points of the docking station. A. Location of strain relief points. B. Docking station with cables fastened to strain relief points. Use as many zip ties necessary to secure cables. - Page 12 Cable Management (continued) 2) Zip tie cables onto a stationary part of the mounting device. Leave additional slack to allow mounting device to Cables zip tied to a move freely without stationary part of stressing cables. mounting device. Create a service loop if there is excess cable length.
-
Page 13: Operation - Docking
Operation - Docking 1) Press the lock button on top of the docking station to ensure it is unlatched. 2) Hold the tablet in landscape orientation. Lower the bottom of the tablet onto the docking station and then pivot the top until tablet is fully seated. 3) To secure the tablet, push downwards on the latch until a click is heard. - Page 14 Operation - Docking (continued) 4) For theft deterrence, lock the docking station using the supplied key (hardware kit item #2). ⚠ CAUTION DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, ENSURE THE LOCATING POSTS OF THE DOCKING STATION LINE UP WITH THE POCKETS OF THE TABLET. ⚠...
-
Page 15: Operation - Undocking
Operation - Undocking 1) If previously locked, unlock the docking station using the supplied key (hardware kit item #2). 2) While securely holding the tablet, push the lock button on the top of the docking station to release the latch. 3) Remove the tablet by tilting it forward and lifting it out of the docking station. -
Page 16: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your docking station. For more information or to order, please visit www.havis.com. DS-DA-339 Power Cable Power cable for DS-DELL-1101 and DS-DELL-1102 docking stations. DS-DA-218 Desktop Stand Durable stand for mounting the DS-DELL-1100 Series Docking Stations in the home or office.
