Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.

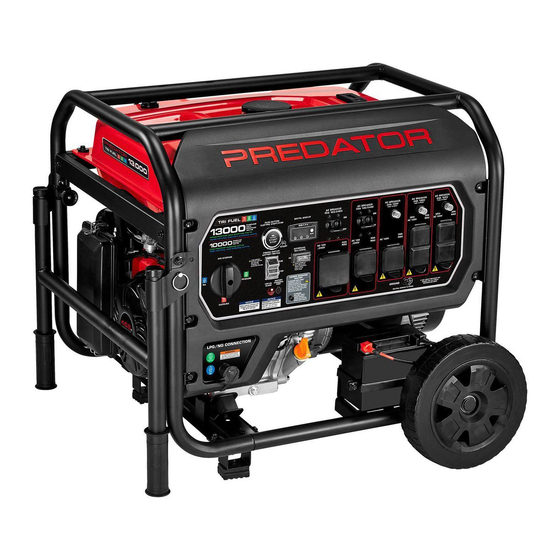

13,000 WATT
TRI-FUEL
GENERATOR
10,000 GAS RUNNING WATTS
13,000 MAX GAS STARTING WATTS
9100 LPG RUNNING WATTS
12,000 MAX LPG STARTING WATTS
7800 NG RUNNING WATTS
10,000 MAX NG STARTING WATTS
Visit our website at:
http://www.harborfreight.com
Email our technical support at:
productsupport@harborfreight.com
Email our engine support at:
predator@harborfreight.com
70476

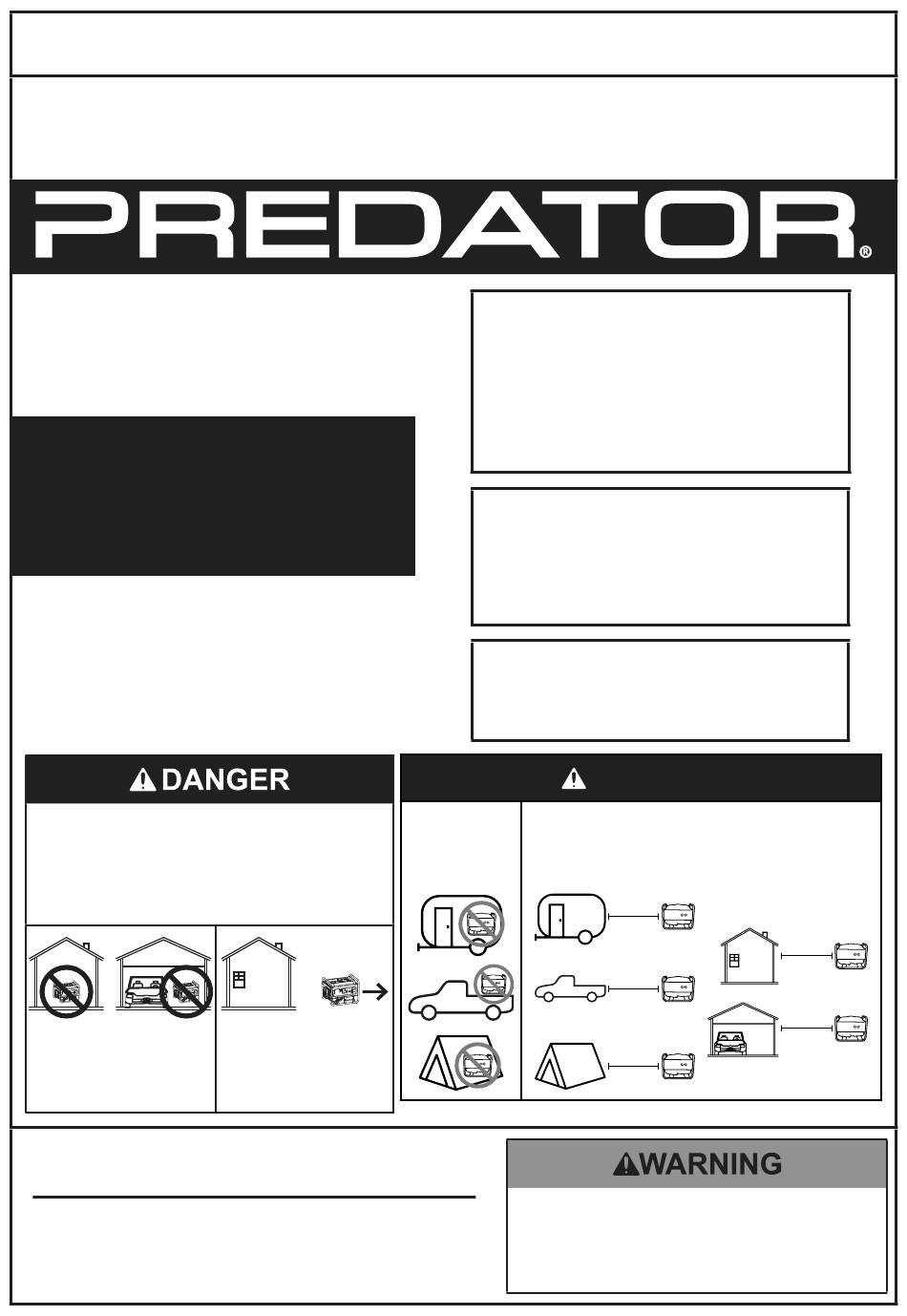

Using a generator indoors CAN
KILL YOU IN MINUTES.
Generator exhaust contains
carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2023 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Only use OUTSIDE
and far away from
windows, doors,
and vents.
®
. All rights reserved.
WARNING: Improper installation,
adjustment, alteration, service, or
maintenance can cause injury or property
damage. Refer to this manual. For
assistance or additional information consult
a qualified service technician, service
agency, manufacturer, or the gas supplier.
FOR YOUR SAFETY
IF YOU SMELL GAS:
1. Don't touch electrical switches.
2. Extinguish any open flame.
3. Immediately call your gas supplier.
FOR YOUR SAFETY
Do not store gasoline or other
flammable vapors and liquids in the
vicinity of this or any other generator .
Do not use
Use at least 20 feet away from people,
in trailers,
animals, and structures with exhaust pointed
truck beds,
away. Generator will produce carbon
or tents.
monoxide when burning gas, LPG, or NG.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
DANGER
20'
20'
20'
23l
20'
20'
Advertisement
Related Manuals for Predator 70476
Summary of Contents for Predator 70476
- Page 1 Do not store gasoline or other Email our engine support at: flammable vapors and liquids in the predator@harborfreight.com vicinity of this or any other generator . 70476 DANGER Do not use Use at least 20 feet away from people, Using a generator indoors CAN...
- Page 2 2. If it is safe to do so, turn off of propane or natural gas. any appliances you suspect may be releasing CO. 70476 Page 2 For technical questions, please call 1-888-866-5797.
-
Page 3: Table Of Contents
U.S. Environmental Protection Agency. For warranty information, refer to the last pages of this manual. In reference to the remote: Changes or modifications not expressly approved by Harbor Freight Tools could void the user’s authority to operate the equipment. FCC ID: 2BBOR-QJ003 70476 For technical questions, please call 1-888-866-5797. Page 3... -
Page 4: Safety
It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. SAVE THESE INSTRUCTIONS 70476 Page 4 For technical questions, please call 1-888-866-5797. - Page 5 Do not place tank above Generator. and the Generator may explode, burn, or cause fires when utility power is restored. Consult 7. Connect to Natural Gas source using PREDATOR ® the utility company and a qualified electrician if 1/2" NG Quick Connect Hose Kit only, item 70491 intending to use the Generator for back up power.
- Page 6 Generator in any area or situation that will 11. Keep LPG / P ropane tanks in an upright position. allow carbon monoxide to accumulate. 70476 Page 6 For technical questions, please call 1-888-866-5797.
- Page 7 39. Stay alert, watch what you are doing and use common sense when operating this 27. Insulate all connections and disconnected wires. generator. Do not use while tired or under the influence of drugs, alcohol or medication. 70476 For technical questions, please call 1-888-866-5797. Page 7...
- Page 8 10 AWG 8 AWG 4200 8400 8 AWG 6 AWG 4800 9600 6 AWG 5400 10,800 6 AWG 4 AWG Do not use extension cords less than 20 feet in length. 70476 Page 8 For technical questions, please call 1-888-866-5797.
- Page 9 6. Do not disassemble Charger / M aintainer – take it to a qualified technician when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire. 70476 For technical questions, please call 1-888-866-5797. Page 9...
- Page 10 6. Do not connect LPG / P ropane or NG fuel sources to the Generator while operating with gasoline. Shut down Generator and allow to cool before connecting alternate fuel type. 70476 Page 10 For technical questions, please call 1-888-866-5797.
- Page 11 If the battery compartment does not close for treatment information. securely, stop using the product, remove the 4. Non-rechargeable batteries are not to be recharged. batteries, and keep them away from children. SAVE THESE INSTRUCTIONS. 70476 For technical questions, please call 1-888-866-5797. Page 11...
-
Page 12: Setup
Charger / M aintainer to keep the Battery charged when the Generator is not in use or in storage. Refer to 12 V DC Battery: in Storage on page 32. 70476 Page 12 For technical questions, please call 1-888-866-5797. - Page 13 Pin and push the Handle down. With the Handle into position, release the Handle Release Pin, in position, release the Handle Release Pin, then insert the Locking Pin back into place. then insert the Locking Pin back into place. 70476 For technical questions, please call 1-888-866-5797. Page 13...
- Page 14 Oil Fill Inlet Handle Cap / D ipstick Drain Plug Battery Remote Charger / M aintainer LPG / P ropane Control Attachment Fuel Tank Fuel Cap Fuel Gauge Muffler 70476 Page 14 For technical questions, please call 1-888-866-5797.
- Page 15 Engine runs at full speed (and frequency) when load above 75 W is applied. Notice: Turn Automatic Idle Switch OFF when connected load is less than 300 W . 70476 For technical questions, please call 1-888-866-5797. Page 15...
- Page 16 WARNING! TO PREVENT SERIOUS INJURY: Connect tools and equipment only to the Receptacle (120 volt or 240 volt) that is compatible with the electrical characteristics and rated capacities of the tools and equipment being used. 70476 Page 16 For technical questions, please call 1-888-866-5797.
- Page 17 High Altitude Kit Parts List - A Solenoid Seal Part Description Not present Main Jet 3000-6000 ft. on some Main Jet 6000-8000 ft. Solenoid Generators Bolt Seal Screws Fuel Cup Seal Solenoid Seal 70476 For technical questions, please call 1-888-866-5797. Page 17...
-
Page 18: Operation
10% ethanol (E10). Do not use E85 ethanol. Add fuel To prevent FIRE, do not start the engine stabilizer to the gasoline or the Warranty is VOID. while the smell of fuel hangs in the air. 70476 Page 18 For technical questions, please call 1-888-866-5797. - Page 19 Open the valve and recheck connections. If a leak continues or is not at a connection do not use the Generator. Have the problem corrected before further use. Open Tank Valve 70476 For technical questions, please call 1-888-866-5797. Page 19...
- Page 20 NFPA 58 (Liquefied Petroleum Gas Code), NFPA 54 (National Fuel Gas Code), manufacturer's recommendations, and all relevant local, state, and federal codes and regulations. b. Natural Gas source must meet requirements listed in Specifications chart on page 3. c. Connect to Natural Gas source using PREDATOR 1/2" NG Quick ®...
- Page 21 Fuel Selector Switch to the NG setting. OFF/STORAGE 4. When the Generator is not in use turn the Fuel Selector Switch to the OFF/ S TORAGE position to turn off all fuel flow to Engine. 70476 For technical questions, please call 1-888-866-5797. Page 21...
- Page 22 • Check spark arrestor cleanliness. Engine will not start if spark arrestor is clogged. IMPORTANT: Allow the Engine to run at no load for five minutes after each start-up so that the Engine can stabilize. 70476 Page 22 For technical questions, please call 1-888-866-5797.
- Page 23 • Check spark arrestor cleanliness. Engine will not start if spark arrestor is clogged. IMPORTANT: Allow the Engine to run at no load for five minutes after each start-up so that the Engine can stabilize. 70476 For technical questions, please call 1-888-866-5797. Page 23...
- Page 24 • Check spark arrestor cleanliness. Engine will not start if spark arrestor is clogged. IMPORTANT: Allow the Engine to run at no load for five minutes after each start-up so that the Engine can stabilize. 70476 Page 24 For technical questions, please call 1-888-866-5797.
- Page 25 The Carbon Monoxide sensor must only be serviced by a qualified technician to restore it to original settings. Do not modify or tamper with the Carbon Monoxide sensor. Not following these instructions can result in death or serious injury due to Carbon Monoxide sensor malfunction. 70476 For technical questions, please call 1-888-866-5797. Page 25...
- Page 26 3. Make sure that ALL circuit breakers are reset over outlets: before starting the Generator again. 4. Adjust the plugs so the loads are shared across outlet circuits. To achieve rated output from the Generator, distribute loads over outlets. 70476 Page 26 For technical questions, please call 1-888-866-5797.
- Page 27 4. If operating on LPG / P ropane, turn the propane tank valve to the fully closed position. 5. If operating on Natural Gas, Close turn the NG shutoff valve to the closed position. 70476 For technical questions, please call 1-888-866-5797. Page 27...
-
Page 28: Maintenance
3. Clean carbon build-up from combustion chamber – Replace fuel line if necessary Service more frequently when used in dusty areas. These items should be serviced by a qualified technician. 70476 Page 28 For technical questions, please call 1-888-866-5797. - Page 29 Note: Do not thread the dipstick in when checking the oil level. The SAE Viscosity Grade chart shows other viscosities to use in different average temperatures. SAE Viscosity Grades 10W-30 5W-30 100°F Average outdoor temperature 70476 For technical questions, please call 1-888-866-5797. Page 29...
- Page 30 (sold separately). Replace Arrestor if damaged. Remote Control Battery Replacement 1. Remove screw(s) and open battery compartment. 3. Insert battery in correct polarity, close compartment and replace screw(s). 2. Remove battery and dispose of properly. 70476 Page 30 For technical questions, please call 1-888-866-5797.
- Page 31 Spark Plug needs to be replaced. and reattach the cap securely. NOTICE: Use only F7RTJC type spark plug or equivalent. Using an incorrect spark plug may damage the engine. 70476 For technical questions, please call 1-888-866-5797. Page 31...
- Page 32 Pull Starter Handle to distribute oil in cylinder. Stop after one or two revolutions when you feel the piston start the compression stroke (when you start to feel resistance). 70476 Page 32 For technical questions, please call 1-888-866-5797.
-
Page 33: Troubleshooting
2. Engine mounted on slope, 2. Operate engine on level surface. Check engine oil level. triggering low oil shutdown. Follow all safety precautions whenever diagnosing or servicing the generator or engine. 70476 For technical questions, please call 1-888-866-5797. Page 33... - Page 34 1. Clean or replace element. under heavy load 2. Engine running cold. 2. Allow engine to warm up prior to operating equipment. Follow all safety precautions whenever diagnosing or servicing the generator or engine. 70476 Page 34 For technical questions, please call 1-888-866-5797.
- Page 35 2. Lower the number of items plugged into the Generator to stay within the rated capacity, or use a more powerful generator. Follow all safety precautions whenever diagnosing or servicing the generator or engine. 70476 For technical questions, please call 1-888-866-5797. Page 35...
- Page 36 Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175498267 when ordering parts. 70476 Page 36 For technical questions, please call 1-888-866-5797.
-
Page 37: Parts List And Diagram
111 Hex Socket Flange Face Bolt - Small Series 55 Position Pin - Type A 112 Stopper 56 Crankcase Gasket 113 Motor Support 57 Deep Groove Ball Bearing - P6 114 Hex Socket Flange Face Bolt - Small Series 70476 For technical questions, please call 1-888-866-5797. Page 37... - Page 38 223 Battery Charger / M aintainer 168 Engine Frame Shock Absorption Seat 224 Remote Control 169 Engine Frame Shock Absorption Support 225 LPG / P ropane Attachment Kit 170 Flange Nut 70476 Page 38 For technical questions, please call 1-888-866-5797.
- Page 39 Assembly Diagram 70476 For technical questions, please call 1-888-866-5797. Page 39...
-
Page 40: Warranties
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 70476 Page 40... - Page 41 When going to the retail store or contacting product support, you must indicate the specific emissions control part or defect that you are claiming and the date this was originally purchased. The nearest Harbor Freight Tools retail store can be found on the internet at http://www.harborfreight.com. 70476 For technical questions, please call 1-888-866-5797. Page 41...
- Page 42 70476 Page 42 For technical questions, please call 1-888-866-5797.
- Page 43 70476 For technical questions, please call 1-888-866-5797. Page 43...
- Page 44 26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797...
Need help?
Do you have a question about the 70476 and is the answer not in the manual?
Questions and answers
how do i start it
To start the Predator 70476 generator using gasoline:
1. Inspect the generator and engine.
2. Disconnect all electrical loads.
3. Fill the engine with the correct amount of stabilizer-treated unleaded gasoline (87+ octane, no more than 10% ethanol) and oil.
4. Open the gasoline fuel valve.
5. Turn the Fuel Selector Switch to the GASOLINE setting.
6. Push the Engine/Battery Switch to the RUN position.
Choose a starting method:
Manual Start:
- Pull the Starter Handle slowly several times to let fuel enter the carburetor.
- Pull gently until resistance is felt, then let it retract fully.
- Pull quickly to start the engine. Repeat if necessary.
- Do not let the handle snap back.
Remote Start:
- Press and release the 2x button on the remote control twice.
Make sure the remote is within 100 feet and the battery (CR2032) is functional.
This answer is automatically generated
