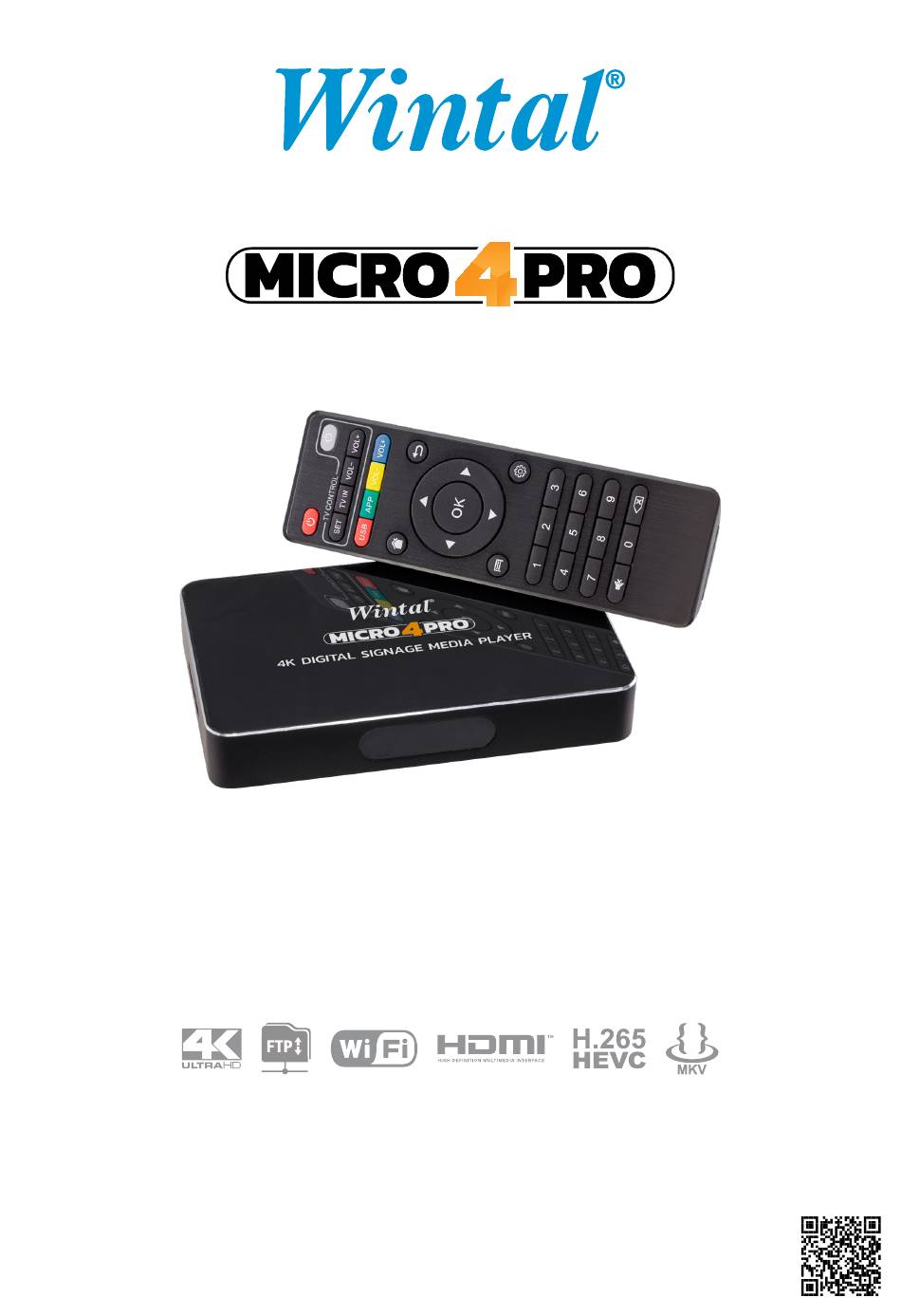

- Page 1 USER MANUAL Scan for product page and latest information: Document Updated: December 11, 2023 1:35 pm...
-
Page 2: Table Of Contents
Using the included IR Extender � � � � � � � � � � � � � � � � � � � � � � � � 7 Connecting the Micro4Pro to your network Wireless � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7 Wired Connection �... -
Page 3: Product Information
Get the best for your digital signage with the Wintal MICRO4PRO 4K media player� Compact and versatile, the MICRO4PRO is a giant leap from previous models, not only now with 4K resolution, but with the added ability to store content locally on the player itself�... -
Page 4: Main Unit
Composite AV in the box� IR Input Connect the included IR receiver if you are hiding the Micro4Pro behind TV where IR signals can’t reach� S/PDIF (Optical) For the best digital audio connection to your TV or audio out speaker�... -
Page 5: Mounting
Mounting The Micro4Pro can be easily mounted on a wall� See below for the back plate hole dimensions� Simply hook and slide it into any M6 sized screws� Remote Control 1� Power 3� USB Playback 7� Go Back 11� Settings 2�... -
Page 6: How Setup The Learning Remote Feature
• You can add commands from multiple remotes� For example, power button for your TV, volume up and down commands from your soundbar remote� • If you wait too long, the Micro4Pro remote will automatically exit out of learning mode� Just start from step 1 above�... -
Page 7: Connecting The Micro4Pro
Micro4Pro remote Connecting the Micro4Pro to your network You can connect the Micro4Pro via either wirelessly over wi-fi or wired using the ethernet port located on the back� Wireless 1� Boot up the Micro4Pro 2�... -
Page 8: Wired Connection
Wired Connection 1� Plug in an ethernet cable (Cat5e or Cat6 and above) to the back of the Micro4Pro and to your existing router 2� Wait for 10-15 seconds and on the home screen, click on the network icon ( ) and you should get a pop up that gives you the FTP connection details�... -
Page 9: Playback
The Micro4Pro is equipped to playback media in a variety of ways� Playback via USB The simplest method is to populate a USB flash drive with your media� Micro4Pro is able to playback pretty much any audio, video and image files you throw at it�... - Page 10 Go to Playback button� 1� Following screen will be displayed� Slideshow is now ready to be used, you can upload first files using any of the methods mentioned on the screen� Wintal Micro4Pro User Manual 10 of 15...
- Page 11 Enter key on a connected USB keyboard� 3� If the Micro4Pro is connected to the local network (through WiFi or Ethernet cable), you can access Slideshow’s web interface through any browser on your computer� Just enter the URL address of the web interface displayed on the screen (above the first QR code) to the browser on your computer�...
-
Page 12: How To Copy Files Via Ftp
You can upload new files through the web interface – menu File Manager� Add files which you would like to play through Slideshow using drag & drop them from your computer to the File manager� Once you add your files, you can then immediately start playback on the Micro4Pro by choosing the Advanced Player icon on the home screen�... -
Page 13: Copy Files From Usb To Internal Storage
Plug in the USB drive to the Micro4Pro� 3� You will see a Ready to copy message� The Micro4Pro will automatically copy all the media files to the internal storage and will give you a File copied successfully! message and start playing back your media�... -
Page 14: File Browser
File Browser The Micro4Pro has a built-in browser to make easier to find different files stored on the Micro4Pro or any USB flash drive connected� The bottom row of the home screen is dedicated to file browsing� • The Videos icon launches the file browser to display only video files�... -
Page 15: Screen Rotation
Will loop all the media files in a random order Power Schedule Settings With the Power on/off Time settings you are able to program the Micro4Pro to turn on and off at set times� 1� Go to the Settings icon ( ) and choose Power on/off Time at the bottom of the list�...
