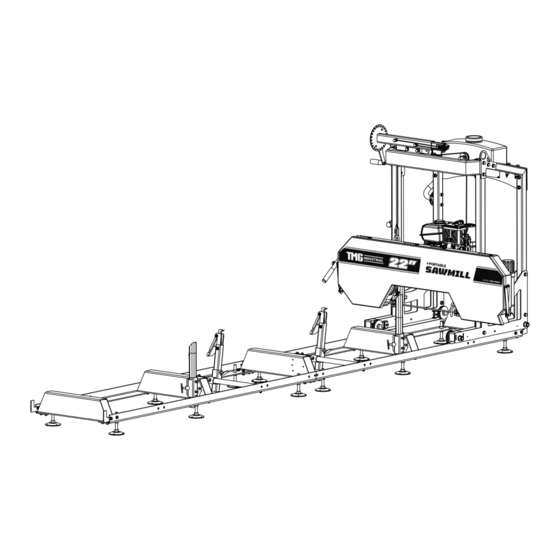

TMG -PSM22 Product Manual

22” cutting capacity portable sawmill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TMG-PSM22
PRODUCT MANUAL
v2023.10.01
22" CUTTING CAPACITY
PORTABLE SAWMILL
KOHLER COMMAND PRO SERIES ENGINE
Please read and understand the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-PSM22 and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-PSM22

Summary of Contents for TMG TMG-PSM22

  • Page 1 TMG-PSM22 PRODUCT MANUAL v2023.10.01 22” CUTTING CAPACITY PORTABLE SAWMILL KOHLER COMMAND PRO SERIES ENGINE Please read and understand the product manual completely before assembly Check against the parts list to make sure all parts are received Wear proper safety goggles or other protective gears while in assembly Do not return the product to dealer.

  • Page 2: Table Of Contents

    Contents INTENDED USE ..................................... 3 TECHNICAL SPECIFICATIONS ................................3 GENERAL SAFETY RULES ................................... 3 SAVE THESE INSTRUCTIONS ................................4 WORK AREA ......................................4 INTERNAL COMBUSTION ENGINE SAFETY ............................. 4 PERSONAL SAFETY ..................................... 5 TOOL USE AND CARE ..................................5 START UP PROCEDURE - EQUIPMENT OPERATION ........................6 MAINTENANCE ....................................

  • Page 3: Intended Use

    Thank you very much for choosing the TMG-PSM22 Portable Sawmill. For future reference, please complete the owner’s purchase date: Save the receipt for warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it.

  • Page 4: Save These Instructions

    SAVE THESE INSTRUCTIONS WORK AREA Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause accidents. Do not use your sawmill where there is a risk of causing a fire or an explosion; e.g. in the presence of flammable liquids, gasses, or dust.

  • Page 5: Personal Safety

    Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for another sawmill may create a risk of injury when used on the TMG-PSM22 sawmill.

  • Page 6: Start Up Procedure - Equipment Operation

    Always operate machine with all safety devices and guards in place and in working order. DO NOT modify or make changes to safety devices. DO NOT operate machine if any safety devices or guards are missing or inoperative. Never leave sawmill running unattended. Coiled blades can spring apart with considerable force and unpredictably in any direction.

  • Page 7: Maintenance

    MAINTENANCE Proper and routine maintenance is critical to operator safety, achieving good milling results and to prolonging the life of your investment. 1. Band wheel Bearings — Should be inspected before use to ensure they are not worn. Bearings are sealed and do not need to be greased.

  • Page 8: Sawmill Assembly

    SAWMILL ASSEMBLY #1 – INSPECTION Take all of the parts out of the shipping crate and lay them out. #2 – TRACKS Assemble track system and secure loosely with provided nuts & bolts. It is important not to fully tighten the bolts at this stage.
  • Page 9 2. Install crossbeam to the guide rail, and bolt the log rest to the crossbeam as show in the figure. Ensure that all holes on the cross bunks are facing in the same direction during installation. Install the sliding socket welding to the crossbeam as show in the figure.
  • Page 10 4. Assemble the limit plate at the ends of the guide rail (4 stops total) and tighten. PART NO. DESCRIPTION Hexagon flange bolts M10x30 Hexagon flange nuts M10 Limit plate...

  • Page 11: Log Dog & Supports

    #3 – LOG DOG & SUPPORTS 1. Assemble quick clamping as shown below and use water proof grease on threaded handle and T-screw. PART NO. DESCRIPTION Sliding tube Quick clamping T-screw M10x40 Sliding support Hexagon flange nuts M10 Hexagonal head bolt M10x50 2.
  • Page 12 4. We recommend tex screwing the leveling legs to sleepers once the mill has been made level. So before tex screwing the mill to the sleepers, it is highly recommended that you run a string line down both sides of the mill, to make sure the track is straight and level.

  • Page 13: Carriage Assembly

    #4 – CARRIAGE ASSEMBLY 1. Place a moving blanket on the shipping pallet that the sawmill crate was strapped to. The blanket will prevent the blade guard covers from becoming scratched. Using a minimum of two people or a mechanical advantage system, remove the head assembly from the sawmill crate and place face down on the blanker.
  • Page 14 4. Install the two onto the front posts as shown in the figure. wheel assembly PART NO. DESCRIPTION Plain washer Ø12 Hexagon lock nut M12 Hexagonal head bolt M12x80 5. Connect the u to the l , as shown in the figure pper beam welding ifting square tube PART NO.
  • Page 15 6. Insert the into the middle of the clamp plates and secure it with the provided bolts and bottom wheel frame welding nuts. Noted: Need to loosen the bolts(#B32) first when installing the bottom wheel frame. PART NO. DESCRIPTION Left bottom wheel frame welding Right bottom wheel frame welding Plain washer Ø12 Hexagon lock nut M12...
  • Page 16 8. Install the connecting clamping plate, saw frame horizontal connecting plate, external saw frame connecting plate connecting the ruler plate,using wrench to hold the nut, tighten the bolt. PART NO. DESCRIPTION Plain washer Ø12 Hexagon lock nut M12 Hexagonal head bolt M12x80 Saw frame connecting plate Saw frame horizontal connecting plate...
  • Page 17 10. Place the measuring scale assembly, the assembly include ruler and height indicator. A. Install ruler assembly using wrench to hold the nut ,tighten the bolt. B. Install the square indicator rod to the sawmill using the two bolts and tighten. Slide the scale indicator over the square rod and tighten.
  • Page 18 12. Install the water tank. PART NO. DESCRIPTION Water tank Hexagonal head bolt M8x16 Plain washer Ø8 Spring washer Ø8 13. Install the pushing bar assembly. Connect the throttle cable to the gasoline engine, then install the spring, and press the throttle handle to ensure that the gasoline engine reaches the maximum speed.
  • Page 19 14. Route the cables on both sides as shown in the below image.
  • Page 20 15. The transparent water pipe connects the water tank to the copper connector Note: We recommend adding some dishwashing liquid to the tank to help lubricate the wood – two to three capfuls.
  • Page 21 16. Add waterproof grease to the threads of the blade tension “T” handle and to the washer face that it meets before use. Proper blade tension is achieved when the blade deflects no more than a total of 1/8” - 1/4” up/down. *Note –...
  • Page 22 18. Push the saw head up and down the track system to ensure that the width of the track allows for the saw head to move freely. If it binds, the “L” rails will need to be set further or closer together to achieve a consistent width along the entire track system.

  • Page 23: Electric Wire Connect

    5 – ELECTRIC WIRE CONNECT Step. 1: find the show 1 and 3 connection terminals Step. 2: Disconnect the connection terminals Step. 3: Find the Emergency Stop Switch and the Emergency Microswitch Stop Switch Step. 4： Connect the 1 and 1,2 and 2, 3 and 3 Engine Microswitch Step.

  • Page 24: 6- Engine

    #6– ENGINE Refer to the engine manual before using your sawmill. Please note that the engine does not contain any petrol or engine oil when it is shipped. Furthermore, the engine is equipped with an oil alert system, meaning that if the crankcase oil level is low or empty, the power is cut to the spark plug and it will not start.

  • Page 25: Sawmill Set-Up Procedures

    SAWMILL SET-UP PROCEDURES #1 – BELT TENSION To check the belt tension, with your hand, firmly try to deflect the belt up and down. There should be no more than 1/4” of deflection in both directions (1/2” total). If the belt deflects more than this, it will need to be tightened as described below.

  • Page 26: Blade Tracking

    Now that the engine is free to slide on the engine mounting plate, turn the 16mm nut on the horizontal stud in the clockwise direction. This will pull the engine towards the stud and apply more tension on the belt. Do this step incrementally while checking the belt for proper deflection.
  • Page 27 Loosen the blade guide assembly bolt with a socket. The round shaft should now be free to slide rearward and out of the way. Perform this step on both guide assemblies. This will ensure that the guide bearings do not influence tracking of the blade while adjusting.
  • Page 28 The alignment bolt can now be turned to change the angle of the bandwheel and track the blade. To move the blade more rearward on the bandwheel, this bolt will need to be turned clockwise. Alternatively, turning the bolt in the counter-clockwise direction would force the blade to run more forward on the bandwheel.
  • Page 29 Adjusting The Left Hand Side Vertical Bolt Vertical Nut Bottom Bottom Vertical Nut Vertical Bolt To adjust the left side of the sawmill, again start by taking the tension off of the blade by turning the “T” handle one turn in the counter-clockwise direction. Using a 16mm wrench, loosen the “ vertical nut ” a ½ turn. Do the same on the “bottom vertical nut”...

  • Page 30: Blade Guide Adjustment

    Moving The Blade Rearward Using a 16mm wrench, hold the “horizontal bolt” stationary with a wrench and turn the “horizontal outside nut” counter-clockwise a ½ turn. Still holding the “horizontal bolt” stationary, turn the “horizontal inside nut” clockwise a ½ turn. This step has now shifted the “horizontal bolt” and bandwheel shaft, causing the blade to track more forward.

  • Page 31: Blade Tension

    Saw Chuck Shaft Seat Saw Block Thickness of a sheet of paper Saw Blade Thickness of a sheet of paper Loosen the blade guide assembly bolt with a 16mm socket. The round shaft should now be free to slide back and forth.
  • Page 32 When tensioning the blade, make sure the tracking adjustment bolt sitting behind the T handle (pictured) is sitting back in its recess after you have finished and before the mill is run. Failure to do this will result in the blade being thrown and possibly broken. Tracking adjustment bolt out of recess, of it looks like this DO NOT start the mill until it is resting back in its recess Tracking adjustment bolt sitting in recess.

  • Page 33: Sawmill Maintenance

    SAWMILL MAINTENANCE #1 – CHANGING THE BLADE Never attempt the below with the engine running. As a safety precaution, remove the spark plug cap. Gloves and safety glasses must be worn when changing the blade. Remove the tension in the blade by turning the “T” handle in the counter-clockwise direction and then open the blade guard cover.
  • Page 34 Remove the tension in the blade by turning the “T” handle in the counter-clockwise direction and then open the blade guard cover. The blade should now be loose and free to pull straight out the front. To change the drive side belt, loosen the four bolts that secure the engine to the engine mount using a 16mm wrench. Now that the engine is free to slide on the engine mounting plate, turn the 16mm nut on the horizontal stud in the counter-clockwise direction.

  • Page 35: Troubleshooting

    TROUBLESHOOTING Problem/Issue Possible Causes Resolution Options Producing wavy cuts. 1. Inadequate blade tension. 1. Tighten blade. Refer to page 31. 2. Improper blade guide set up. 2. Gap between guide blocks and blade are incorrect. Refer to page 30. 3. Improper blade tracking. 3.

  • Page 36: Diagram--Ensemble

    DIAGRAM--ENSEMBLE...

  • Page 37: Diagram (A) --Bandwheel Houseing

    DIAGRAM (A) --BANDWHEEL HOUSEING...

  • Page 38: Parts List (A) -- Bandwheel Housing

    PARTS LIST (A) -- BANDWHEEL HOUSING PART NO. DESCRIPTION PART NO. DESCRIPTION Beam welding Large washer (Ø12*35*3.0) Shield body welding Hex lock nut M12 Hexagon head bolt M12X45 Welding of front hood door Side pull plate 1 Hexagon head bolt M8X45 Side pull plate 2 Non-metallic insert hex lock nut M8 Side pull plate 3...
  • Page 39 PARTS LIST (A) -- BANDWHEEL HOUSING (CONT) PART NO. DESCRIPTION PART NO. DESCRIPTION Hexagon socket head cap screw Spring washer Ø8 M10x30 Right saw chuck shaft Hexagon head screw M6X20 Saw chuck shaft seat Hexagon head bolt M10X35 Saw block for aluminum seat Triangular belt BX58 Hexagon socket head set screw Lifting wire...

  • Page 40: Diagram (B) --Carriage

    PARTS LIST (B) --CARRIAGE...

  • Page 41: Parts List (B) --Carriage

    PARTS LIST (B) --CARRIAGE PART NO. DESCRIPTION PART NO. DESCRIPTION Left bottom wheel frame welding Spring washer Ø12 Right bottom wheel frame welding Splint 1 Push handle welding Clamping plate 2 Tension spring Wire rope brush Throttle handle Emergency stop switch Hexagon socket head screws M6X55 Water tank Plain washer Ø6...
  • Page 42 PARTS LIST (B) --CARRIAGE (CONT) PART NO. DESCRIPTION PART NO. DESCRIPTION Hexagon lock nut M4 Plain washer Ø10 Handle M6x25 Left wheel assembly Hexagon head bolt M8X45 Right wheel assembly Support plate Lifting assembly Knob plunger Pushing bar assembly Hexagon head bolt M10X25...

  • Page 43: Diagram (C) --Guide Rail

    DIAGRAM (C) --GUIDE RAIL PARTS LIST (C) -- GUIDE RAIL PART NO. DESCRIPTION PART NO. DESCRIPTION Leveling feet M16 Short log support Guide rail Long log support Crossbeam Sliding support Slide tube Hexagon flange bolts M10x30 Quick clamping Hexagon flange nuts M10 Sliding socket welding Hexagon socket head screw M10X50 T-screw M10x40...
