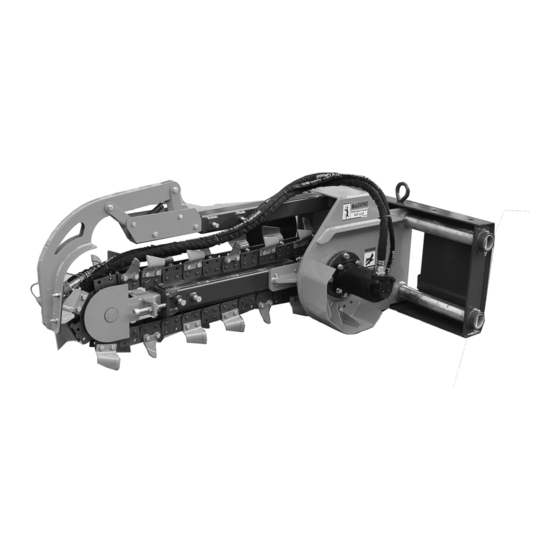

TMG -SDT36S Product Manual

Skid steer side shift trencher
Hide thumbs

Advertisement

Quick Links

Download this manual
www.tmgindustrial.com (USA)
Skid Steer Side Shift Trencher
•
Please read the product manual completely before assembly
•
Check against the parts list to make sure all parts are received
•
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
Do not return the product to dealer, they are not equipped to handle your
requests
www.tmgindustrial.ca (Canada)
PRODUCT MANUAL
Model:TMG-SDT36S
Toll Free:1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-SDT36S and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-SDT36S

Summary of Contents for TMG TMG-SDT36S

  • Page 1 PRODUCT MANUAL Skid Steer Side Shift Trencher Model:TMG-SDT36S • Please read the product manual completely before assembly • Check against the parts list to make sure all parts are received • Wear proper safety goggles or other protective gears while in assembly Missing parts or questions on assembly? Please call: 1-877-761-2819 or email: cs@tmgindustrial.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TO THE OWNER..........................2/23 SAFETY PRECAUTIONS........................3/23 SKID STEER SIDE SHIFT TRENCHER ASSEMBLY................7/23 OPERATION INSTRUCTIONS......................17/23 MAINTENANCE INSTRUCTIONS.......................21/23 STORAGE INSTRUCTIONS........................22/23 SPECIFICATIONS..........................23/23 www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819 P 1 / 23...

  • Page 3: To The Owner

    TO THE OWNER GENERAL COMMENTS Congratulations for having this skid steer side shift trencher attachment! Your skid steer side shift trencher attachment was carefully designed and manufactured to give you years of dependable service. Your skid steer side shift trencher attachment will require some minor maintenance(such as cleaning and lubricating) to keep it in top working condition.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS The skid steer side shift trencher attachments are designed to be easy to use and maintain. They are operated by the skid steer auxiliary hydraulics. The skid steer side shift trencher attachments mount to the toolbar or quick attach mechanism for easy mounting.
  • Page 5 SAFETY PRECAUTIONS These are common practices that may or may not be applicable to the products described in this manual. www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819 P 4 / 23...
  • Page 6 SAFETY PRECAUTIONS www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819 P 5 / 23...
  • Page 7 SAFETY PRECAUTIONS www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819 P 6 / 23...

  • Page 8: Skid Steer Side Shift Trencher Assembly

    SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES SKID STEER SIDE SHIFT TRENCHER ASSEMBLY www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819 P 7 / 23...
  • Page 9 SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES PART NO. PART DESCRIPTION QTYS NOTE 020736.06 CHAIN ASSEMBLY MOUNTING FRAME ASSEMBLY CHAIN TENSION ASSEMBLY SOIL PULLING PLATE ASSEMBLY GB/T5783-2000 HEX HEAD BOLT M12X40 GB/T6170-2000 HEX HEAD NUT M12 GB/T5783-2000 HEX HEAD BOLT M16X130 GB/T97.1-1987 FLAT WASHER D16 GB/T93-1985...
  • Page 10 SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES FIGURE 1 CHAIN ASSEMBLY www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819 P 9 / 22...
  • Page 11 SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES PART NO. PART DESCRIPTION QTYS NOTE 020736.06-05 CHAIN 020736.06-03 LEFT ALLOY TOOTH GB/T 5783-2000 HEX HEAD BOLT M12*35 GB/T 97.1-1987 FLAT WASHER D12 GB/T 93-1985 SPRING WASHER D12 M12X30 GB/T 5783-2000 HEX HEAD BOLT 020736.06-01 LEFT COMMONG TOOTH GB/T 6170-2000...
  • Page 12 SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES FIGURE 2 MOUNTING FRAME ASSEMBLY www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819 P 11 / 23...
  • Page 13 SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES PART NO. PART DESCRIPTION QTYS NOTE 020736I.03.01 ROTATION AUGER 020724.00-1 STEEL PIPE GB/T 97.1-1987 FLAT WASHER D12 GB/T 93-1985 SPRING WASHER D12 GB/T5783-2000 BOLT M12X55 GB/T97.1-1987 FLAT WASHER D10 GB/T93-1985 SPRING WASHER D10 GB/T 6170-2000 GB/T 5782-2000 BOLT M 10X110...
  • Page 14 SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES PART NO. PART DESCRIPTION QTYS NOTE GB/T 5782-2000 BOLT M16X130 GB91 SPLIT PIN D8X50 GB/T 9459 SLOTTED HEX NUT M30X2 020724.07 CHAIN WHEEL GB2673 M6X16 HEX SOCKET COUNTERSUNK HEAD SCREW 0207S36.02.01.01-01 COVER PLATE HG2811-1996 SKELETON SEAL FB70X90-10 0207S36.02.01.01-02...
  • Page 15 SKID STEER SIDE SHIFT TRENCHER ASSEMBLIE FIGURE 3 CHAIN TENSION ASSEMBLY www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819 P 14 / 23...
  • Page 16 SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES PART NO. PART DESCRIPTION QTYS NOTE GB/T 97.1-1987 FLAT WASHER D16 GB/T93-1985 SPRING WASHER D16 GB/T5783-2000 BOLT M16X30 GB70.1-2000 HEX SOCKET HEAD BOLT M20X130 GB/T6170-2000 020736.08 CHAIN TENSIONER GB/T5783-2000 BOLT M16X45 GB/T 6170-2000 NUT M16 020736.03 MOVABLE DEVICE 020724.00-7...
  • Page 17 SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES FIGURE 4 SOIL PULLING PLATE ASSEMBLY www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819 P 16 / 23...
  • Page 18 SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES PART NO. PART DESCRIPTION QTYS NOTE GB/T 97.1-1987 FLAT WASHER D12 GB/T93-1985 SPRING WAHSER D12 GB/T6170-2000 020736.05.01 SOIL PULLING PLATE SUPPORT 020724.00-4 NYLON PLATE GB/T 5783-2000 BOLT M12X80 020736.05-02 CONNECTION PLATE GB/T 889.1-2000 LOCK NUT GB/T 5783-2000 BOLT M12X90...

  • Page 19: Operation Instructions

    OPERATION INSTRUCTIONS The trencher can dig a trench with 900mm depth and 200mm width. Attach the trencher to the toolbar or quick attach mechanism of your skid steer loader. RAISING OR LOWERING THE TRENCHER Raise or lower the trencher by raising or lowering the skid steer loader arms through their appropriate skid steer controls.
  • Page 20 OPERATION INSTRUCTIONS TRENCHER SPEED CONTROL The power of the trencher is supplied by the skid steer's auxiliary hydraulics. Trencher speed and power are determined by the flow of oil coming out of the auxiliary system, which in turn is dependent upon skid steer engine speed. To increase trencher speed, increase skid steer engine speed, on the contrary, to decrease trencher speed, decrease skid steer loader speed.
  • Page 21 OPERATION INSTRUCTIONS SIDE SHIFT ADJUSTMENT Lift the working arm of your skid steer loader to make the trencher 10cm away from the ground. This trencher has the side shift function. Pull out the side shift lock pin, adjust the side shift distance as needed, and lock it with the lock pin again.

  • Page 22: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS 1. Always keep the clean hydraulic oil, keep the hose joint clean, if the hydraulic oil is mixed with dirt, it will possibly cause the whole operation system abnormally. 2. Daily check all hydraulic lines, make sure the connection of the hydraulic line good, the pipe without distortion, wear, cracking, no loose joint to leak.

  • Page 23: Storage Instructions

    STORAGE INSTRUCTIONS 1. Clean all the debris, all mud, dirt and grease. 2. Inspect the unit for bent, loose, cracked, damaged or missing parts, Order any parts required, and make the necessary repairs to avoid delays when starting next season. 3.

  • Page 24: Specifications

    SPECIFICATIONS MODEL TMG-SDT36S TOTAL LENGTH (MM) 1990 TOTAL WIDTH (MM) 1330 TOTAL HEIGHT (MM) TOTAL WEIGHT (KGS) @65°TRENCHIGN DEPTH (MM) TRENCHING WIDTH (MM) SYSTEM FLOW (L/MIN) 80-110 MAX. PRESSURE (MPA) www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819 P 23 / 23...
