sDot EC4 Series User Manual page 57

EC4 series integrated I/O user manual
3、 scanner

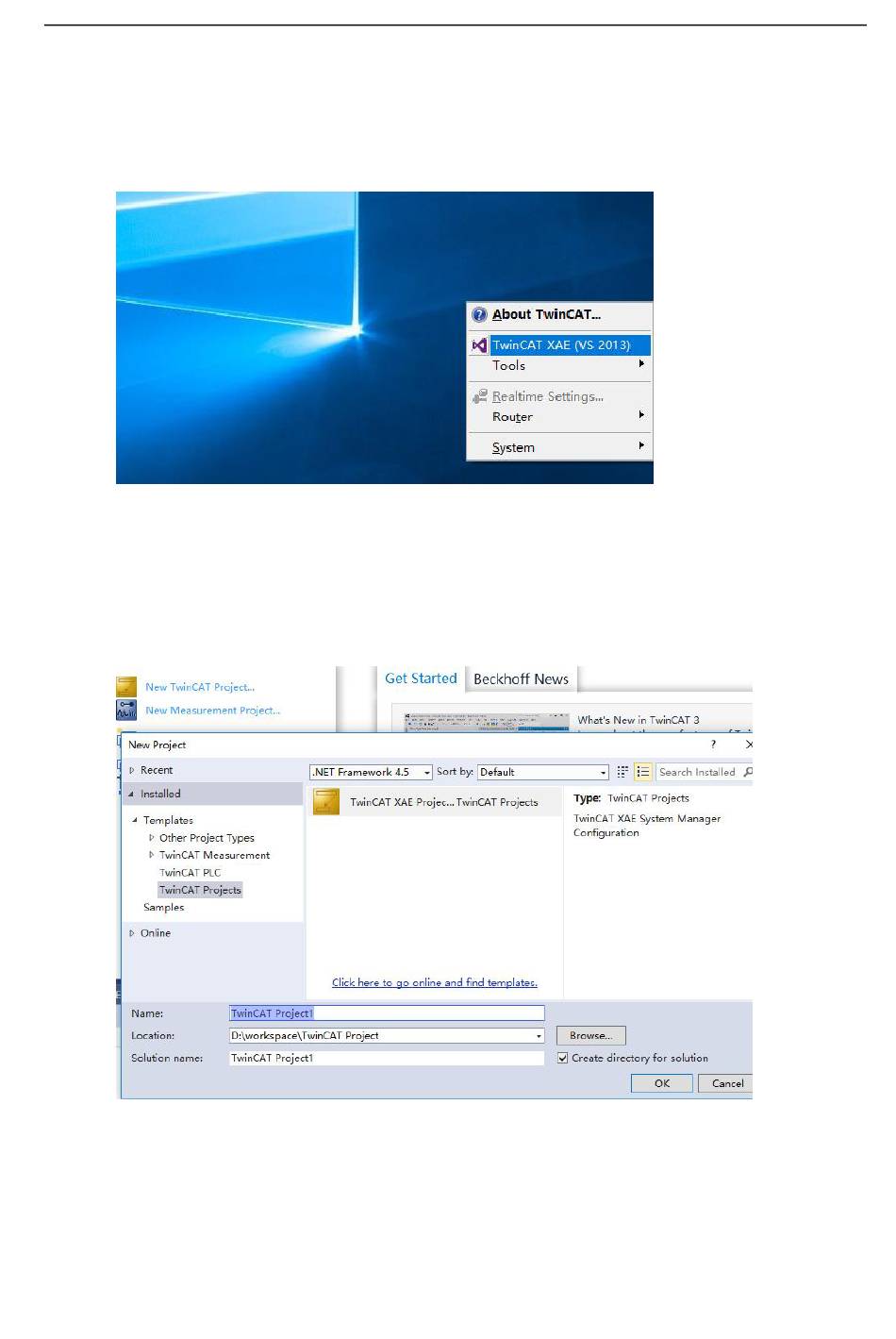

a. Run the T win CAT3 software
Click the TwinCAT icon in the lower right corner of the desktop, select "TwinCAT XAE (VS xxxx)",
and open the TwinCAT software, as shown in the figure below.
b. Create the project
Select "New TwinCAT Project", "Name" and "Solution name" will correspond to the project name
and solution name respectively, "Location" will correspond to the project path, these three items
can choose the default, and then click "OK", the project has been successfully created, as shown in
the following figure.
