Installation Manual

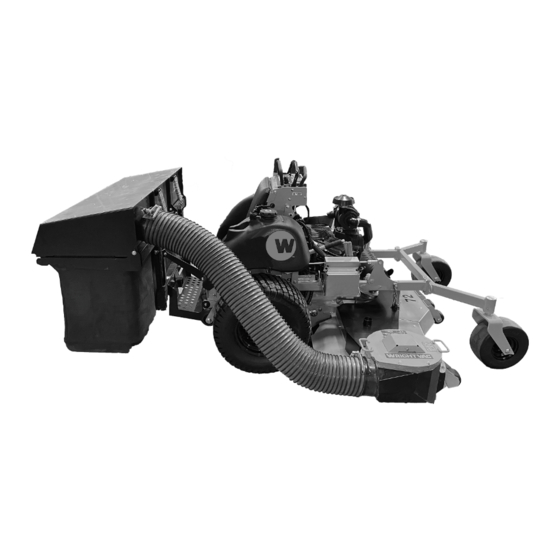

WRIGHT GCS, ZK
For the following kits:
95320001 - GCS-3B-ZXT/ZXL/ZK
95320006 - Pulley Kit, 52" ZK
95320007 - Pulley Kit, 61" ZK
95320008 - Pulley Kit, 72" ZK
95320009 - GCS Adaptor Kit, ZK
Revised January 2023
FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY OR DEATH.
Read this manual and other manuals that came with your mower before operating.
©1998-2023 Wright Manufacturing, Inc. All rights reserved. This material may not be reproduced or copied, in whole or part, without written permission
from Wright Manufacturing, Inc. Grass Gobbler, Gobbler, Leaf Gobbler, Velke, Pro 1, X2, Stander, and Sentar are trademarks of Wright Manufacturing.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WRIGHT GCS
Summary of Contents for WRIGHT GCS
- Page 1 Read this manual and other manuals that came with your mower before operating. ©1998-2023 Wright Manufacturing, Inc. All rights reserved. This material may not be reproduced or copied, in whole or part, without written permission from Wright Manufacturing, Inc. Grass Gobbler, Gobbler, Leaf Gobbler, Velke, Pro 1, X2, Stander, and Sentar are trademarks of Wright Manufacturing.
- Page 2 ZK dimensions with complete GCS, adaptor 2. Unpack adaptor kit and confirm the items kit, and weights installed below are provided: 52” Deck 61” Deck 72” Deck DESCRIPTION Width 65.5” 74.5” 85” Platform Adaptor Weldment Length 91” 93.5” 96” Left and Right Tension Straps...
- Page 3 1- Installation 1. Install deck lift spring assist according to the 6. Unmount the bagger receiver weldment by instructions packaged with the accessory removing the screws that attach it to the crate. 2. Remove bolts attaching rear fuel tank mount brackets to the tractor and discard. 7.
- Page 4 • Torque bolts to 13-17 ft lbs 15. Re-install blade to blade belt. 16. Install the GCS deck adaptor from pulley kit onto the discharge side of the deck. 12. Remove blade to blade belt on cutter deck. 13. Rearrange washers on the discharge side idler as shown below.
- Page 5 21. Secure blower to the deck by inserting the Tube routing should be as straight as hitch pin into the tube on the GCS deck possible. In particular, avoid 90 degree or adaptor. sharper bends as these have the highest clogging risk.
- Page 6 Note: • The square plates provided with the main GCS kit will not be used for this setup. They can be discarded. 3. Mark and drill the indicated hole for weight plate mounting.
- Page 7 • Check blower condition • Check for idler and belt wear Always check with your Dealer or the Wright website, parts.wrightmfg.com for the Part Lists and diagrams for your unit. Drive Pulley Readjustment If belt rubbing or uneven wear is detected, the height of the drive pulley can be adjusted using the following procedure.
- Page 8 4600 Wedgewood Blvd Ste X Frederick MD 21703-7167 www.wrightmfg.com...
