Operator's Manual

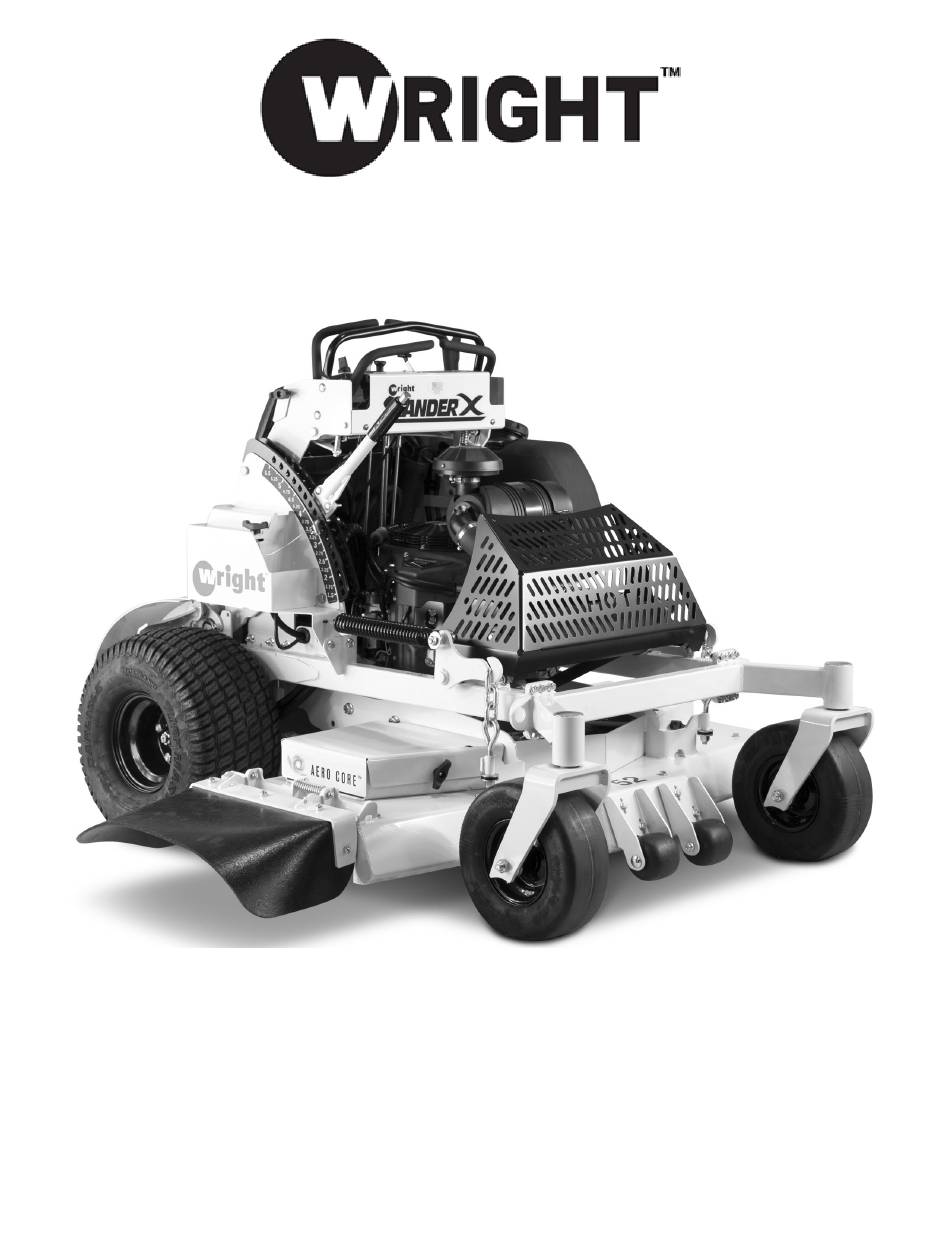

STANDER X
Serial # 114018 and higher until superseded
Revised 03/05/19
P/N 79490219
FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY OR DEATH.
Read this manual and other manuals that came with your mower before operating.
©1998-2019 Wright Manufacturing, Inc. All rights reserved. This material may not be reproduced or copied, in whole or part, without written permission
from Wright Manufacturing, Inc. Grass Gobbler, Gobbler, Leaf Gobbler, Velke, Pro 1, X2, Stander, and Sentar are trademarks of Wright Manufacturing.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STANDER X 79490219 and is the answer not in the manual?

Questions and answers

Summary of Contents for WRIGHT STANDER X 79490219

  • Page 1 Read this manual and other manuals that came with your mower before operating. ©1998-2019 Wright Manufacturing, Inc. All rights reserved. This material may not be reproduced or copied, in whole or part, without written permission from Wright Manufacturing, Inc. Grass Gobbler, Gobbler, Leaf Gobbler, Velke, Pro 1, X2, Stander, and Sentar are trademarks of Wright Manufacturing.
  • Page 2: Table Of Contents

    Operating the Operator Presence Control (OPC) Maintenance Record ..........6-6 Switch ..............5-2 7 WRIGHT MANUFACTURING, INC. POWER How to Stop and Park the Machine ......5-2 EQUIPMENT LIMITED WARRANTY ......7-1 Driving the Machine Over a Curb ......5-2 8 FEDERAL AND CALIFORNIA EMISSION CONTROL Mowing on Varying Terrain ........
  • Page 3: Introduction

    Please read it in its entirety and follow the instructions carefully so that you can have many years of safe and productive operation with your Wright machine. Your Wright dealer knows your machine and is interested in your satisfaction. Your dealer can provide you with quality maintenance and other assistance that you may need.
  • Page 4: New Machine Setup

    2 NEW MACHINE SETUP If you are not completely familiar with the Safety Instruction Manual read it now before proceeding with the Pre-Delivery Service of the mower. The following items must be completed before attempting to operate a newly delivered machine. Inspect the mower for any damage, missing parts, and labels.
  • Page 5: Safety Precautions

    3 SAFETY PRECAUTIONS Important Safety features This machine is capable of amputating hands and The machine is designed with your safety in mind. feet and throwing objects. Failure to observe the It has the following safety systems with which you following safety instructions could result in serious should become familiar: injury or death.
  • Page 6: Operating

    • Remove or mark the location of all immovable • Do not operate the machine faster than objects or irregular areas and be sure not to hit conditions allow. For example, hills, wet or them with any part of the machine. Obstacles bumpy ground, dim light or high grass are all including and not limited to holes, abrupt conditions requiring slower speeds.
  • Page 7: Slope Specific

    attempting to maintain, adjust, service, unjamb, travel across the grade whenever possible, not or service the machine. in an up or down pattern. • Do not put hands or feet near rotating parts or • Reduce speed and exercise extreme caution under the machine.
  • Page 8: Service

    Inspect fuel system for leaks or cracks in hoses, • Use of parts other than specified parts tank(s), and seals. supplied by Wright Manufacturing, Inc. may • Make sure all safety equipment provided compromise the safe use of the machine and with the machine is in good operating order, not recommended.
  • Page 9: Machine Overview

    4 MACHINE OVERVIEW Specifications General Dimensions Engine 48” Deck 52” Deck 61” Deck • See your engine owner’s manual Width, Chute down 74.5” 77.5” 86.5” • Full speed 3600 +/- 50 RPM Width, Chute up 62” 65” 74” • No load/Idle: 1550 RPM Electrical System Length 65”...
  • Page 10: Deck Lift

    Deck Lift The height selector has seventeen (17) different settings, ranging from 1.5” – 5.5” in ¼” increments. To operate, insert detent pin in desired cut height hole, grab deck lift handle and press the top button down with thumb and lower to the selected cut height. Machine Features •...
  • Page 11: Warning, Safety, And Instructional Decals

    Warning, Safety, and Instructional Decals • Specific safety warning decals are located on the equipment near immediate areas of potential hazards. • Keep all safety signs legible - Replace worn, damaged or missing safety decals. • Remove all grease, dirt and debris from safety signs and instructional decals. •...
  • Page 12: Operation

    5 OPERATION Basic Operation: The following procedures are • When practical, remove gas-powered to guide you through the basic operation of the equipment from the truck or trailer and refuel machine. You should be a qualified machine operator the equipment with its wheels on the ground. If according to the safety section of this manual.
  • Page 13: Driving The Machine

    7 seconds. If not, service the OPC choke control knob to open the choke valve. system or contact your local Wright dealer. The Driving the Machine: OPC switch is located directly above the right...
  • Page 14: Mowing On Varying Terrain

    • The technique works the best if you try not to Crossing a Slope Sideways drive backwards at a near 90 degree angle to • Machine has the average amount of weight on the curb. the drive wheels versus the front wheels. •...
  • Page 15: Service And Maintenance

    REMOVE THEM. • Use tires with the tread pattern recommended Perform the tracking adjustment by Wright Mfg., Inc. only. • Keep the drive tire pressure between 18-22 psi. • Higher pressures cause the tires to have less...
  • Page 16: Troubleshoot No-Start Condition

    Troubleshoot No-Start Condition clutch is mechanically worn out of spec and Check that the battery is fully charged. If the must be replaced. A worn clutch may work battery repeatedly dies, check the regulator when cold and not reengage once warm and charge wire going from the regulator to the and the magnetic coil increases electrical starter battery stud.
  • Page 17: Troubleshooting Cut Quality

    Troubleshooting Cut Quality Problem Description Possible Cause Solution Blades not sharp Sharpen blades Blades worn down too far Replace blades When strips of uncut Streaking Engine RPM too low Mow at full throttle grass are left behind Ground Speed too fast Slow down Deck clogged with grass Clean deck...
  • Page 18: Hydraulic System

    Use Mobil 1 15W-50. may occur. The cause of air in the system can be Fuel Evaporation System from a leaking hose pulling in air or after replacing a All Wright Standers need to have this mandatory major component. feature. Fill the reservoir.
  • Page 19: Parking Brake Adjustment

    Parking Brake Adjustment Battery Service To test if the parking brake needs adjustment, inflate tires to the correct pressures. Stop machine on a maximum 17 degree slope and apply the brake. Properly adjusted brakes will prevent the wheels from CALIFORNIA Proposition 65 Warning. turning.
  • Page 20: Engine Manual / Maintenance

    Engine Manual / Maintenance Maintenance Record It is very important that all users of this machine read and understand the engine manufactures Owner’s Manual. This manual contains; safety awareness, emissions, oil change intervals, cleanout intervals, maintenance and warranty information that is critical for the care and safe operation of your engine.
  • Page 21: Wright Manufacturing, Inc. Power Equipment Limited Warranty

    SUPERSEDES ALL PREVIOUS WARRANTIES. EFFECTIVE FOR UNITS RETAILED ON OR AFTER 1/1/2019 Limited Warranty Wright Manufacturing, Inc. (hereinafter: WMI) warrants to the original retail purchaser (Owner) and legitimate successors that any new WMI power equipment unit (Mower) originally accompanied by this warranty with a retail sales date on or after the effective date above will be free from manufacturing defects in materials or workmanship subject to the limitations and exclusions defined below.
  • Page 22 Rental Use The above warranty periods are limited to a maximum of ninety (90) days for power equipment that is used for rental purposes. Other conditions The Mower, including any defective part, must be returned to an Authorized WMI Service Dealer within the warranty period.
  • Page 23: Federal And California Emission Control Warranty Statement

    – 2020 commercial equipment. In the United States and California, new equipment that use small off-road engines must be designed, built, and equipped to meet the State’s stringent anti-smog standards. Wright Manufacturing, Inc. must warrant the emissions control system on your commercial equipment for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system.
  • Page 24 4600 Wedgewood Blvd Ste X Frederick MD 21703-7167 www.wrightmfg.com...
