- Page 1 T-AS SERIES PADDLE FLOW SWITCH USER GUIDE JANUARY 2023 PLEASE READ THE INSTRUCTIONS BEFORE USE! K 607 www.smstork.com...
-
Page 2: Product Description

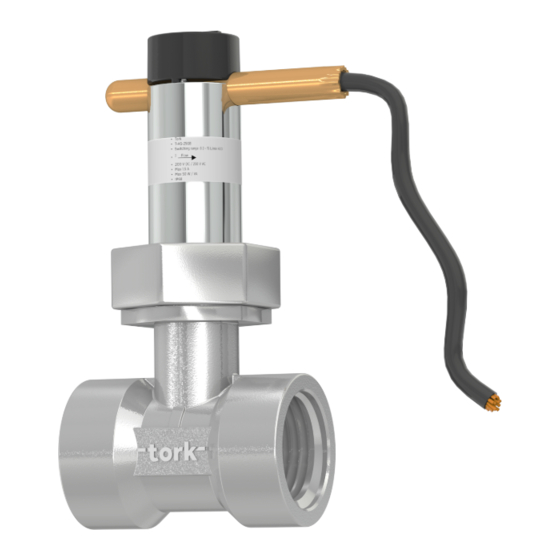

PRODUCT DESCRIPTION Pedal flow switch is a device which is used to create and interrupt electric current in a pipeline to indicate to the end user whether there is flow in a pipeline. Additionally, it is used for monitoring and controlling the flow velocity of the medium. - Page 3 PRODUCT CODING SYSTEM T-AS-10GB SIZE DN10 DN15 DN20 DN25 THREAD TYPE British Pipe BSPP American Pipe NPT MATERIAL Brass Stainless Steel EXPLODED VIEW & MATERIAL LIST Part No Part Name Material Qtty Brass ( nickel coated ) Body O-ring Balance Arm AISI 316 Flat Spring AISI 316...
-
Page 4: Technical Specification
TECHNICAL SPECIFICATION Switch : Reed switch Nominal Size : DN10 - DN15 - DN20 - DN25 Threaded Connection : Female G3/8", G1/2", G3/4", G1" Switching Range : 3.5 ...18 l/min H₂O ( for details see table of ranges in below ) Qmax : to 60 L/min Tolerance... -
Page 5: Product Installation
DIMENSIONS AA32 Weight Product Code T-AS-10GB G3/8" 0.280 T-AS-15GB G1/2" 0.285 T-AS-20GB G3/4" 0.310 T-AS-25GB G1" 0.365 PRODUCT INSTALLATION Before the installation, product and its parts must be controlled. If there is a damage or missing part, product does not be received. Before using the product, label must be controlled if product, label, box and other informations are proper to each other. -
Page 6: Mechanical Connection
MECHANICAL CONNECTION Before installation • Please check if actual flow matches with the switching range on product label. • Ensure that the allowable maximum operating pressure and operating temperature of the product will not be exceeded. • Remove all transport packing and be sure that no packing material is left in the instrument. •... - Page 7 ADJUSTMENT OF SWITCHING POINT To be able to adjust switching point, loosen bolts at the top of the plastic cap and move the contact tube to the required direction by hand until getting contact and then tighten the bolts at the top of the plastic cap again.
-
Page 8: Cleaning Of The Instrument
WARRANTY PERIOD FOR THE PRODUCT The warranty period for the TORK brand Paddle Flow Switches is two years. The maximum repair period is 20 working days. The warranty does not include products if the flow switches are used out of scope of the terms of use specified when ordered from our company or in case of breaks resulted from the user’s fault when the... - Page 9 Head O ce : Bostancı Yolu Cad, Kuru Sok, No16 Y. Dudullu, 34776 Ümran ye / İstanbul-TÜRKİYE P +90 216 364 34 05 F +90 216 364 37 57 Factory P +90 262 290 20 20 F +90 262 290 20 21 : Çerkeşl OSB Mah.
