Tork W100 Installation And Operating Instructions Manual

http://waterheatertimer.org/Tork-timers-and-manuals.html#W-series
SWITCH: SPST

CONTACT RATINGS:

40 AMP TUNGSTEN 120VAC
40 AMP RESISTIVE
120-277VAC SINGLE PHASE
40 AMP GENERAL PURPOSE
120-277VAC SINGLE PHASE
20 AMP INDUCTIVE
120VAC, 277VAC
SINGLE PHASE
1000VA PILOT DUTY
120-277VAC
2 HP (24 FLA) 120VAC;
5HP (28 FLA) 240VAC

TIMING MOTOR :

120VAC 60Hz

POWER CONSUMPTION :

3 WATTS MAX.
Disconnect power at main panel prior to installing or servicing this time switch or
the equipment connected to it.
Connect in accordance with national and local electrical codes.
Supply Connections: Use gauge specified (AWG # 8-14) suitable for 75 degrees C
(167 degrees F)
INSTALLATION AND OPERATING INSTRUCTIONS
TO SET ON AND OFF TIMES: ON and OFF trippers close and
open all circuits simultaneously. Dial is graduated in one hour inter-
vals. There must be an ON and an OFF tripper for each day of the
week operations are desired. Place tripper on dial edge as shown in
diagram. Set point of each tripper at the desired operating time.
Hold tripper securely against dial and tighten knurled screw firmly
by hand. (Do not use pliers).
NOTE: Trippers are inter-changeable. With the knurl screw inserted
in the side marked ON, it will become an ON tripper. If the tripper is
turned over and the screw inserted in the side marked OFF, it
becomes an OFF tripper.
Be certain to select the proper day and notice whether the selected time is AM or PM. Minimum ON
time is 1 hour. Minimum OFF time is 2 hours. (There must be at least six hours between any two
OFF trippers).
TO SET DIAL TO TIME: Turn dial COUNTER-CLOCKWISE until correct time of day and day of week
is indicated by time pointer. For ACCURATE OPERATION, care must be used in setting dial to time.
Each notch advances the dial approximately 15 minutes. DO NOT FORCE DIAL BACKWARDS.
TO OMIT A DAY: Remove both ON and OFF trippers from the dial for the day or days to be omitted.
FOR MANUAL OPERATION OF CONTACTS: Press down lever on right of nameplate to close cir-
cuit. Press down lever on left of nameplate to open it.
LI-598(A)

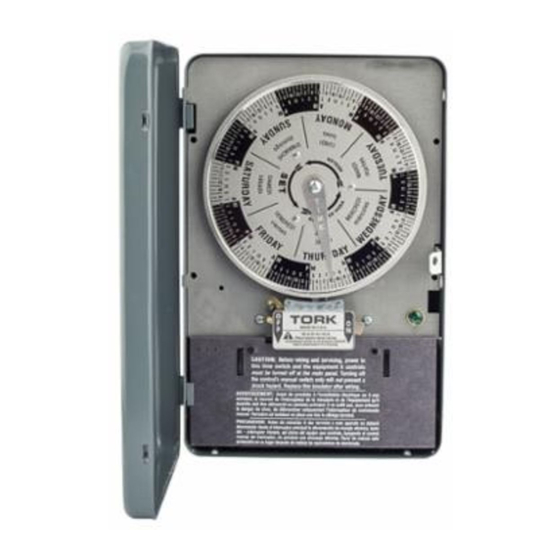

TORK MODEL W100
SEVEN DAY CALENDAR DIAL TIME SWITCH
1 GROVE STREET, MT. VERNON, NY 10550 TEL: 914-664-3542
MOTOR
MOTEUR
L
1 X
H
N

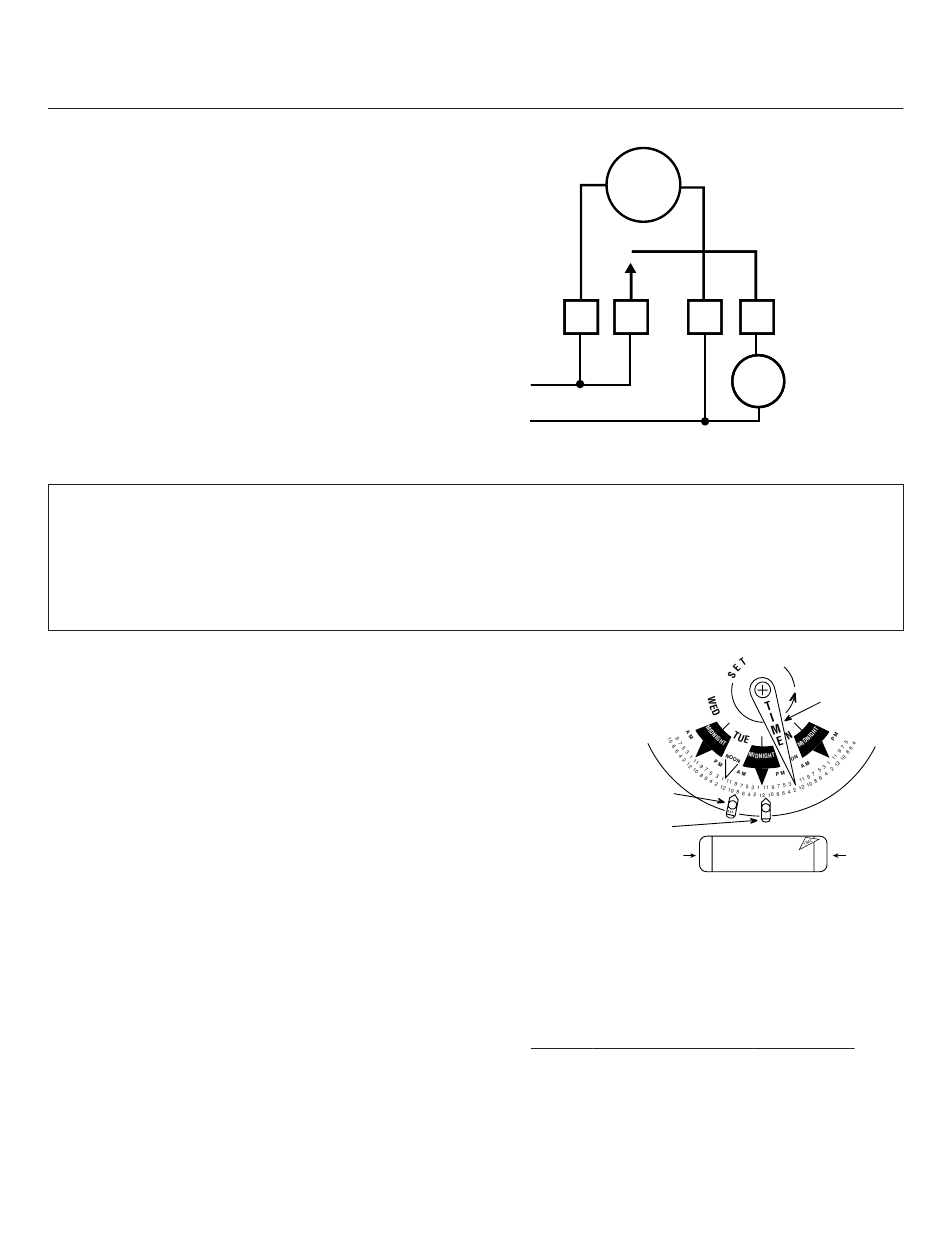

Typical connections for 120VAC
OFF
TRIPPER
ON
TRIPPER
MANUAL
OFF
LEVER
2
LOAD
CHARGE
CARGA
TIME
POINTER
ON
O
O
F
TORK
MANUAL
N
F
ON
LEVER
TORK
FAX: 914-664-5052
®
