Mercia Garden Products 01DTSHRAX0604SDFW-V2 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTSHRAX0604SDFW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTSHRAX0604SDFW-V2

Summary of Contents for Mercia Garden Products 01DTSHRAX0604SDFW-V2

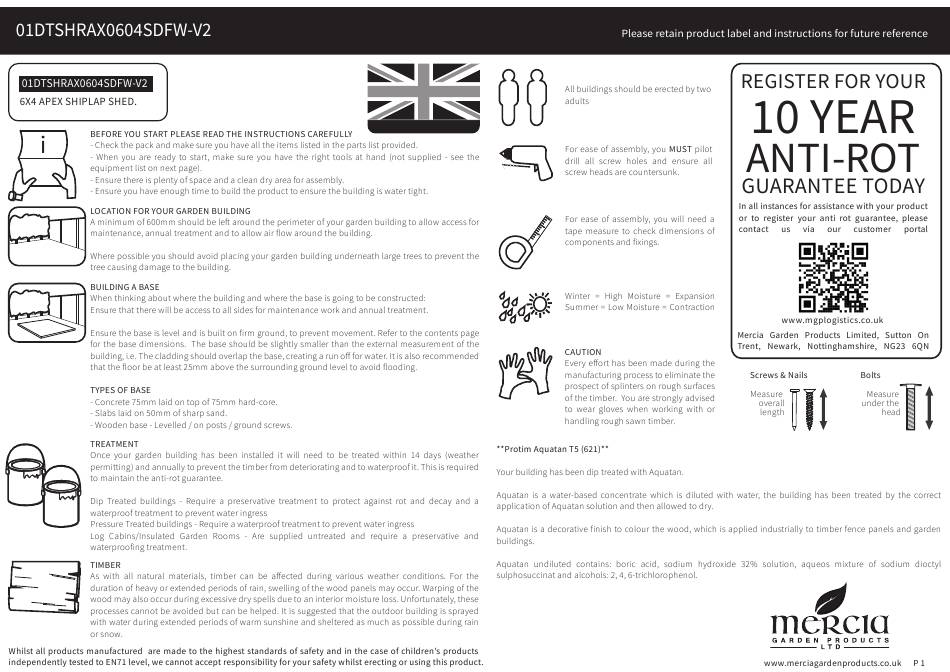

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 01DTSHRAX0604SDFW-V2 End View Overall Dimensions: Door Beading Strip 12x28x1590mm QTY 2 Width = 1314mm S1228-1590mm Depth = 1838mm End View Height = 2174mm Cover Trims 12x40x1792mm QTY6 Base Dimensions: S1240-1792mm Width = 1175mm Depth = 1753mm End View Fascias 12x60x690mm QTY 4 S1260-690mm This building can be built as an Apex (Door on the end) or a Reverse Apex (Door on the side).

  • Page 5: Missing Parts

    Pre Assembly Screw Pack Before assembling remove the transportation blocks from the bottom of each panel. There may be extra screws present in the pack. Take care removing the blocks as to not damage the panels. Tap with a at headed 60mm Screw x 10 30mm Screw x 88 screwdriver and hammer.
  • Page 6 Step 2 Step 3 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 Parts needed - No. 2 (or 1, or 3, or 8) QTY 1 No. 3 (or 8) QTY 1 No.
  • Page 7 Step 5 Step 7 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 8 QTY 1 Parts needed - No. 7 QTY 2 Locate the Window Panel (No. 8) (or panel Place the Gable Tops (No. 7) of your choice) onto the oor, position the central over the end panels.
  • Page 8 Step 9 Step 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 5 QTY 2 Secure the Roofs (No. 5) in place using Place the Roof Panels (No. 5) on top of the building 40mm screws, screwing down through making sure the framing in the roof panels sits rmly the cladding into the panel framing...
  • Page 9 Step 12 Step 13 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 14 QTY 4 Parts needed - No. 22 QTY 1 No. 15 QTY 3 No. 16 QTY 1 Cut the felt (No. 22) into two sheets measuring: No.
  • Page 10 Step 14 Step 16 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 10 QTY 6 Parts needed - No. 9 QTY 2 No. 11 QTY 1 No. 12 QTY 1 Locate the Cover Trims (No. 10) over Use 4x30mm Screws to x the beading each panel join and corner of the strips (No.
  • Page 11 Step 17 Step 19 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 20 QTY 1 Once constructed, apply a preserving Screw the Pad Bolt (No. 20) on to treatment and a waterproo ng treatment the door (No. 4) and the retainer to your garden building as soon as to the door panel (No.
  • Page 12 ANY QUESTIONS? Scan code contact us via our customer portal.
