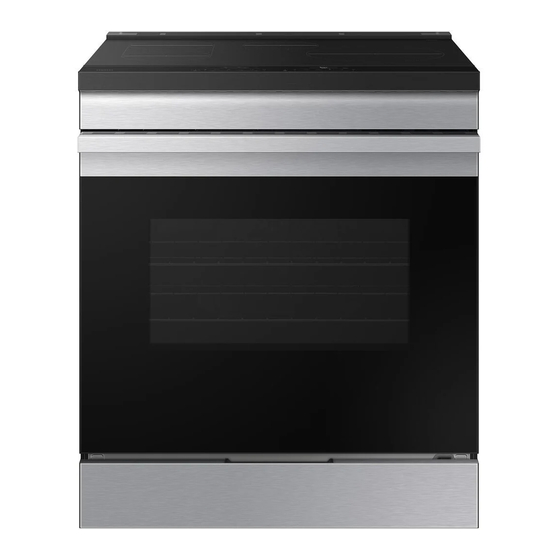

- Page 1 Electric Range User manual NSI6D*93****...
- Page 2 Anti-tip device WARNING WARNING To reduce the risk of tipping the range, the range must be secured by a properly installed Anti-Tip device. Do not step, lean, or sit on the doors of the range. AFTER THE RANGE HAS BEEN INSTALLED, CONFIRM You can cause the range to tip, resulting in burns or THAT THE ANTI-TIP DEVICE HAS BEEN PROPERLY serious injuries.
- Page 3 Regulatory Notice 1. FCC Notice FCC STATEMENT: This equipment has been tested and found to comply CAUTION within the limits for a Class B digital device, pursuant FCC CAUTION: Any changes or modifications not expressly to part 15 of the FCC Rules. These limits are designed approved by the party responsible for compliance could to provide reasonable protection against harmful void the user’s authority to operate the equipment.
- Page 4 Regulatory Notice FCC RADIATION EXPOSURE STATEMENT: IC RADIATION EXPOSURE STATEMENT: This equipment complies with FCC radiation exposure This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This limits set forth for an uncontrolled environment. This equipment equipment should be installed and operated so there is should be installed and operated so there is at least 8 inches at least 8 inches (20 cm) between the radiator and your...
-
Page 5: Table Of Contents
Contents Important safety instructions Operating the oven What you need to know about safety instructions The control panel California Proposition 65 Warning Lock For your safety Display mode Induction cooktop elements Clock Electrical safety Oven cooking Child safety Cooking mode Oven Using the oven racks Remote Operation... -
Page 6: Important Safety Instructions
Make sure the machine is grounded to prevent electric shock. installing, maintaining, and operating your oven. Call a Samsung service center for help. Important safety symbols and precautions Note What the icons and signs in this user manual mean: These warning signs are here to prevent injury to you and others. -
Page 7: For Your Safety
FOR YOUR SAFETY • Do not enter the oven. • Do not store items of interest to children in cabinets When using electrical appliances, you should follow basic above the range or on the back guard of the range. safety precautions, including the following: Children climbing on the range to reach items could be CAUTION seriously injured. - Page 8 Important safety instructions • If there is a fire in the oven during self-cleaning, • Use only dry potholders. Placing moist or damp turn the oven off and wait for the fire to go out. Do potholders on hot surfaces may result in burns from not force the door open.
-
Page 9: Induction Cooktop Elements
INDUCTION COOKTOP ELEMENTS • Never leave surface elements unattended at high heat settings - Boilovers cause smoking and greasy spillovers that • Be sure you know which touch control operates each surface may ignite. A pan that has boiled dry may melt. heating unit. -
Page 10: Electrical Safety
• Ensure that the appliance is switched off before If your appliance is in need of repair, contact a replacing the lamp to avoid the possibility of electric Samsung authorized service center. Failure to follow shock. these instructions may result in damage and void the •... -
Page 11: Child Safety
CHILD SAFETY OVEN • DO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR WARNING SURFACES OF THE OVEN. Heating elements may be hot • This appliance is not intended for use by young children even though they are dark in color. Interior surfaces or infirm persons without the adequate supervision of a of an oven become hot enough to cause burns. -
Page 12: Remote Operation
Important safety instructions • Use care when opening the door. Let hot air or steam • During use, the appliance becomes hot. Care should be escape before you remove food from or put food into taken to avoid touching heating elements inside the the oven. -
Page 13: Self-Cleaning Ovens
SELF-CLEANING OVENS • Before operating the self-clean cycle, wipe grease and food soils from the oven. Excessive amounts of grease Do not clean the door gasket. The door gasket is may ignite, leading to smoke damage to your home. essential for a good seal. Care should be taken not to •... -
Page 14: Glass/Ceramic Cooking Surfaces
Important safety instructions GLASS/CERAMIC COOKING SURFACES CRITICAL INSTALLATION WARNINGS • DO NOT TOUCH SURFACE UNITS OR AREAS NEAR WARNING UNITS. • This appliance must be installed by a qualified technician Surface units may be hot even though they are dark or service company. -
Page 15: Critical Usage Warning
• If the appliance is flooded by any liquid, please contact problems with the product. your nearest Samsung service center. Failing to do so • Do not cut or remove the ground prong from the power may result in electric shock or fire. - Page 16 • Do not touch the power cord with wet hands. there is dangerous voltage inside. If the oven needs - This may result in electric shock. to be repaired, contact an authorized Samsung service • Do not turn the appliance off while an operation is in center near you.
- Page 17 - This may result in fire. these holes, contact your product provider or nearest • Do not open the door when the food in the oven is Samsung service center. burning. • Do not tamper with or make any adjustments or - If you open the door, it causes an inflow of oxygen repairs to the door.
-
Page 18: Usage Cautions
- If the door is damaged, do not use the appliance. • Dishes and containers can become hot. Handle with care. Contact a Samsung service center. • Hot foods and steam can cause burns. Carefully remove • Do not hold food in your bare hands during or container coverings, directing the steam away from your immediately after cooking. - Page 19 • Take care when heating liquids, such as water or other • Do not put your face or body close to the appliance while beverages. cooking or when opening the door just after cooking. - Make sure to stir during or after cooking. - Take care that children do not come too close to the - Avoid using a slippery container with a narrow neck.
-
Page 20: Critical Cleaning Warnings
Important safety instructions CRITICAL CLEANING WARNINGS • Do not use sealed containers. Remove seals and lids before cooking. Sealed containers can explode due to the CAUTION build up of pressure even after the oven has been turned off. • Do not clean the appliance by spraying water •... -
Page 21: Introducing Your New Range
Wire racks (2) * Air Fry tray (1) * (US model only) NOTE If you need an extra accessory marked with a *, you can buy it from the Samsung Contact Center (1-800-726-7864). 01 Control panel 02 Vent 03 Oven door (See page 23 for more information.) -
Page 22: Before You Begin
Before you begin Before you begin Surface cooking Clean the oven thoroughly before using it for the first time. Then, remove the About induction cooktop cooking accessories, set the oven to bake, and then run the oven at 400 °F for 1 hour. There will be a distinctive odor. - Page 23 • Do not use the induction range to dry clothes. Location of the induction cooktop elements and controls • Never store flammable materials such as aerosols and detergents in the drawer The induction control knobs operate the induction surface elements on the cooktop or cupboards under the induction cooktop.
-
Page 24: How To Set The Appliance For Cooktop Cooking
Surface cooking How to set the appliance for cooktop cooking A. To use the Power boost setting, tap the Boost. CAUTION • The cooktop elements may be hot even when off and burns can occur. Do not touch the cooktop elements until they have cooled down sufficiently. •... -
Page 25: Sync Control
Sync control Before using the cooktop You can use Sync control to operate and control the two elements on the left Use quality cookware in good condition side simultaneously, as a single cooking zone, and then use the zone for large cookware. -
Page 26: Cookware For Induction Cooking Zones
Surface cooking Cookware for induction cooking zones CORRECT INCORRECT The Induction element can only be turned on when cookware with a magnetic base is placed on one of the cooking zones. You can use the cookware identified as suitable below. Curved or warped pan bottoms or Flat pan bottom &... -
Page 27: Using The Correct Size Cookware
Using the correct size cookware Operating noises • The Induction Cooking Zones require that you use pots and pans of a minimum You may hear the following operational noises: size or larger at each location. The inner ring of each Cooking Zone is your •... -
Page 28: Temperature Detection
Surface cooking Better pans produce better results Temperature detection • You can recognize good pots and pans by their bases. The base should be as If for any reason the temperatures on any of the cooking zones exceeds the safety thick and flat as possible. -
Page 29: Suggested Settings For Cooking Specific Foods
Suggested settings for cooking specific foods Protecting the cooktop The figures in the table below are guidelines. The power settings required for Cleaning various cooking methods depend on a number of variables, including the quality of the cookware being used, the type, and amount of food being cooked. •... -
Page 30: Operating The Oven
Operating the oven Operating the oven The control panel Lock This feature lets you lock Cooktop controls, Oven controls, and Oven door so they cannot be activated accidentally. How to activate the Lock feature 1-1. To set the lock for cooktop control buttons, Tap and hold for 3 seconds on... -
Page 31: Display Mode
Display mode Clock You must set the clock correctly to ensure the automatic features work properly. Sleep mode This product supports two time formats: 12-hour (default) and 24-hour. The control panel enters Sleep mode if the oven is not used for a while. To set the clock In Sleep mode, the control panel is inactive, displaying only the time, until it is reactivated by the user. -
Page 32: Oven Cooking
Operating the oven Oven cooking Cooking mode STEP 1 • Make sure to close the door before you start cooking. Put all ingredients in a heat-safe container. • If you leave the door open for about 2 minutes while the oven is in convection baking/roasting, baking, or broiling modes, the oven heating element will shut off. -
Page 33: Using The Oven Racks
Using the oven racks Download Temperature Default Cooking Set Cook Time Delay Start Your oven range comes with 2 racks and 7 rack positions. The rack positions are range (°F) temperature (°F) Mode delineated by rack guides which support the racks. Each rack guide has a stop that prevents the rack from loosening during the oven's operation. - Page 34 Operating the oven Inserting and removing an oven rack Rack and Pan placement Centering the baking pans in the oven as To insert an oven rack much as possible will produce better results. 1. Place the rear end of the rack on a rack If baking with more than one pan, place the guide.
-
Page 35: Recipe Guide
Before using the racks Recipe guide The oven has two racks. CAUTION Each rack has stops that need to be placed correctly on the supports. These stops will keep the rack from coming completely out. Always use this cooking mode with the oven door closed. - Page 36 Operating the oven Convection cooking • Ideal for foods being cooked using multiple racks. The convection fan at the back of the oven circulates hot air evenly throughout the • Good for large quantities of food. oven cavities so that food is evenly cooked and browned in less time than with •...
- Page 37 Broiling Broiling guide Broiling uses the oven broil burner at the top of the oven to cook and brown food. NOTE Meat or fish must be put on a broiling grid in a broiling pan. Preheating for For reference only. 4 minutes before broiling is recommended.
- Page 38 Operating the oven Air Fry CAUTION This feature uses hot air for crispier and healthier frozen or fresh foods without, or • Foods that are high in fat will smoke when using the Air Fry model, such as less oil, than normal convection modes. For best results, use this mode on a single chicken wings, bacon, sausage and turkey legs.
- Page 39 Amount Time Amount Time Item Temperature (°F) Tips Item Temperature (°F) Tips (oz) (min) (oz) (min) Frozen Potato Poultry 30 - 35 425 - 450 20 - 25 Wedges Fresh Brush with 3 tbsp of oil. 35 - 45 425 - 450 30 - 35 Drumsticks Add salt and pepper to...
-
Page 40: Cooking Options
Operating the oven Dehydrate Cooking options Dehydrate dries food or removes moisture from food via heat circulation. After CAUTION drying the food, keep it in a cool and dry place. For fruit, adding lemon (or pineapple) juice or sprinkling sugar on the fruit helps the fruit retain sweetness. Food that can easily spoil, such as milk, eggs, fish, poultry, and meat, should be chilled in a refrigerator before they are placed in the oven. -
Page 41: More Functions
Delay Start More functions The Delay Start function lets you use the kitchen timer to automatically start Tap and hold 3 seconds on the control panel, and then use the drag and stop another cooking program. You can set Delay Start so that it delays the slider to change various settings for your oven. - Page 42 Operating the oven Oven settings Setting Description Setting Description Set the clock to display the time in the 12-hour or Use 24-hr format 24-hour format. Set the timer. The timer gives you an extra timer you Timer can use to time cooking tasks, such as boiling eggs. Set the clock to display the current date and time.
-
Page 43: Smart Control
Smart control To control the oven remotely 1. Tap Smart Control appears in the display. The oven can now be controlled remotely with a connected remote device. How to connect the oven 2. Select the oven icon on the SmartThings app to open the Oven Control app. 1. -
Page 44: Voice Control
Bixby Use this option only for baking on the Jewish Sabbath and Holidays. • Bixby is the name of Samsung's artificial intelligence solution that makes it For more information, visit the website at http://www.star-k.org possible to control the product by voice. - Page 45 To enable the Sabbath feature CAUTION • Do not attempt to activate any other functions except for Bake when the Sabbath feature is on. Only the following functions will function properly: Bake, Oven Start/Set, and Oven Off. • Do not open the oven door or change the oven temperature for about 30 minutes after you have started the Sabbath feature.
-
Page 46: Maintaining Your Appliance
Maintaining your appliance Self-cleaning Before a self-cleaning cycle This self-cleaning oven uses high temperatures (well above cooking temperatures) • We recommend venting your kitchen to burn off leftover grease and residue completely or reduce them to a finely with an open window or using a powdered ash that you can wipe away with a damp cloth. - Page 47 How to run a self-cleaning cycle How to turn off the self-cleaning feature 1. Make sure the oven door is closed completely and unlocked. Turn off all oven You may find it necessary to stop or interrupt a self-cleaning cycle due to smoke in and cooktop functions.
-
Page 48: Steam-Cleaning
Maintaining your appliance Steam-cleaning NOTE If you select Steam Clean when the oven temperature is above 100˚F, Hot will appear in the display. Because this function produces the best results when started How to set the oven for steam-cleaning while the oven is cool, we recommend that you wait until the oven has cooled For light cleaning, the steam-cleaning function saves time and energy. -
Page 49: Care And Cleaning Of The Oven
Care and cleaning of the oven Cleaning painted parts and decorative trim • For general cleaning, use a cloth with hot, soapy water. WARNING • For more difficult residue and built-up grease, apply a liquid detergent directly onto the area and leave for 30 to 60 minutes. Wipe with a damp cloth and dry. •... - Page 50 Maintaining your appliance Air Fry tray Drawer Handle To keep the Air Fry tray clean, remove them from the cavity, and soak them in Remove dust with soft brush or soft cloth covered with water. Lukewarm soapy water. Then, scour soil off of the Air Fry tray using a plastic CAUTION scouring pad.
-
Page 51: Care And Cleaning Of The Glass Cooktop
Care and cleaning of the glass cooktop Removing heavy, burned-on residue 1. Allow the cooktop to cool. Normal daily use cleaning 2. Use a single-edge razor-blade scraper at approximately a 45° angle against Use only a ceramic cooktop cleaner. Other creams may not be as effective. the glass surface and scrape the soil. -
Page 52: Removing And Reinstalling The Oven Door
Maintaining your appliance Cleaning the cooktop seal Removing and reinstalling the oven door To clean the seal around the edges of the glass, lay a wet cloth on it for a few How to remove the door minutes, then wipe clean with a nonabrasive CAUTION cleaner. - Page 53 5. Lift door up and out until the hinge arm Hinge lock Hinge lock is clear of the slot (Fig. 2). Unlocked position Unlocked position Locked position Locked position Fig. 2 3. Open the door fully. If the door will not open fully, the indentation is not inserted correctly in the bottom edge of the slot.
-
Page 54: Removing And Reinstalling The Storage Drawer
Maintaining your appliance Removing and reinstalling the storage drawer Changing the oven light The oven light is a standard 40-watt appliance bulb. It will come on when the oven 1. Slide open the drawer until it stops. door is open. When the oven door is closed, tap the pad to turn it on or off. -
Page 55: Troubleshooting
Troubleshooting Troubleshooting CONTROL DISPLAY Samsung works hard to ensure that you don’t have problems with your new Problem Possible cause Solution electric range. If you run into unexpected trouble, look first for a solution in the The display goes A fuse in your home may Replace the fuse or reset tables below. - Page 56 Troubleshooting Problem Possible cause Solution Problem Possible cause Solution The surface unit The element will cycle on This is normal operation, Brown streaks or Boilovers have been cooked • Wait until the surface frequently cycles and off to maintain the and not a system failure.
- Page 57 OVEN Problem Possible cause Solution The oven The oven controls have not Refer to the section on using Problem Possible cause Solution smokes been set properly. the broiler starting on page The oven will The range is not completely Make sure the electrical excessively not turn on.
- Page 58 Troubleshooting Problem Possible cause Solution Problem Possible cause Solution Food does not The serving size may not be Refer to the cooking guide for Excessive There is excessive soiling in Tap Stop. Open the windows broil properly. appropriate. serving sizes on page 37, and smoking during the oven.
-
Page 59: Information Codes
Information codes Problem Possible cause Solution Strong odor. An odor coming from the Operate the oven empty on OVEN insulation around the inside the bake setting at 400 °F for of the oven is normal for the 1 hour. Displayed first few times the oven is Possible cause Solution... - Page 60 Troubleshooting COOKTOP Displayed Possible cause Solution code Displayed code Possible cause Solution The sub PCB sensor is open Tap Stop, and then restart the when the oven is operating. Power Off, and then Power C-22 oven. If the problem persists, On to the setting you There is a short in the sub PCB disconnect all power to the...
-
Page 61: Warranty (U.s.a)
If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. - Page 62 During the applicable warranty period, a product will be repaired, replaced, or EXCLUSION OF IMPLIED WARRANTIES the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF new or reconditioned parts in repairing a product, or replace the product with MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO a new or reconditioned product.
-
Page 63: Warranty (Canada)
Warranty (CANADA) PLEASE DO NOT DISCARD. THIS PAGE REPLACES THE WARRANTY PAGE IN THE SAMSUNG will repair or replace this product, at our option and at no charge USE & CARE GUIDE as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. -
Page 64: Appendix
DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. - Page 65 Memo...
- Page 66 * Requires reader to be installed on your smartphone Scan this with your smartphone Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. QUESTIONS OR COMMENTS?
