HYC50 - Operation and Installation Guide
Version 2-2
Operation and Installation Guide
hypercharger HYC50
(50 kW)
Rapid charging system for electric vehicles
for HW version 7
All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the hypercharger HYC50 and is the answer not in the manual?

Questions and answers

Related Manuals for Alpitronic hypercharger HYC50

Summary of Contents for Alpitronic hypercharger HYC50

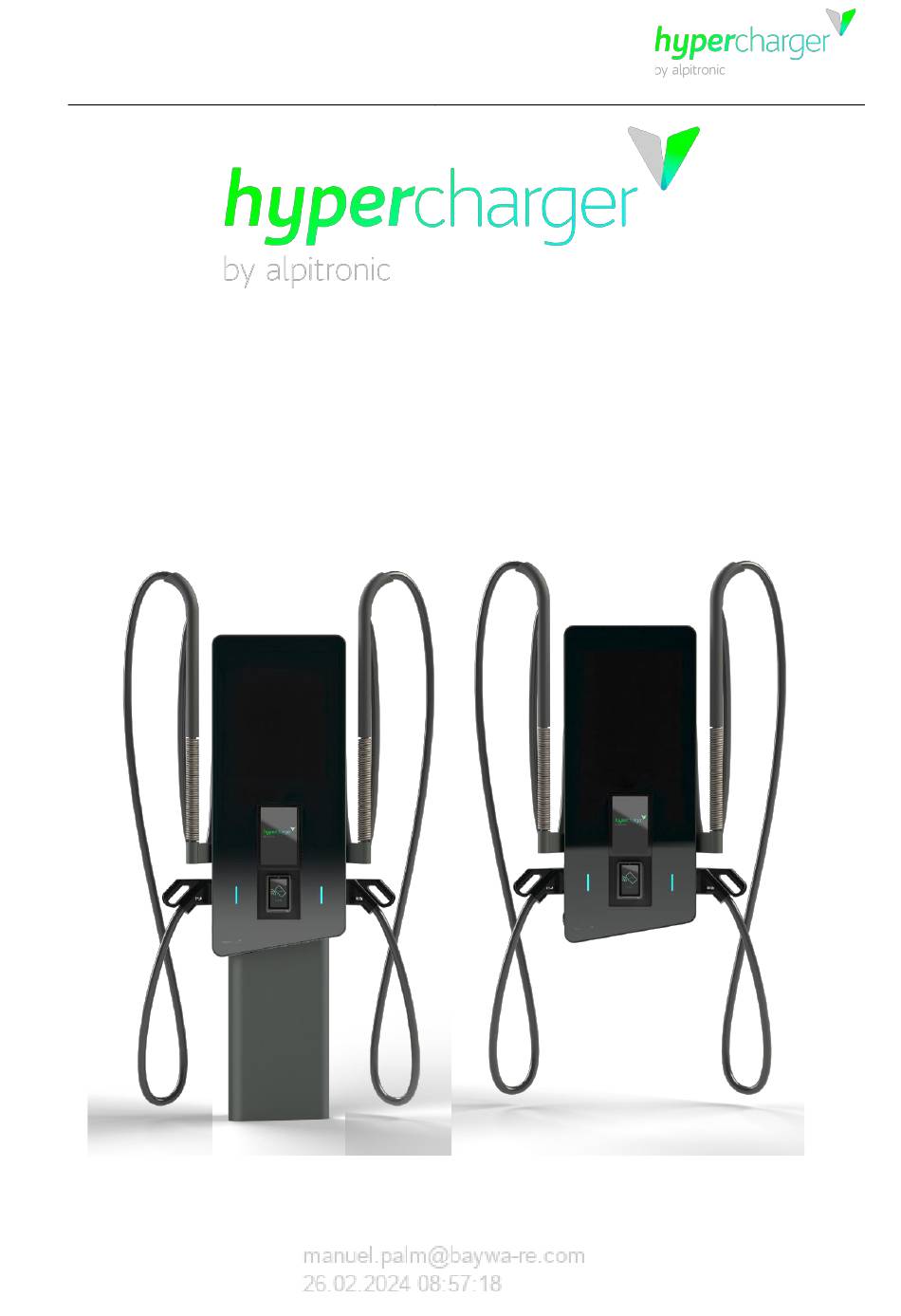

  • Page 1 HYC50 - Operation and Installation Guide Version 2-2 Operation and Installation Guide hypercharger HYC50 (50 kW) Rapid charging system for electric vehicles for HW version 7 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 3 HYC50 - Operation and Installation Guide Version 2-2 Contents This page is intentionally left blank. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 4 Via di Mezzo ai Piani, 33 39100 Bolzano (BZ) ITALY Tel.: +39 0471 1961 333 Fax: +39 0471 1961 451 Homepage: http://www.hypercharger.it E-Mail: support@hypercharger.it All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 5 For charging stations that have been equipped in accordance with the applicable country-specific measurement and calibration laws, further documentation is available on hyperdoc. It is mandatory to observe this documentation. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 6: Table Of Contents

    Charging overview ..................79 6.3. Stop charging ......................84 6.3.1. Wake up screen ....................84 6.3.2. Charging stop ....................84 6.4. Procedure for error messages ................87 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 7 8. Preventive Maintenance ....................93 9. Reparation and service ....................95 Disposal ......................... 96 Technical data ......................97 Declaration of Conformity ..................99 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 8: Table Of Figures

    Figure 48: Attach protective conductor ................65 Figure 49: Third attachment point ..................66 Figure 50: Attach touch protection ..................67 Figure 51: Authentication screen ..................72 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 9 Figure 68: Charging plug defective ...................88 Figure 69: Error establishing communication ..............89 Figure 70: Plug lock failed ....................90 Figure 71: Vehicle error ....................91 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 10: List Of Tables

    Table 15: No-load power dissipation at 400 Vac according to display brightness ....98 Table 16: Frequency bands and transmission power of the HYC50 ........98 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 11 HYC50 - Operation and Installation Guide Version 2-2 Contents This page is intentionally left blank. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 13: Safety Instructions

    The following requirements apply to installation, commissioning and maintenance. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 14: Requirements For Installation, Commissioning And Maintenance

    Sufficient ESD measures to protect the electronic components should be taken during assembly and maintenance (e.g. wearing a grounding wristband). All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 15 Please note that there is a risk of crushing when assembling, disassembling, repairing or replacing components. If necessary, use suitable safety gloves. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 16 For a detailed description, please refer to the corresponding replacement instructions. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 17: Product Description

    E DIN EN 61851-23:2018-03 (VDE 0122-2-3:2018-03). The HYC50 housing comes standard in "Noir 2100". The front panel can be adapted to individual branding. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 18: Figure 1: Hyc50 With One Dc Charging Cable (Position 1 And 2)

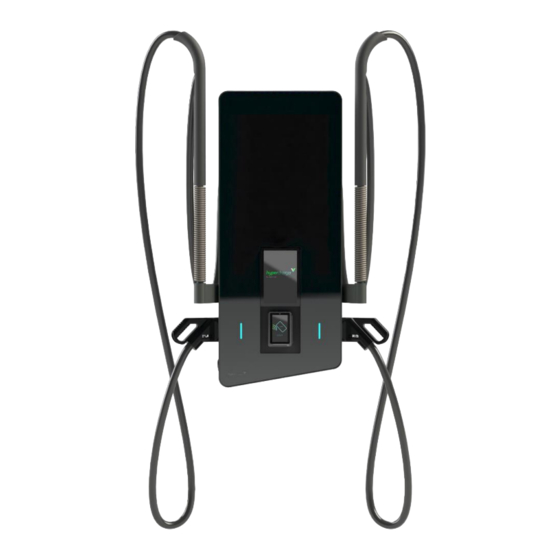

    DC charging cables. Figure 1: HYC50 with one DC charging cable (position 1 and 2) Figure 2: HYC50 with two DC charging cables All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 19: Figure 3: Order Of The Charging Points Hyc50

    Figure 3: Order of the charging points HYC50 Notice Customs tariff number of the HYC50: 85044060 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 20: Charging Interfaces

    Charging cable 1 (left) Charging cable 2 (right) CCS1/2 CCS1/2 CCS1/2 CCS1/2 CHAdeMO CCS1/2 CHAdeMO Table 2: Possible combinations of charging interfaces All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 21: Figure 4: Dc Power Characteristics In Different Configurations

    • 125A CHAdeMO cable • 150A CCS1 cable • 150A CCS2 cable Figure 4: DC power characteristics in different configurations All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 22: Figure 5: Cable Length For The Two Dc Outputs Of The Hyc50 With A 4.45 M Cable

    Please make sure that there are no sharp-edged corners near the charging cable, so that the insulation of the charging cable is not damaged and proper functioning is guaranteed. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 23: Exterior View

    Air intake Air outlet Display / HMI Credit card terminal (optional) Cable plug holder 1 Cable plug holder 2 RFID-reader Nameplate All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 24: Figure 7: External Dimensions Of Hyc50 With Pedestal Incl. Cable Management (In Mm)

    Figure 7: External dimensions of HYC50 with pedestal incl. cable management (in mm) Figure 8: External dimensions of HYC50 for wall mounting incl. cable management (in mm) All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 25: Nameplate

    Depending on the configuration of the charging station, the following nameplate (as an example) can be found on the device. Figure 9: Example of a nameplate for hypercharger HYC50 (without calibration law) All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 26: Opening The Hyc50

    • Centre the insert in the opening until it clicks into place. Figure 10: Service hatch for access to the HYC50 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 27: Figure 11: Front Door Locking Mechanism

    Before closing the service hatch, ensure that all protective covers are in place and the front door is properly locked. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 28: Interior View

    Figure 12 and Figure 13 show the interior of the HYC50 from the frontal and lateral perspectives. Figure 12: Interior view of HYC50 (frontal view) All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 29: Figure 13: Interior View Of Hyc50 (Lateral View)

    HYC50 - Operation and Installation Guide Version 2-2 2 Product description Page 29 of 102 Figure 13: Interior view of HYC50 (lateral view) All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 30: Table 3: Components Hyc50

    DC charging port on the right (depending on configuration) -XF1 Ethernet network connection (client LAN + service) -XF2 Ethernet network connection (credit card terminal) Table 3: Components HYC50 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 31: Credit Card Terminal (Optional)

    If the models you want are not yet supported, the technical requirements can be checked. At the discretion of alpitronic, new models may be implemented on a project basis. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 32: Packaging, Transportation, Storage And Handling

    Number of charging cables (4.5 m) c*15.7 + d*17.3 <145 c: Cable management d: Wall mount plate Table 4: HYC50 shipping weight and dimensions All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 33 -40 °C and +55 °C. Take special care when unpacking with knives. HYC50 or other components could be damaged. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 34: Hyc50 Installation And Commissioning

    The warranty claim can expire if installation & commissioning are not carried out properly. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 35: Location Preparation

    Note the cable radius Figure 5). The ground conditions should be as flat and level as possible in the areas shown. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 36: Figure 15: Recommended And Mandatory Minimum Distances When Choosing A Location

    Notice The outlet temperature of the charger's cooling air flow can reach temperatures of up to 75 °C. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 37: Mechanical Installation Of The Pedestal

    (sales@hypercharger.it). This measures 60 x 60 x 94 cm and weighs approx. 440 kg. Figure 16: hypercharger concrete foundation (dimensions in cm) All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 38: Figure 17: Eyebolts For Lifting And Positioning The Foundation

    The foundation must be lifted with a suitable lifting device. The foundation must be backfilled up to the lower edge of the base. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 39: Figure 18: Hyc50 On A Concrete Foundation

    HYC50 - Operation and Installation Guide Version 2-2 4 HYC50 installation and commissioning Page 39 of 102 Figure 18: HYC50 on a concrete foundation All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 40: Mounting The Pedestal

    (4x M12) (see Figure 20). For this purpose, separate foundation bases are offered as an option. Notice Tighten the screws with a torque wrench (70 Nm). Figure 19: Positioning pedestal on foundation All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 41: Figure 20: Mounting The Hyc50 Pedestal

    If you want to pass the mains cable through the pedestal from the back, remove the bottom cover (red mark, Figure 21) Figure 21: Remove the pedestal cover All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 42: Mechanical Installation Of The Wall Mount Plate

    1808 mm from the floor. Figure 22: Installation height (barrier-free) All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 43: Figure 23: Wall Template

    To attach the mounting plate to the wall, M6 screws / dowels with a length of 65 mm are recommended, these should be attached at the four marking points (see Figure 23). All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 44: Electrical Installation

    HYC50 according to the technical data in chapter 11. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 45: Circuit Diagram For The Hyc50

    4.4.1. Circuit diagram for the HYC50 Figure 24 shows the circuit diagram of the HYC50. Figure 24: Circuit diagram for the HYC50 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 46: Table 5: Circuit Diagram Legend For The Hyc50

    Ethernet network connection (client LAN + service) -XF2 Ethernet network connection (credit card terminal) Table 5: Circuit diagram legend for the HYC50 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 47: Preparing The Mains Cable

    A environments. Any external signals that can be connected as an option may only be designed and connected as SELV signals. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 48: Table 6: Recommended Connection Cross-Sections

    IP54. Due to the design of the AC grid connection box, this can only be achieved if the supply line is designed as a sheathed cable. Cabling with individual wires is not permitted. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 49: Installing The Mains Cable In The Ac Grid Connection Box

    (see Figure 25). Notice Tighten the screws with a torque wrench (2.5 Nm). Figure 25: Attach the AC grid connection box All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 50: Figure 26: Removal Of Cable Fixation And Protective Cover

    Take the mains cable seal (see Figure 27). Cut the seal to size and attach it to the mains cable with the narrow side facing up. Figure 27: Install mains cable seal All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 51: Figure 28: Correct Length Phases And Pe Conductors

    Cut the mains connection cables so that the individual phases and the protective conductor have the correct length (see Figure 28). Figure 28: Correct length phases and PE conductors All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 52: Figure 29: Secure Mains Cable With Strain Relief

    Ensure that the overall insulation of the mains cable ends above the mains cable seal. Figure 29: Secure mains cable with strain relief All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 53: Figure 30: Attachment Of Cable Terminals

    (L1, L2, L3, PE) using cable terminals. The flexible cable is always on top. Notice Tighten the screw with a torque wrench (9 Nm). Figure 30: Attachment of cable terminals All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 54: Figure 31: Mounting Of Protective Cover Via Pe Cable Terminal

    PE connection (3x M4x8) (see Figure 31). Notice Tighten the screws with a torque wrench (0.7 Nm). Figure 31: Mounting of protective cover via PE cable terminal All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 55: Figure 32: Fix Phases With Cable Fixation

    (2x M4x40). Notice Tighten the screws with a torque wrench (1.2 Nm). Figure 32: Fix phases with cable fixation All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 56: Figure 33: Lead The Flexible Cable Through The Opening And Fix The Cover

    Tighten the screws with a torque wrench (4 Nm). Figure 33: Lead the flexible cable through the opening and fix the cover All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 57: Mounting The Hyc50 And Connecting To The Mains

    Place the charging cables and cable management (if applicable) on the respective sides of the HYC50 and free the surface of the HYC50 from its protective cover. Figure 35: Unpack the HYC50 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 58: Figure 36: Mounting Aid Hyc50

    If the alpitronic mounting aid is used, insert it into the opening on the upper part of the pedestal or wall mount plate. Figure 37: Use mounting aid All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 59: Figure 38: Position Spacer

    HYC50 upwards on the chain of the mounting aid. Figure 39: Pre-assembled adapter plate on the HYC50 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 60: Figure 40: Suspension And Cable Entry Hyc50

    Do not start loosening the hook and removing the mounting aid until both bolts are securely engaged to prevent the HYC50 from falling down. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 61: Figure 41: Pull Off Mounting Aid

    Remove the two stickers above the openings on the right and left on the lower rear of the HYC50. Figure 42: Remove stickers All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 62: Figure 43: Insert Connection Cables

    Insert the plastic cover into the opening on the upper part of the pedestal or wall mount plate. Figure 45: Insert plastic cover All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 63: Figure 46: First (Right) And Second (Left) Attachment Point

    (2x M4x18). Notice Tighten the screws with a torque wrench (4 Nm). Figure 46: First (right) and second (left) attachment point All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 64: Figure 47: Fasten Three Phases In The Main Switch

    Notice Tighten the screws with a torque wrench (5 Nm). Figure 47: Fasten three phases in the main switch All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 65: Figure 48: Attach Protective Conductor

    Fasten the PE mains connection cable (marked yellow-green with cable lug) to the housing with a nut (1x M6). Notice Tighten the screw with a torque wrench (10 Nm). Figure 48: Attach protective conductor All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 66: Figure 49: Third Attachment Point

    "Extensive step-by-step installation guide" available on the hyperdoc document platform. Tighten the screw with a torque wrench (4 Nm). Figure 49: Third attachment point All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 67: Overvoltage Protection

    TT network. This means that the charging station can be installed in LPZ zone 0 The connection to a suitable grounding system must be guaranteed, taking into account country-specific legal regulations. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 68: Checks Before Switching On For The First Time

    The requirements of IEC 60364-4-41, Section 411 must be met Requirements for low- The requirements of IEC 60364-7-722 must be met voltage systems Table 7: Checks before commissioning All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 69: Commissioning

    In order to be able to use the contractually defined warranty period, the corresponding digital commissioning protocol must be completed on hyperdoc and sent to alpitronic. For hyperdoc registration: https://account.hypercharger.it/register All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 70: Table 8: Checks To Be Carried Out During Commissioning

    (if available) Adhesive seal • Detached display units relevant to calibration law Table 8: Checks to be carried out during commissioning All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 71: Diagnosis And Parameterisation

    Table 9: Default IP address of the HYC50 Notice Further information on the web interface is given in the HYC50 software manual. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 72: Operation Of The Hyc50

    An overview of user guidance for each authentication option is available at Figure 53. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 73 NFC = "Near Field Communication" VID = "Vehicle Identification Device" EVCCID = “Electric Vehicle Communication Controller Identifier” EMAID = "E-Mobility Account Identifier" All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 74 Page 74 of 102 6 Operation of the HYC50 Figure 52: Overview of authentication options Figure 53: Overview of user guidance per authentication option All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 75 In this case you can directly start a new charging process by pressing the button below the "New Session" text on the screen. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 76: Selection Of Charging Plug

    Tap on the corresponding menu item (see Figure 55) to get to the language selection and set another language if necessary. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 77 HYC50 - Operation and Installation Guide Version 2-2 6 Operation of the HYC50 Page 77 of 102 Figure 56: Language selection All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 78: Plug In The Charging Cable

    Figure 57: Plug in the charging cable Notice With CHAdeMO cables, make sure that they snap into place correctly. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 79: During The Charging Process

    Current SoC of the vehicle in % • Voltage (V) • Charge current (A) • Energy already charged (kWh) • Charging time (hh:mm:ss) All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 80 If you would like additional information about the charging process, tap on the "Detail" menu item. An overview including the charging curve appears below. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 81 Note that the displays may vary from operator to operator. Certain station operators hide certain information. In this case, you can check the charging status in your vehicle. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 82 It is possible to charge two vehicles at the same time. If a vehicle is already charging, you can select the free charging cable after you have successfully authenticated yourself. Figure 61: Charge second vehicle All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 83 Figure 62: Charging overview with two active charging processes To get to the respective charging overview, click on the corresponding menu item "Detail". All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 84: Stop Charging

    In the lower area of the charging overview, you always have the option of ending the charging process with "Stop". Figure 63: Charging stop All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 85 You will need to re-authenticate to complete the charging process. Figure 64: Authentication to end the charging session Figure 65: Stop charging process All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 86 Plug it back into the designated cable plug holder on the charging station. Figure 66: Unplug the charging cable All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 87: Procedure For Error Messages

    6.4. Procedure for error messages 6.4.1. Authentication failed Figure 67: Authentication failed If this error message appears, restart the authentication process. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 88: Charging Plug Defective

    If this message appears, the operator is already informed about the defect and will rectify the error as soon as possible. In the meantime, switch to a different charging plug (if possible). All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 89: Error Establishing Communication

    If that does not work, try moving the vehicle back and forth a little to wake it up from a possible standby. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 90: Plug Lock Failed

    In this case, the plug could not be locked correctly. Hold the cable to the socket with your hand until you hear the car's locking mechanism and the charging process starts. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 91: The Vehicle Signals An Error

    Notice If you have any further questions or problems, please contact the station operator! All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 92: Error Description And Correction

    Table 10: Error description and correction Warning Observe all safety instructions in chapter 1. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 93: Preventive Maintenance

    Check the cleanliness inside the charging station Check condensation Check for the absence of traces of condensation inside the charging station All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 94: Table 11: Annual Maintenance Work

    For hyperdoc registration: https://account.hypercharger.it/register The warranty claim can expire if the maintenance work is not carried out properly. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 95: Reparation And Service

    To order spare parts, contact aftersales@hypercharger.it. hypercharger support is available around the clock (24/7) by phone on +39 0471 1961 333 or by email (support@hypercharger.it). All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 96: Disposal

    Notice For more information, please contact hypercharger support or contact a dedicated WEEE Advisory Service directly. All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 97: Technical Data

    The full performance potential is not guaranteed at every temperature and altitude. Type Width (mm] Height [mm] Depth [mm] Weight [kg] HYC50 1300 117-165 kg Table 13: Mechanical data All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 98: Table 14: Electrical Connection Data Hyc50

    LTE FDD B1, B3, B7, B8, B20, B28 23 dBm GSM 900 33 dBm GSM 1800 30 dBm Table 16: Frequency bands and transmission power of the HYC50 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

  • Page 99: Declaration Of Conformity

    HYC50 - Operation and Installation Guide Version 2-2 12 Declaration of Conformity Page 99 of 102 Declaration of Conformity All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 100 HYC50 - Operation and Installation Guide Version 2-2 Page 100 of 102 12 Declaration of Conformity All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 101 HYC50 - Operation and Installation Guide Version 2-2 12 Declaration of Conformity Page 101 of 102 All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
  • Page 102 HYC50 - Operation and Installation Guide Version 2-2 Page 102 of 102 12 Declaration of Conformity All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

Table of Contents

Save PDF
